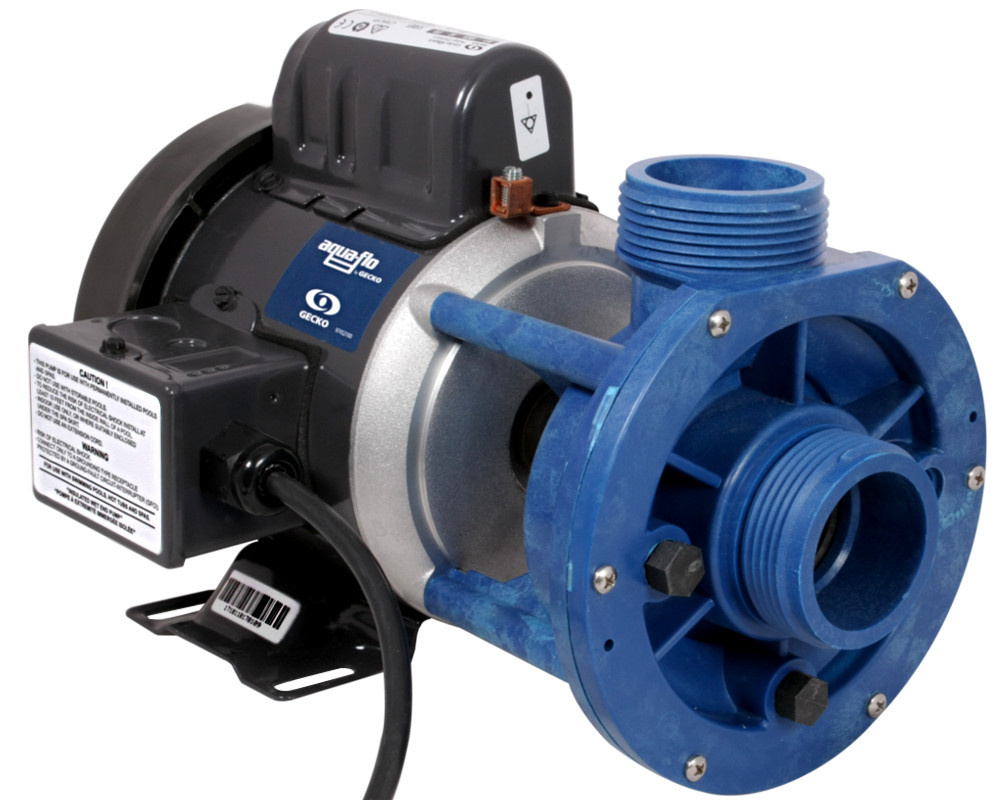

Aqua-Flo Circ-Master CP pump
The wet end of the Aqua-Flo Circ-Master CP (CMCP) pump has a return (outflow) that is centrally positioned, directly above the suction connection, unlike its cousin the Circ-Master HP (CMHP), which has a return to the side. Both pumps use the same motor: an Emerson US Motor 1/15 HP.

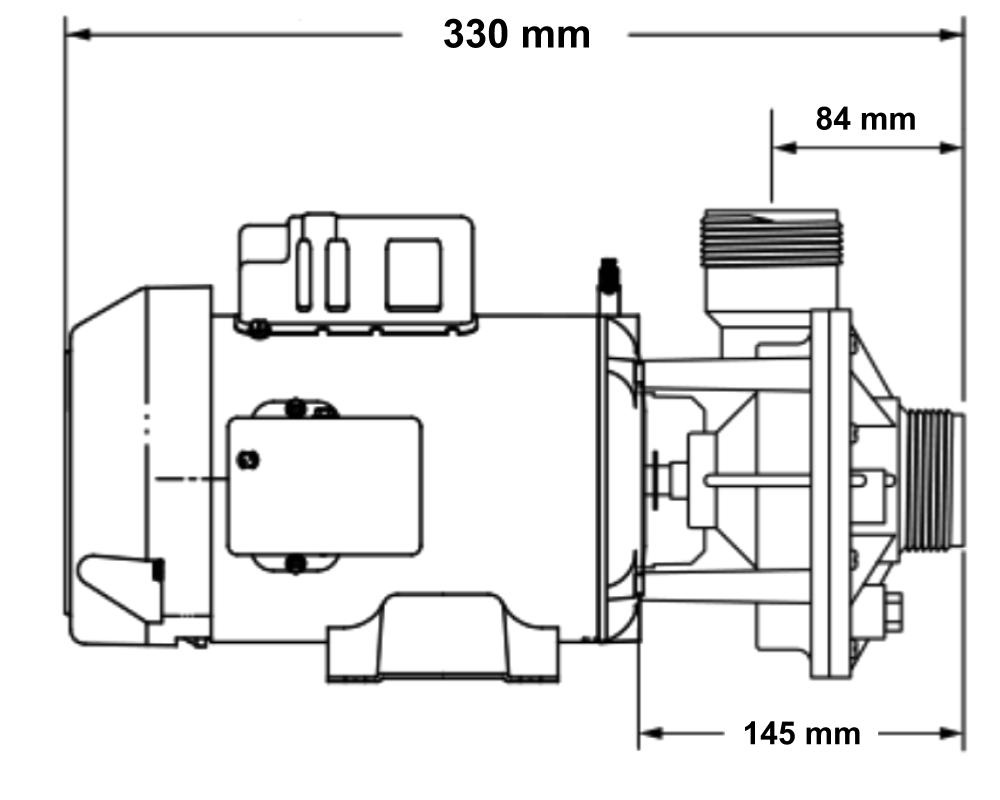

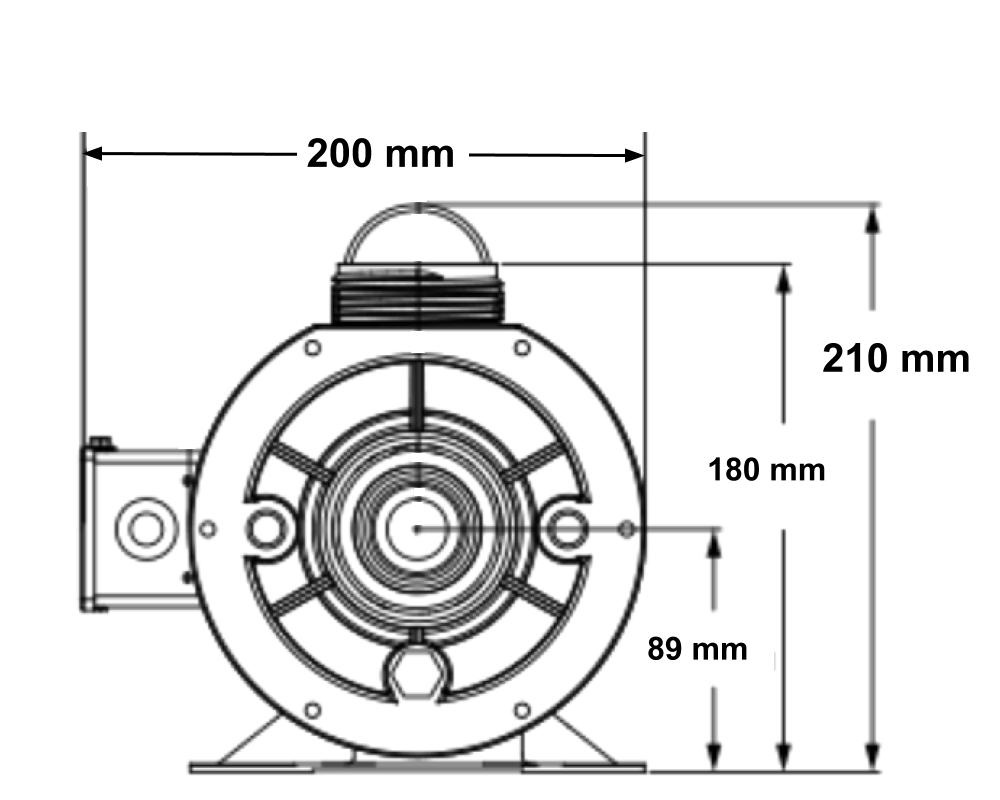

Dimensions
Length: 330 mm
Width: 200 mm
Height: 210 mm
Technical specifications

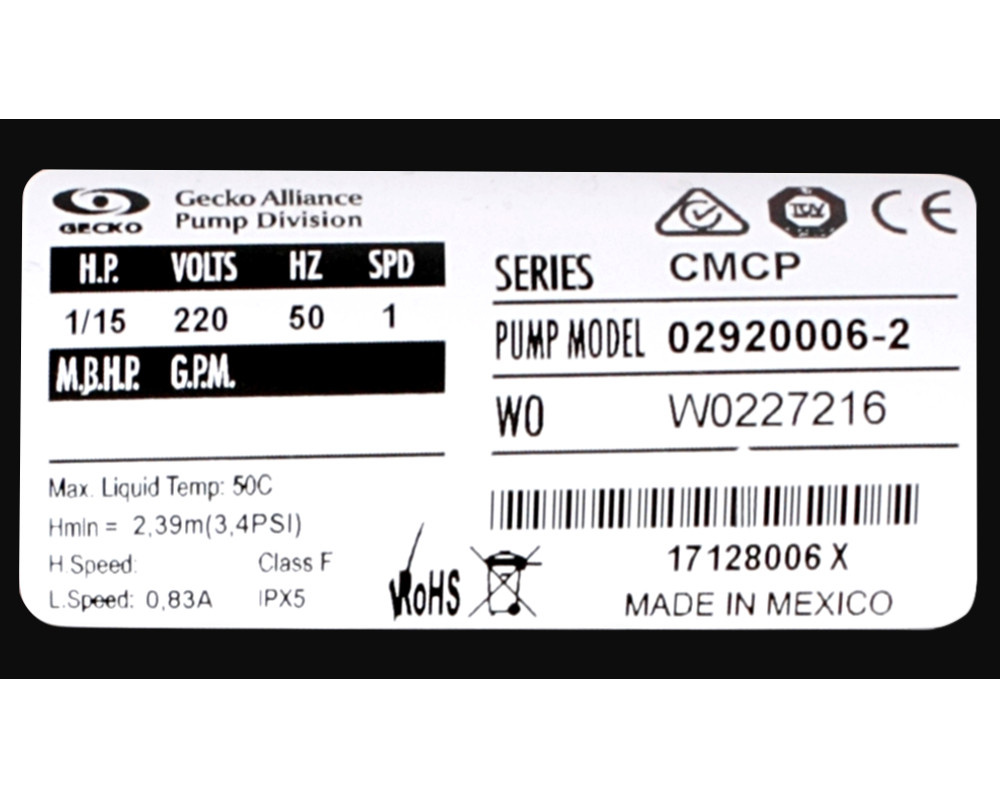

Power: Approximately 140W (1/15 HP according to the motor plate)
Speed: 1425 rpm
Maximum flow rate: 150 litres/minute
Pipe connections
Threaded male connectors with an outside diameter of 62 mm (1.5" MBT thread). Unions are available for 1,5" (48 mm) pipe.
Cable and plug
The pump is supplied pre-cabled with an AMP plug (length 210 cm). You can also have it pre-cabled by our team with a mini J&J plug.
Spare parts
We have a wide range of spare parts for this pump in stock.
Warranty
2-year Tubs Parts warranty
Part numbers
Aqua-Flo: 02593657-2, 02920006-2010 (CMCP)
Sunrise Spas: R5021352
This very popular pump is used by many brands of spas under different part numbers, listed below. Some models have been replaced over the years, resulting in a change in the design of the wet end and therefore the pipe connection. Check your pump to be replaced with this model, or contact us.
02093001-2010 | 02093001-2 | 02093002-2 | 02093003-2 | 02093004-2 |
02093006-2 | 02093012-2 Green | 02093466-2 | 02093634-2 | 02093639-2 |
02093646-2 | 02093649-2 | 02093658-2 | 02093670-2 | 02093678-2 |
02093 | 02093695-2 | 02093759-2 | 02096281-2 | 02407670-2 |
02408492-2510 | 02410388-2 | 02410512-2 | 02410701-2 | 1-00-0204 |
14154 | 34-402-1140 | 6500-907 | 6000-907 |
Wet end orientation
Standard exit
Exit to left
Exit to right
Plug types
AMP plug
J&J plug
in.link plug
