Aqua-Flo Circ-Master XP pump

This circulation pump is installed on many spas manufactured by Sundance Spas, Jacuzzi, Wellis and Aquavia, among others.

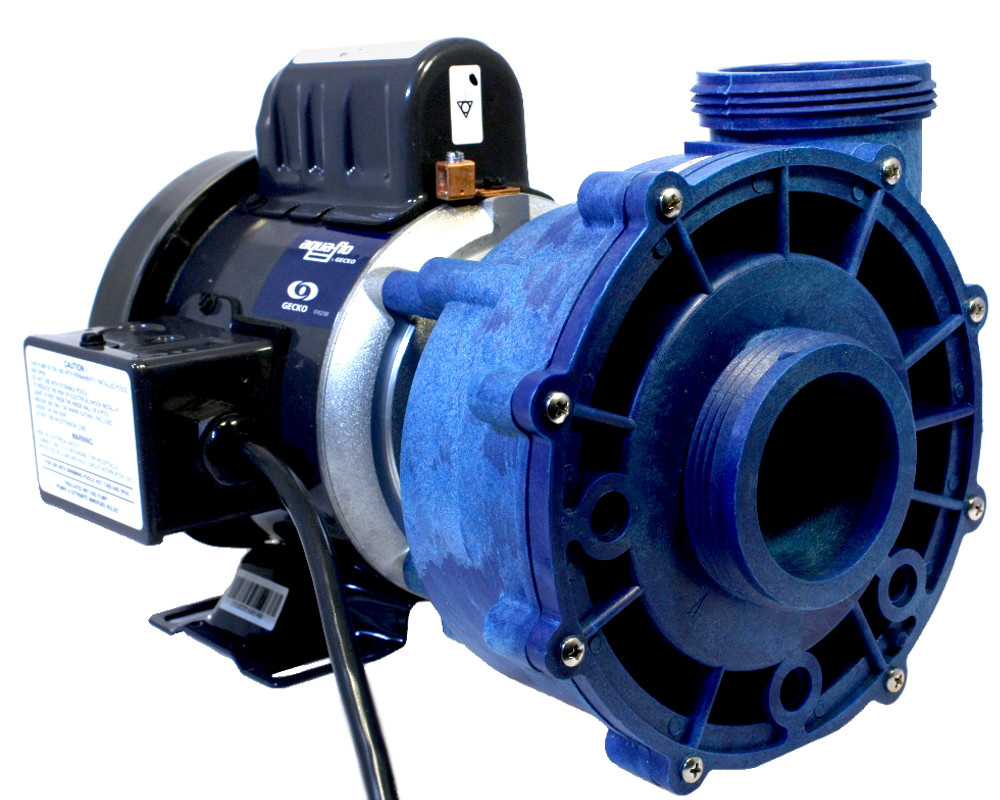

The new version has a blue wet end, as per the photo, but it's an exact replacement for the older, black version, which is still much more common.

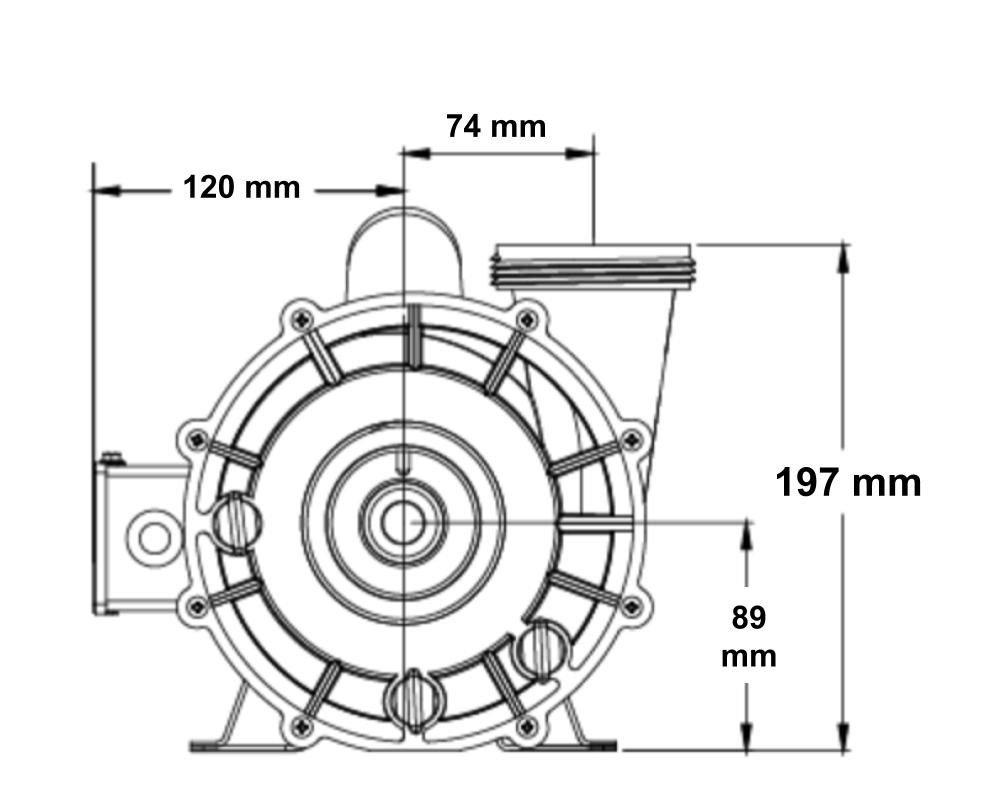

Dimensions
Length: 310 mm
Maximum width: 220 mm
Maximum height: 212 mm

Technical specifications
Power: Between 140 W and 195 W, depending on the version.
The motor plaque says 1/15HP.
Speed: 1425 rpm
Maximum flow rate: 250 litres/minute

Plumbing connections
Thread diameter: 78 mm (2-inch MBT)
We offer unions for 2-inch, 1.5-inch and 63 mm pipe

Cable and plug
The Aqua-Flo CMXP pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have it pre-cabled by our team with an AMP plug, a mini J&J plug.

Similar pump
The LX Whirlpool WTC50M-C is a good option to replace this Aqua-Flo pump. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Sundance Spas / Jacuzzi: 6500-911
Emerson / US Motor (motor only): 9352-9303 ou 9352-9304
Wellis: ACM0841
Gecko: Several different part numbers, including 06334000-2040, 06040000
Other part numbers: K55MYKHF-9557
