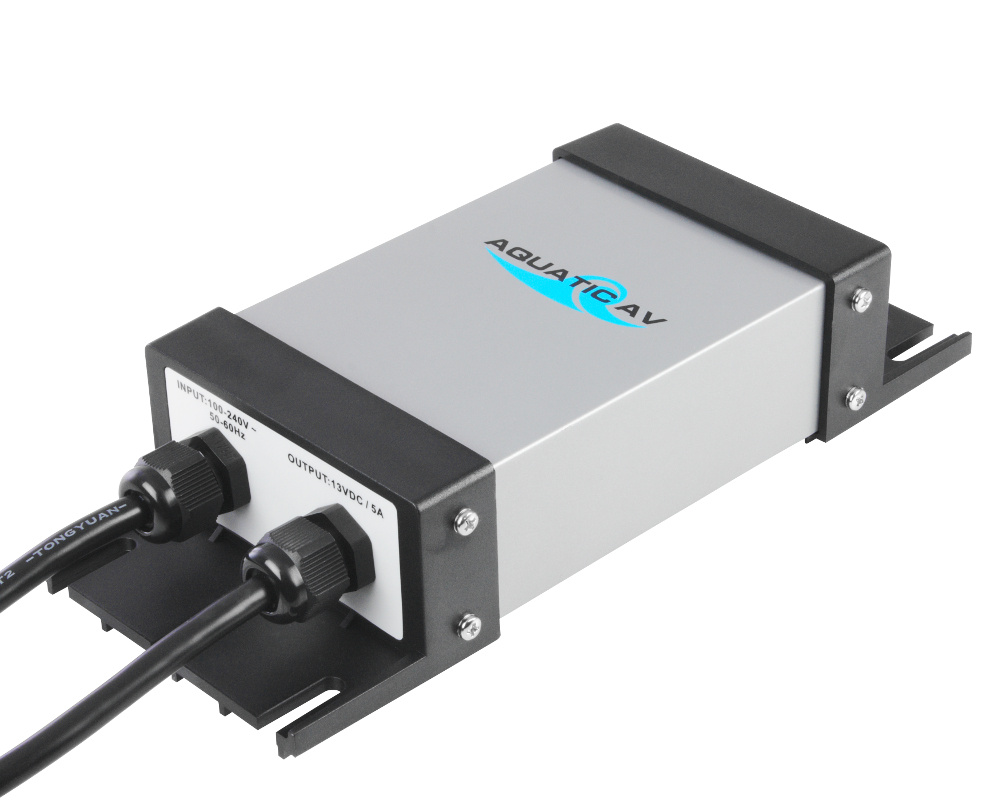

Aquatic AV power supply

The Aquatic AV power supply is designed to be used in spas and can connect to any control system with a 230V AMP 4-pin output (Balboa or Waterway for example), or directly to a 230V household outlet.

It can be found on spas manufactured by Sunrise Spas, Wellis, Aquavia and Clearwater Spas, among others.

Its 13V DC output allows an amplifier or an active subwoofer to be powered via a wire harness. Several speakers and/or a passive subwoofer can then be connected to the wire harness.

Technical specifications
Input Voltage: 240V AC (power input auto sensing/switching)
Output Voltage: 13V DC regulated
Input Current: 1.7 A
Output Current : 5 A
Input Frequency : 50/60 Hz

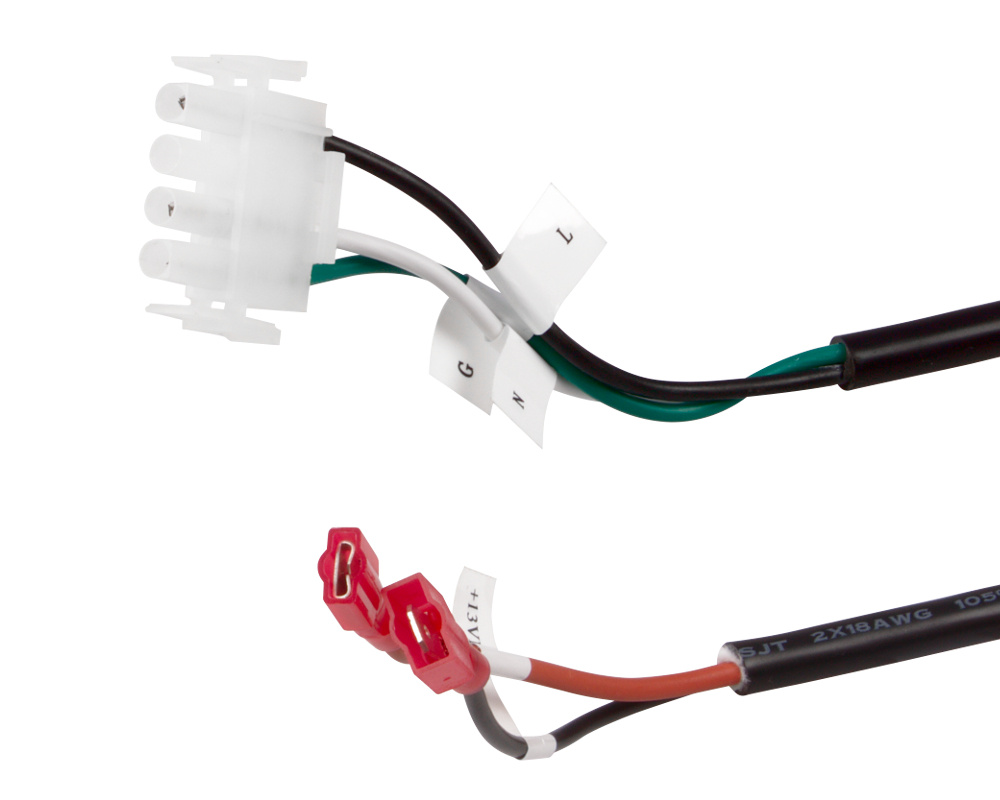

Input plug : 4-pin AMP
Output Plug : 2 spade red connectors (female + male)
Waterproof : IPx5
Certifications : UL1563 class2, UL1310, CSA, CE

Dimensions
Box: 235 x 110 x 52 mm
AMP cable length: 150 cm
2 red connectors cable length: 140 cm

Warranty
2-year Tubs Parts warranty

Part numbers
Aquatic AV: AQ-PSB-1
Sunrise Spas: R6028339
