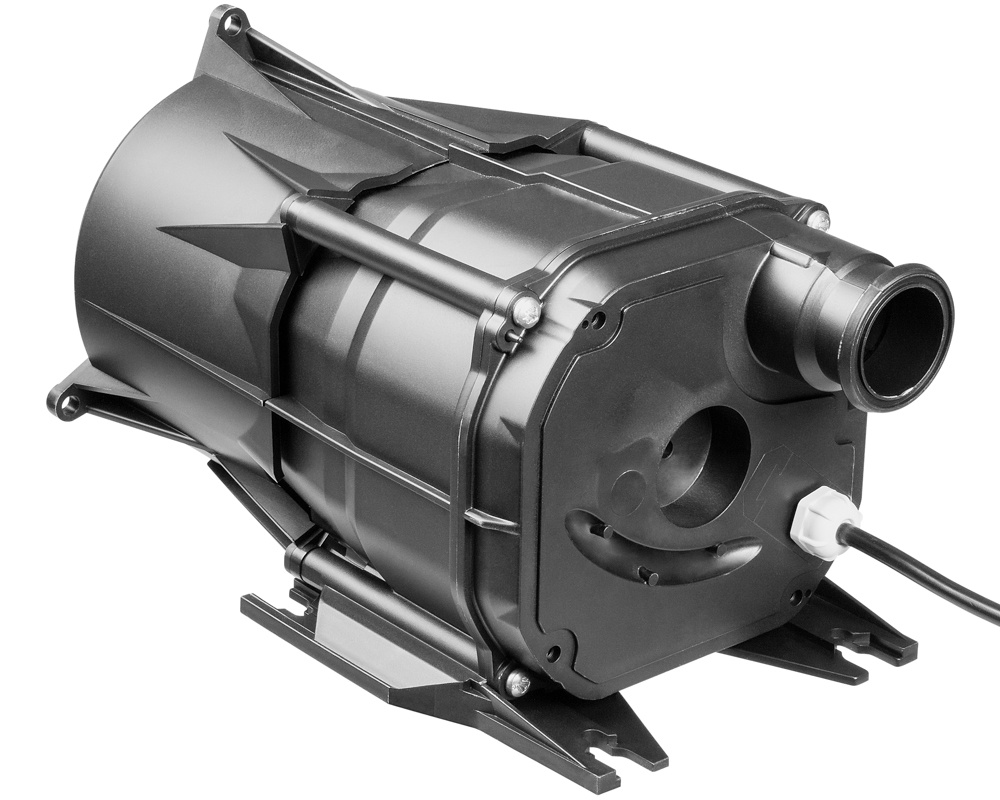

ASD Aerio A-900 blower with heater
The ultra compact A-900 heated blower from French brand ASD delivers 900W of power, and can be used in most residential spas and hot tubs. It is used in many Aquamarine spas.
We also offer the A-900 in its standard version and with a power of 700W (with or without heating).
The Aerio series replaces the ASD-Sirem V, VSA, VR and VRSA series models, which have been discontinued since 2011.
To prevent water from flooding the blower, the air pipe between the blower and the spa must include a loop that passes over the water level, and one or two check valves. If water has entered your old blower, be sure to check the check valve and replace it if necessary.
This blower is compatible with most whirlpools and spas for personal use. It is not suitable for commercial use.
Technical specifications
Power : 900W (+300W heater)
Voltage : 220V

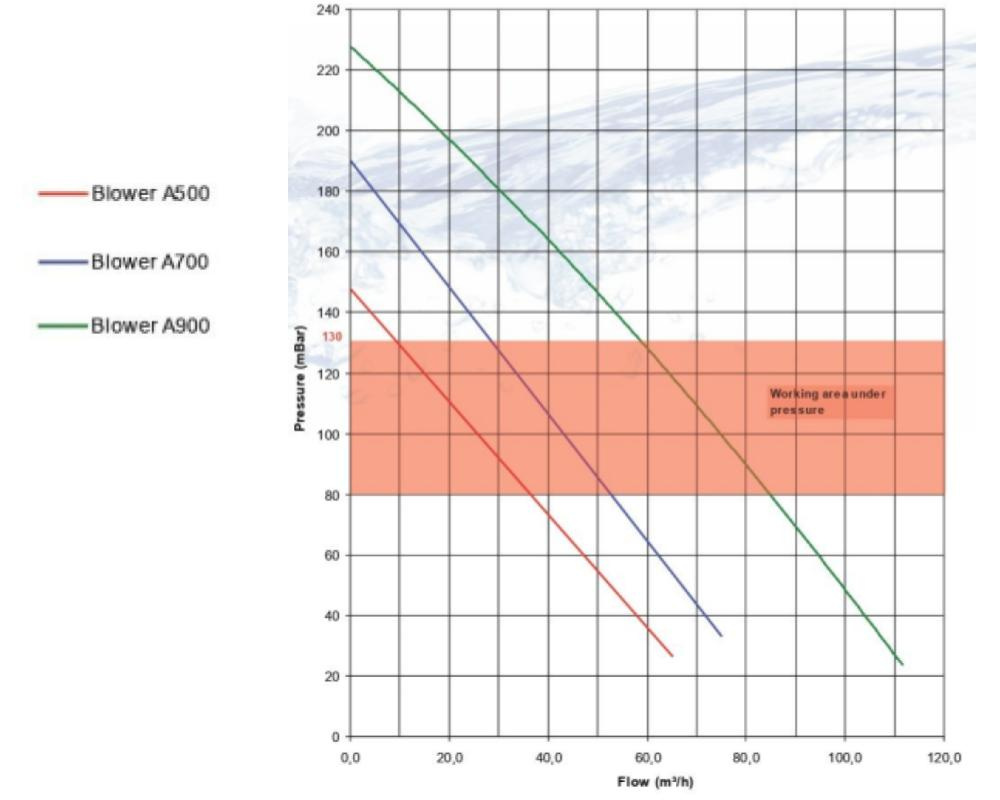

High flow : 85 m³/h to 80 mBar
Noise level : <69.5 DBA to 80mBAR
Can be used in vertical or horizontal position
Dimensions
Length: 270 mm
Width: 153 mm
Height: 141 mm
The A-900 blower connects to a 32 mm hose with a fitting (available separately if required). We advise you to keep the fitting (straight or tee), nut and gasket from your ASD blower to replace.
Cable and plug
This blower is available pre-cabled without plug. You can also have it pre-cabled with an AMP plug
An AMP to mini J&J adapter is available.
Warranty
2-year Tubs Parts warranty
Note that the 2-year warranty does not apply to the carbon brush, also known as a motor brush, a graphite bonding agent that conducts the electrical current between stationary and rotating wires inside the motor. The carbon brush is a wearing part with a life expectancy of approximately 1500 hours.
Part numbers
ASD (Aqua System Design) : 0090100500-HTR
