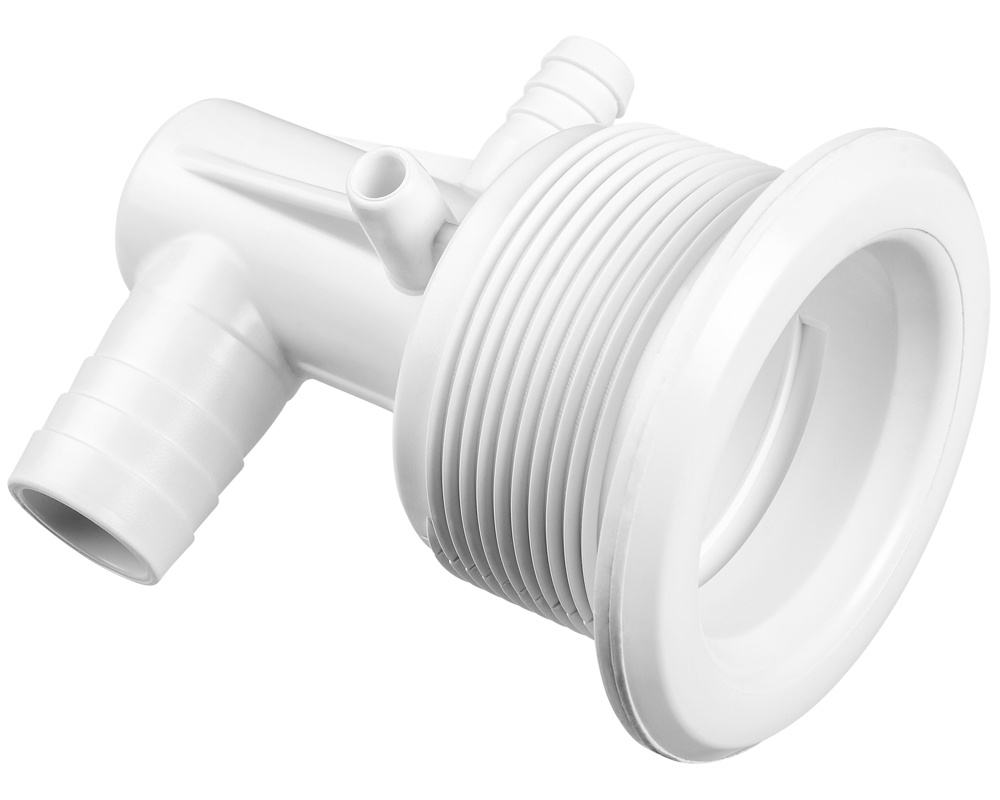

Balboa 3.5" jet socket

This Balboa jet socket is compatible with the brand's 3.5" jet range. The socket fits into the wall of the shell, and the jet screws into the socket.

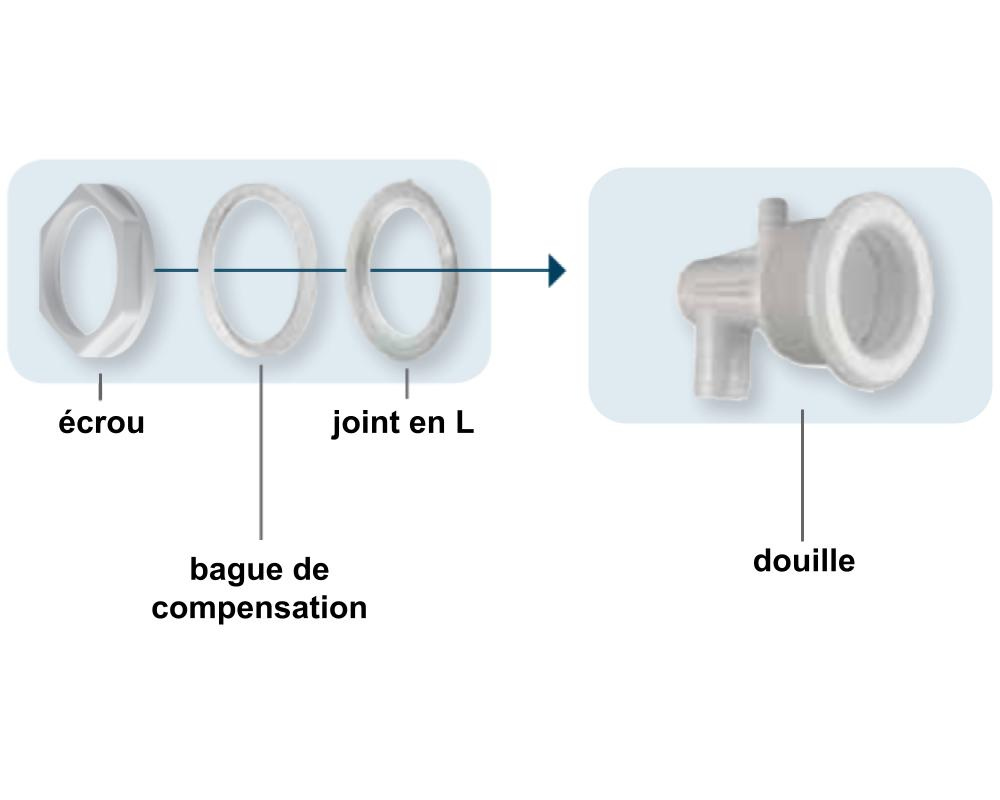

The sealing between the jet and the shell is provided by a fixing nut, a compensator ring] and a gasket (to be purchased separately), that eliminates gluing.

Dimensions
Drill diameter: 54 mm or 2" 7/8
Front face diameter: 97 mm
Overall length: 88 mm

Pipe connections
Water: Barbed fitting for 3/4-inch pipe
Air: Barbed fitting for 3/8-inch pipe

Part numbers
Balboa : 90094800
