Balboa AX10 A1 auxiliary panel - Jets

Only 5 in stock
69,00€
incl. 20% VAT
Quantity:

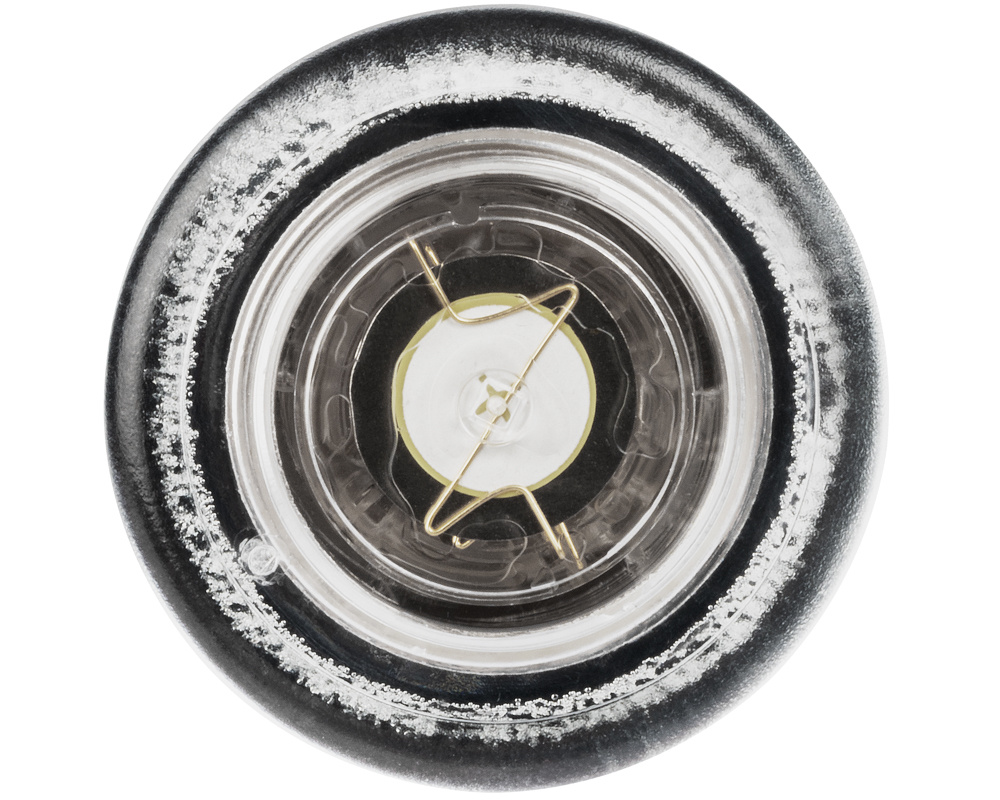

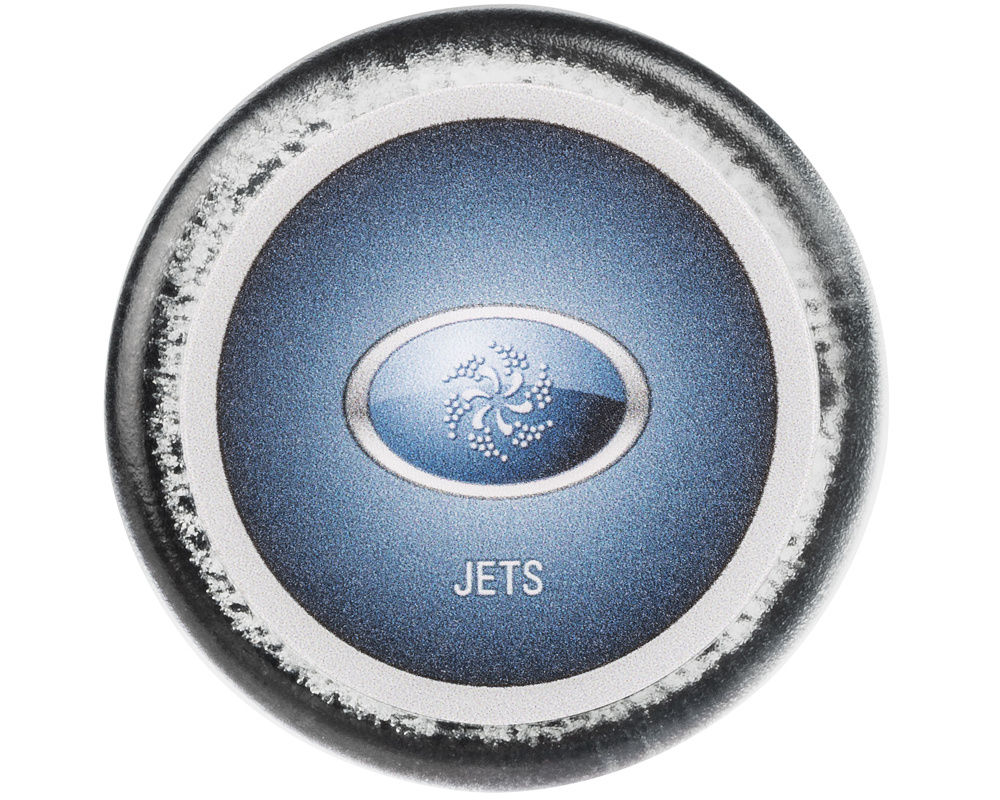

Balboa AX10 A1 auxiliary panel - Jets - Click to enlarge
Balboa AX10 A1 auxiliary panel - Jets - Click to enlarge
Balboa AX10 A1 auxiliary panel - Jets - Click to enlarge
Balboa AX10 A1 auxiliary panel - Jets - Click to enlarge

Sold without overlay.

This button is designed for Balboa's GL (GL2000, GL2001, GL8000M3, GL84P) and some BP (BP6013G1, BP6013G2, BP6013G3 and BP2100G1) systems.

This is the A1 version, so that the “Jets” (or Pump 1) function can be moved from the main keypad. If you're not sure, especially with BP series systems, please check the part number of the AX10 keypad you wish to replace, or contact us.

It comes with a cable and plug that connects directly to the auxiliary keypad socket on the control system.

The keypad is supplied without its self-adhesive overlay, to be purchased separately with the corresponding function (Jets, Jets 2, Blower, etc.) or as a generic version.

Dimensions
Face diameter: 56 mm
Drill diameter: 31 mm
Height: 28 mm
Cable length: 5 m

Balboa part numbers
Without overlay: 52803
With overlay: 52683
Wellis : ACM0670

We also supply other versions of the AX10 keypad, depending on the function to be remote from the main keypad:

Keypad part numbers Keypad designation Keypad
function
with overlay without overlay
52683 52803 AX10 A1 Jets / Pump 1
52764 52804 AX10 A2 Jets 2 / Pump 2
52765 52805 AX10 A3 Blower
52766 52806 AX10 A4 Light
55533 52805 AX10 A3 Jets 3 / Pump 3
54710 52804 AX10 A2 Jets 4 / Pump 4
