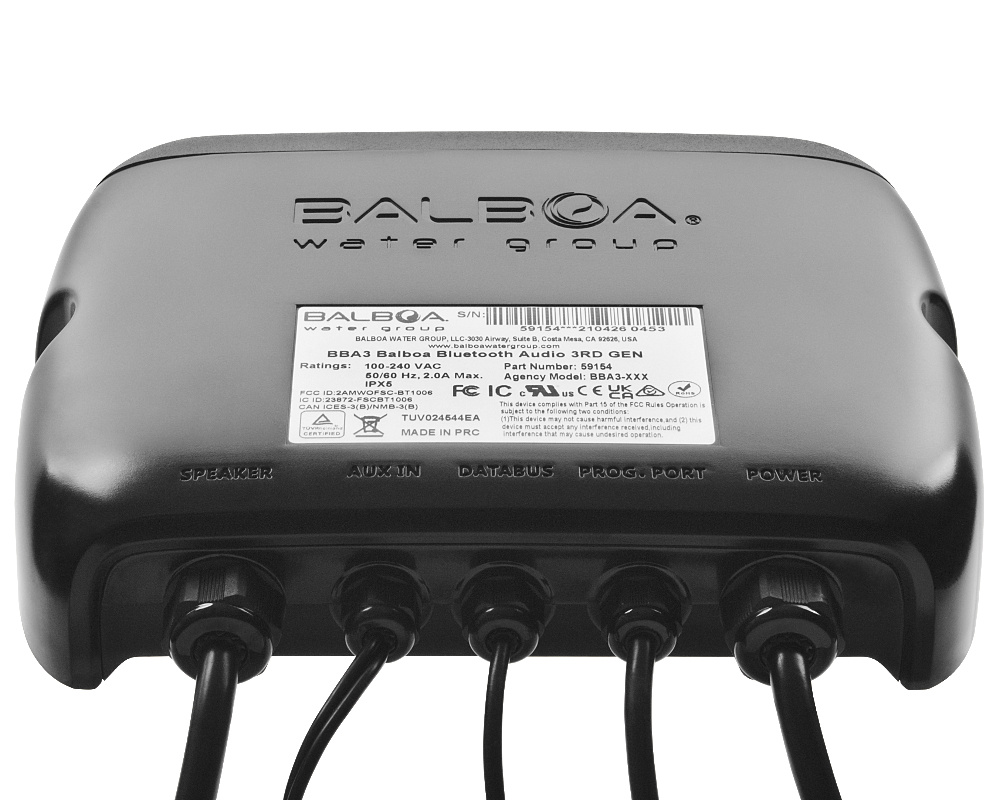

Balboa Bluetooth Audio bba3 amplifier
The Balboa Bluetooth Audio 3 or "bba3" amplifier allows you to easily stream audio content from your multimedia device directly to your spa's speakers. Replacing the bba and bba2, the bba3 has multiple Audio EQ (equalizer) modes: Jazz, Rock, Hall, etc. and the topside panel screen displays your favorite artists and songs.
Designed by Poly Planar, the bba3 is only compatible with the BP series control systems. No additional auxiliary panels is needed. This amplifier supports iPhone, Android and tablets with bluetooth support and can be controlled via your smart device (via the Balboa application) or a compatible topside panel. Three connection modes, Bluetooth, USB and RCA, are possible.
The bba3 has 4 AMP connections for sound output, for two types of use: front and rear stereo with 4 speakers, or 2.1 with a front stereo and a rear subwoofer.
Technical specifications
Operating voltage: 230V AC

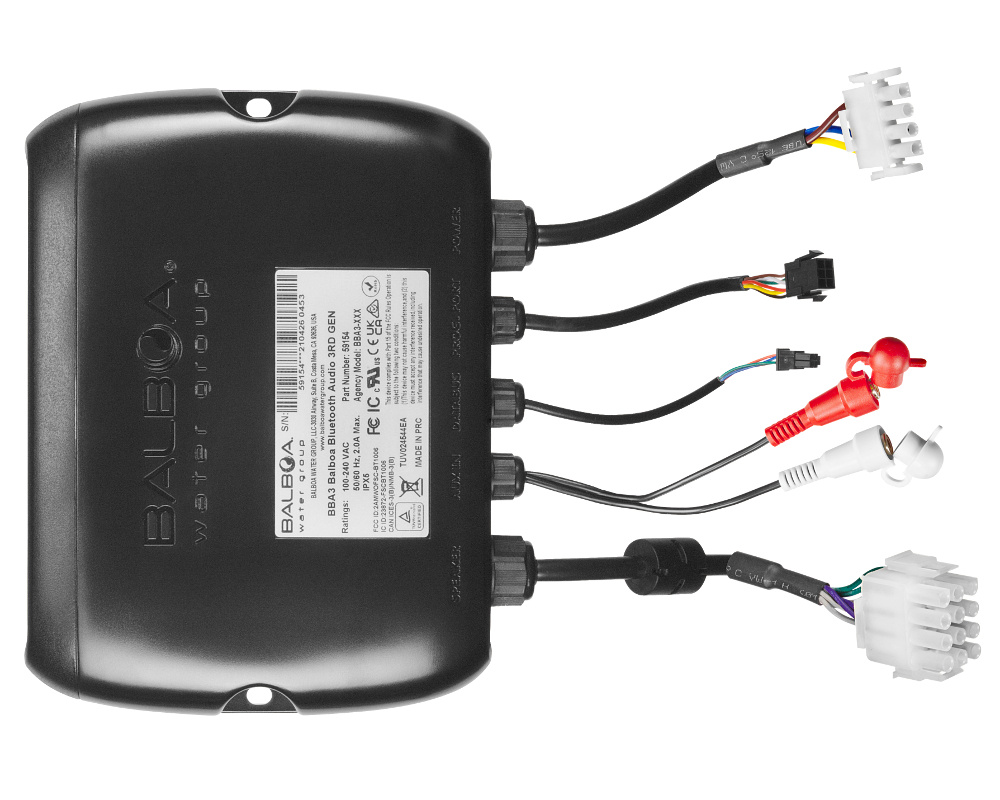

Plugs: 12-pin female AMP plug, RCA, aux. jack for BP motherboard
Audio Inputs: Bluetooth, RCA
Speaker impedance: 2 - 8 Ohms
Output power: 4x15W (18W max) or 4x30W (42W max)
Bluetooth connection range: up to 30m
Waterproofing: IPx5
Dimensions
Width: 202 mm
Maximum height: 48,5 mm
Depth: 160 mm
Compatible with the following keyboards
spaTouch 1 square and oval, spaTouch 2, depending on the software version
Some versions of the TP400T, TP400W, TP600, TP800 and TP900 keyboards are also compatible. Check for compatibility in the Installation instructions, or contact us.
Warranty
2-year Tubs Parts warranty
Part numbers
Balboa: 59154
Replaces the 59062 (bba2) reference.
