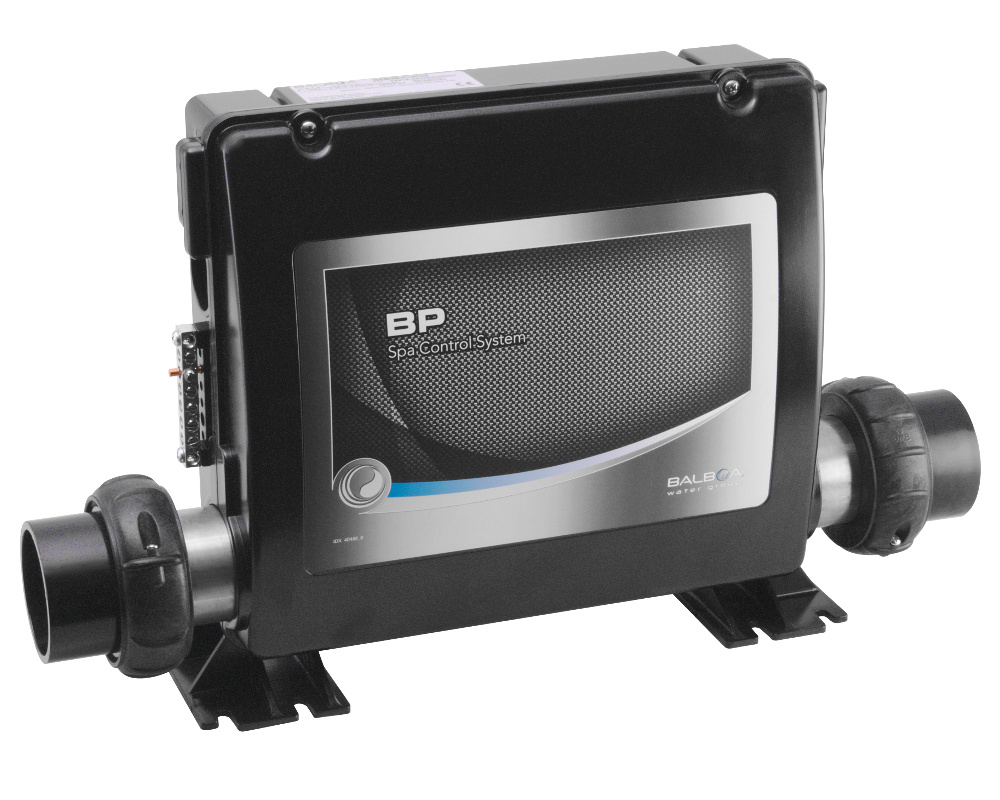

Balboa BP2100G1 control system
The BP2100G1 control system uses the latest version of Balboa's famously-reliable M7 system, and is compatible with the TP series keyboards. It is also compatible with the Wi-Fi module that allows you to control your hot tub from your Android or iOS smartphone.
The control system with its integrated 3 kW heater can manage the following equipment:
- A circulation pump
- Up to 3 single or two-speed pumps
- A blower
- An ozonator
- Underwater lighting
- Sound system
The M7 technology eliminates pressure switches or flow switches and uses Balboa M7 temperature sensors.
The BP2100G1 can also be directly connected to the Clim8zone and Clim8zone II heat pumps with a data cable, without any additional electrical circuit.

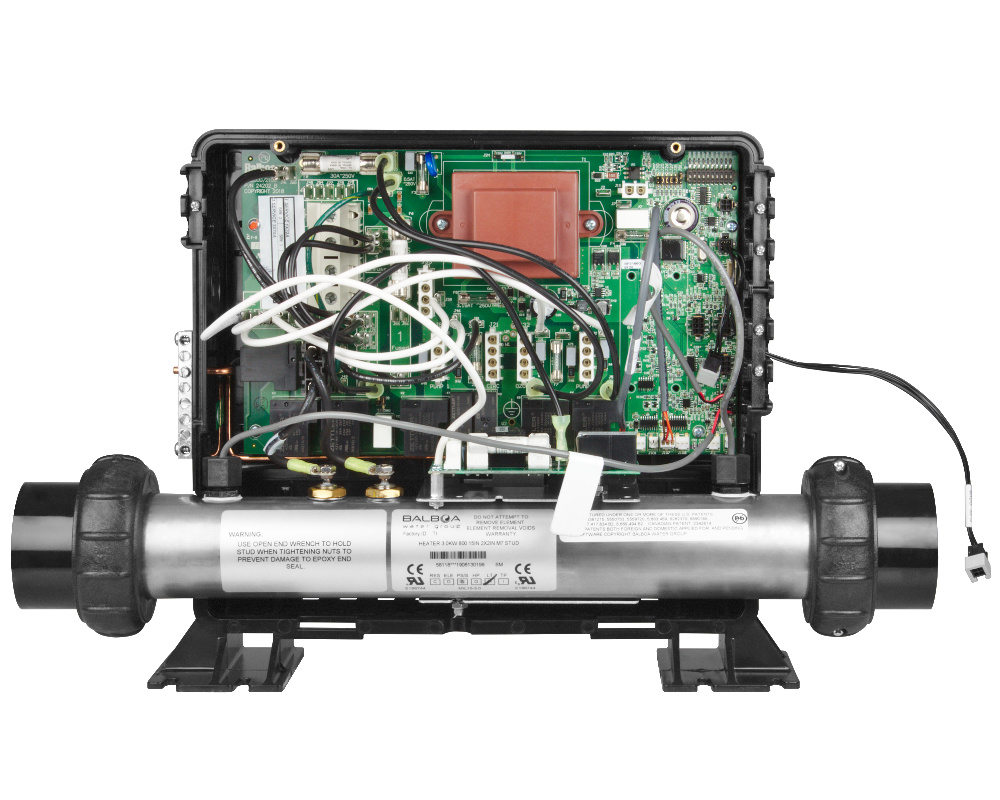

Balboa changed the configuration of the BP2100G1 motherboard a few years ago, which means that the transformers and sockets may be in different locations compared to your original system. The two versions are fully compatible with each other.
Dimensions
Height: 268 mm
Width of box: 311 mm
Width of heater: 381 mm, excluding the unions
Depth: 112 mm
Plumbing connections to heater: 2" (connections and o-rings included)
Compatible keypads
spaTouch, spaTouch 2 trapézoid and square, spaTouch 3, spaTouch3+, spaTouch 4 and the TP serie keypads: TP400W, TP400T, TP500, TP500S, TP600, TP700, TP800, TP900
For a new system, choose your keypad depending on the number of devices controlled.
Power supply
The BP2100G1 system is delivered pre-configured for a single-phase power supply. It can also be configured with a three-phase power supply (purely so that you can distribute the load between the phases ; the system only has single-phase outputs). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You should install a cable gland on the main power cable, or transfer over the one from your old control system.
Warranty
2-year Tubs Parts warranty
Part numbers
Complete system: 56389, 56390, 56390, 56391
Printed circuit board only: 56392
3.0 kW Incoloy 800 heater 58279
Expansion board only: 55138 X-P332C
Wellis: ACM0648, ACM0545
Marquis Spa : 650-0747
