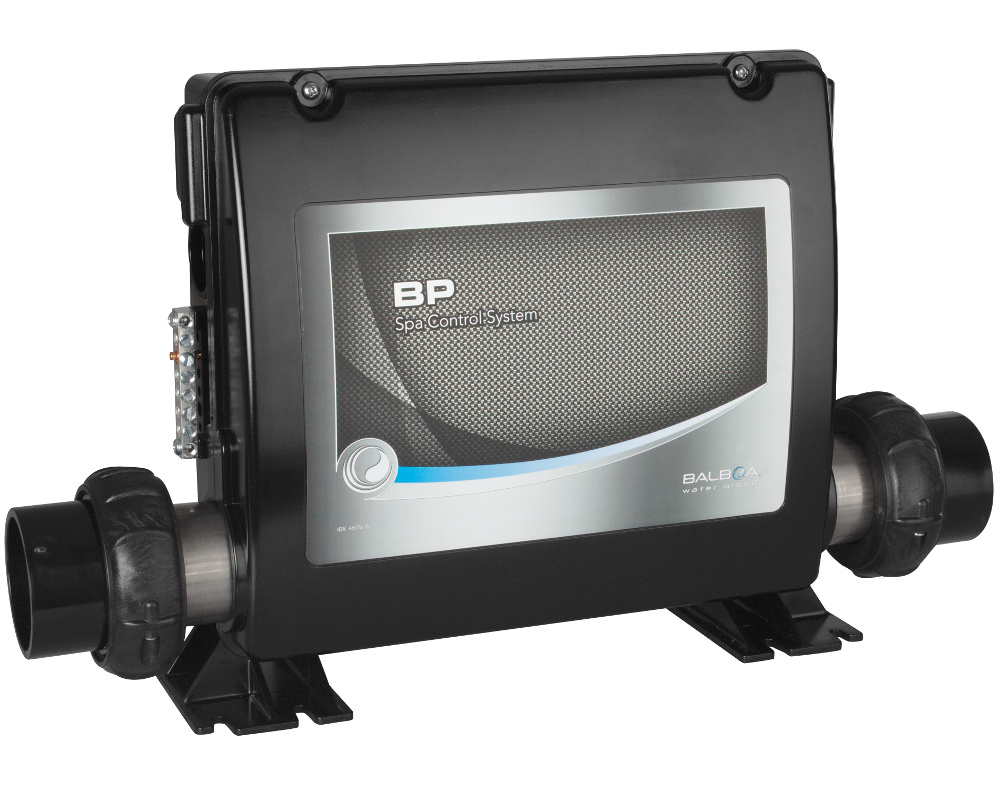

Balboa BP6013G1 control system
The Balboa BP6013G1 control system, with its integrated 3 kW Incoloy heater, can manage:
- Circulation pump
- A single-speed or two-speed massage pump
- Another single-speed pump or a blower
- Ozonator
- Underwater light
This control box can be connected to a WiFi module to control your spa remotely from an Android smartphone, iPhone, iPod touch or iPad.
The BP6013G2 system is similiar to this one, but can handle an additional massage pump (either one or two-speed).

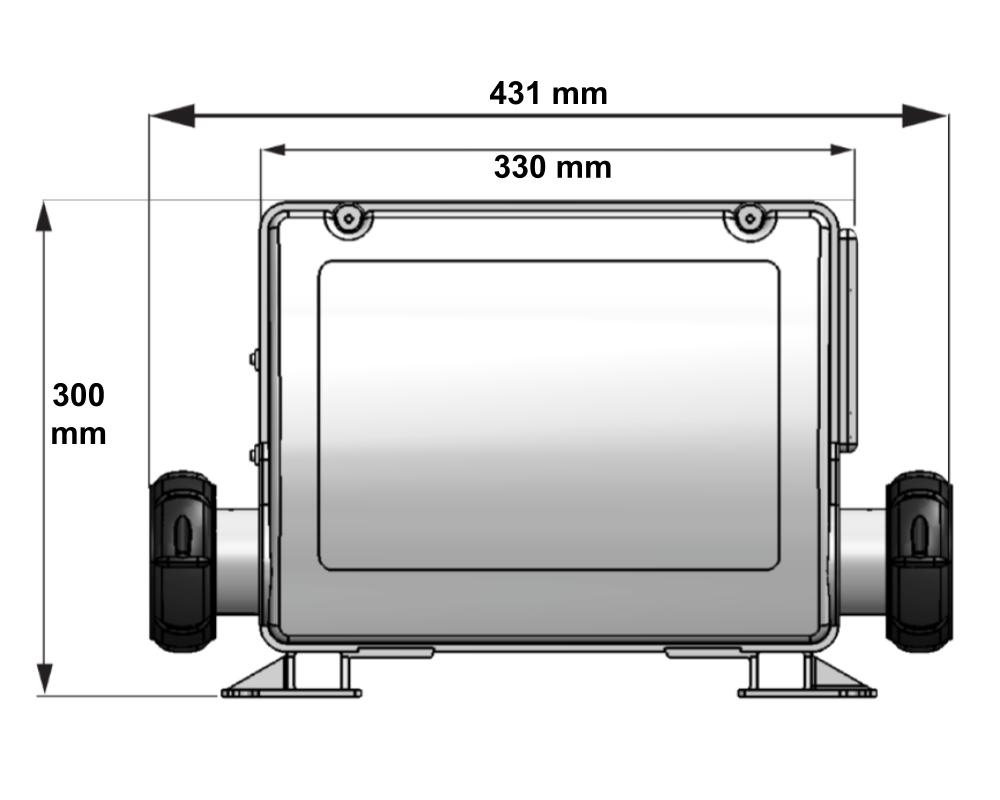

Dimensions
Height: 300 mm
Length of heater: 380 mm, without fittings
Length of heater: 498 mm, with fittings
Depth: 108 mm
Heater connection: 2" (clamping rings and gaskets supplied)
Compatible with the following keyboards
Main keypads: TP400W, TP400T, TP500, TP500S, TP600, TP700, TP800 et TP900, spaTouch square, oval, spaTouch 2, spaTouch 3, spaTouch3+, spaTouch 4
Auxiliary keypads (without display): AX10, AX20, AX40
Power supply
The BP6013G1 system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!
Warranty
2-year Tubs Parts warranty
Part numbers
Balboa: 56281, 56610-06

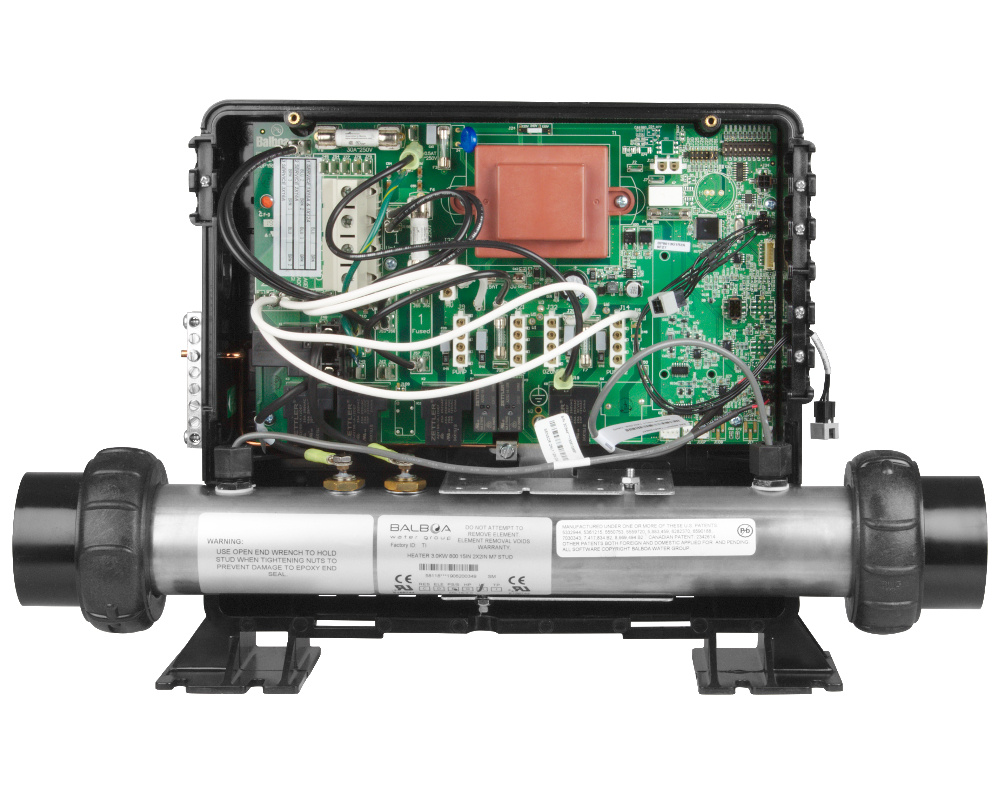

PCB only : 59147
Heater only : 58279
