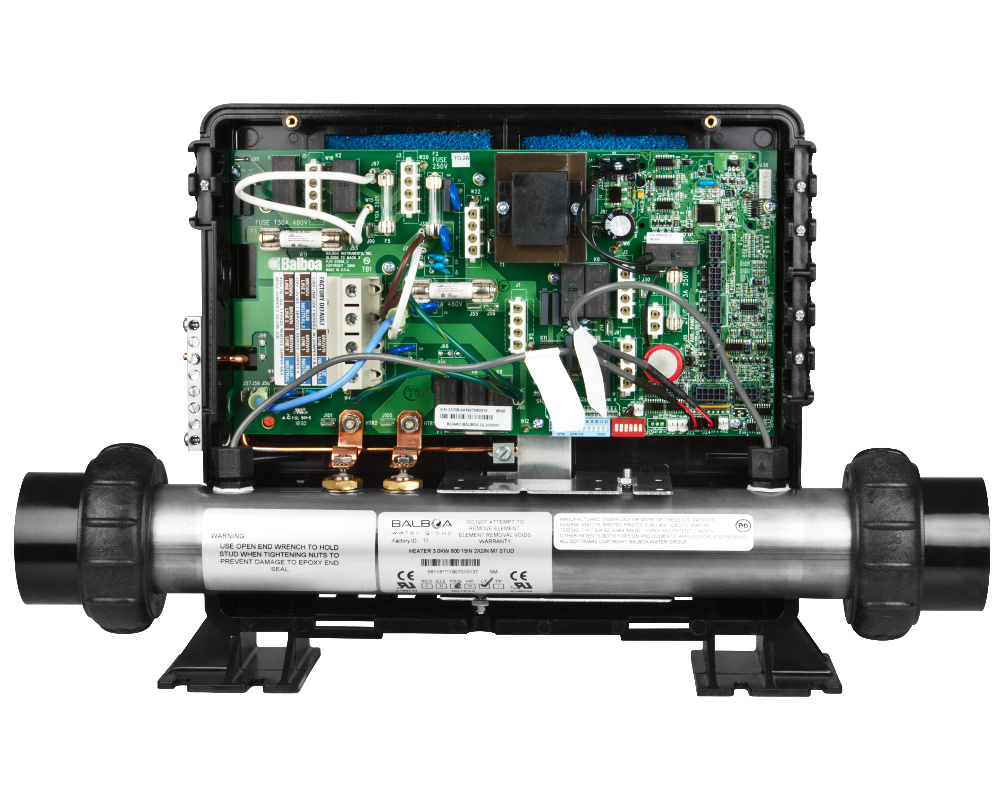

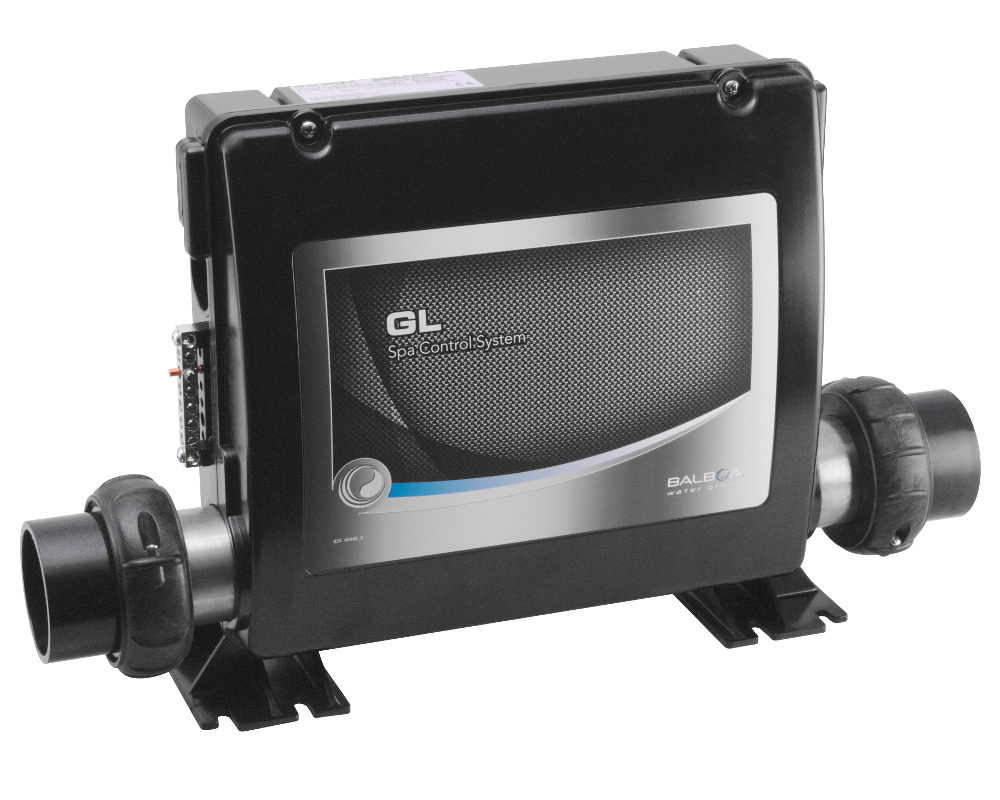

Balboa GL2000M3 control system
The Balboa GL2000M3 spa control system can handle a lot of different equipment configurations. In its standard configuration (without any expansion card), it supports the following equipment:
- One circulation pump
- Two massage pumps, of which one can be a 2-speed if you do not have a 24-hour circulation pump
- A blower
- Built in 3 kW heater with an element made from Incoloy alloy
- An ozonator
- Up to 5 control panels (3 main panels and 2 auxiliary panels)
- Underwater multicoloured and synchronized lighting
The CL2000 system and/or motherboard used in Clearwater spas, although manufactured by Balboa, cannot be replaced by the GL2000. Please contact us for any enquiries.
Dimensions
Height: 286 mm
Width: 311 mm (box only, excluding the heater), 381 mm (heater, excluding unions)
Depth: 90 mm
Heater plumbing connection: 2" (connections and o-rings included)
Compatible with the following keypads
Main: ML900, ML700, ML550, ML551, ML554, ML400, ML260, ML240, ML200, MU311
Auxiliary (without screen): AX10, AX20, AX30, AX40, AX41
Power supply
The GL2000M3 system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!
Warranty
2-year Tubs Parts warranty
Part numbers
Complete Balboa system: 55048-04
Heater: 58118
Motherboard: 53708-04
Volition : 2LG
