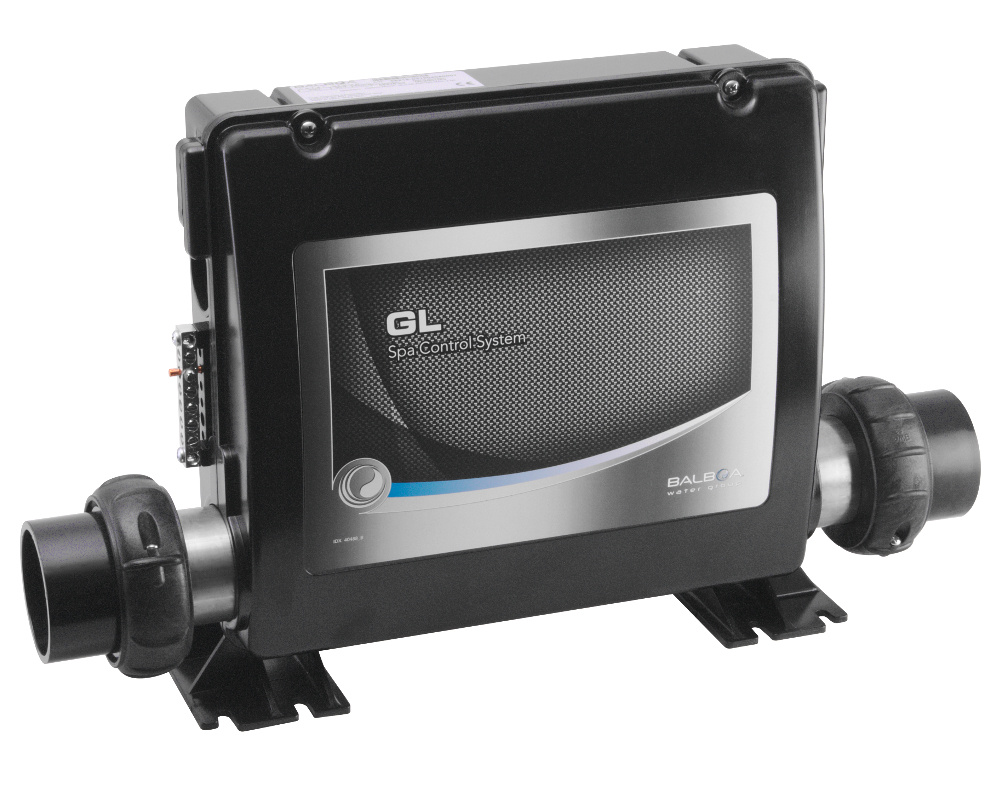

Balboa GL2001M3 control system
The Balboa GL2001 Mach 3 spa control system has a built-in 3 kW heater, and can manage the following equipment:
- circulation pump
- Two 2-speed pumps
- Blower
- Ozonator
- Underwater light
- Sound system
Dimensions
Height: 286 mm
Width: 311 mm (box only, excluding the heater), 381 mm (heater, excluding unions)
Depth: 90 mm
Heater plumbing connection: 2" (connections and o-rings included)
Compatible keypads
The GL2001M3 control system is compatible with the following keypads: ML900, ML700, ML400, ML550, ML551 and ML554
... and also ML200 ML240 ML260, but these only have four keys. Be sure to choose a keypad with the buttons you need to control your spa equipment!
Power supply
The GL2001M3 system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply, so that the load can be shared across the phases. If you have additional questions, please refer to the user manual or contact us when placing your order.
You may also want to replace your cable gland if necessary!
Warranty
2-year Tubs Parts warranty
Balboa part numbers
Complete GL2001 Mach 3 system: 55216-03
3.0 kW heater : 58118

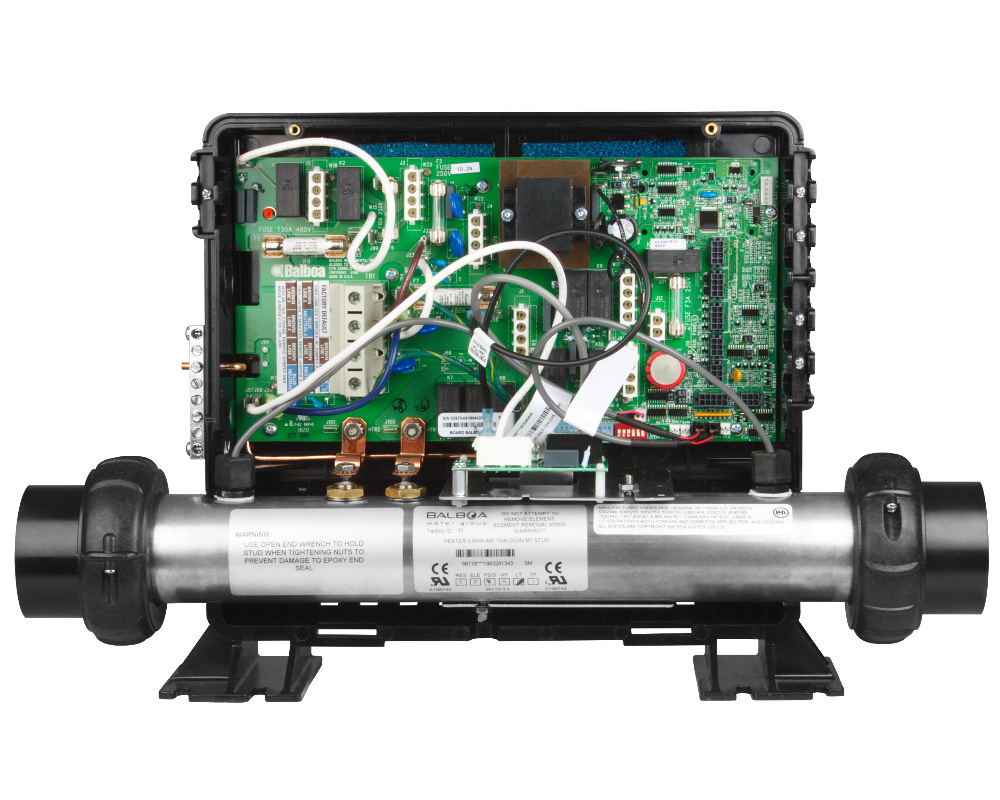

Printed circuit board only : 53975-04
Expansion card only : 53311
