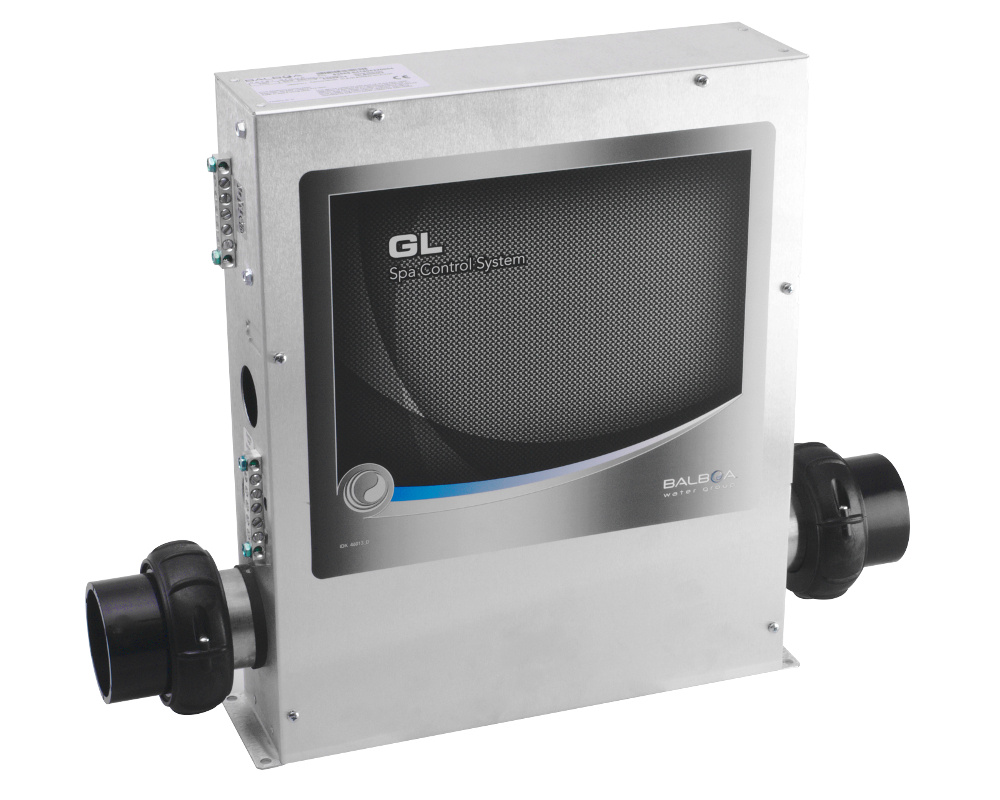

Balboa GL8000M3 control system
The Balboa GL8000M3 control system has a built-in heater, and can manage almost any combination of the following equipment:
- circulation pump
- Up to 3 single or two-speed massage pumps
- Blower
- Ozonator
- Underwater light
- AV stereo
This control system is often used in swim spas, due to its capacity to control a large number of pumps.
Dimensions
Height: 385 mm
Width: 311 mm (box only, excluding the heater), 381 mm (heater, excluding unions)
Depth: 90 mm
Plumbing connections to heater: 2-inch (connections and o-rings included)
Compatible with the following control panels
Main: ML900, ML700, ML550, ML551, ML400, ML260, ML240, ML200, MU311
Auxiliary: AX10, AX20, AX30, AX40, AX41
Power supply
The GL8000M3 system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!
Warranty
2-year Tubs Parts warranty
Part numbers
Complete GL2000 Mach 3 system: 53859-04

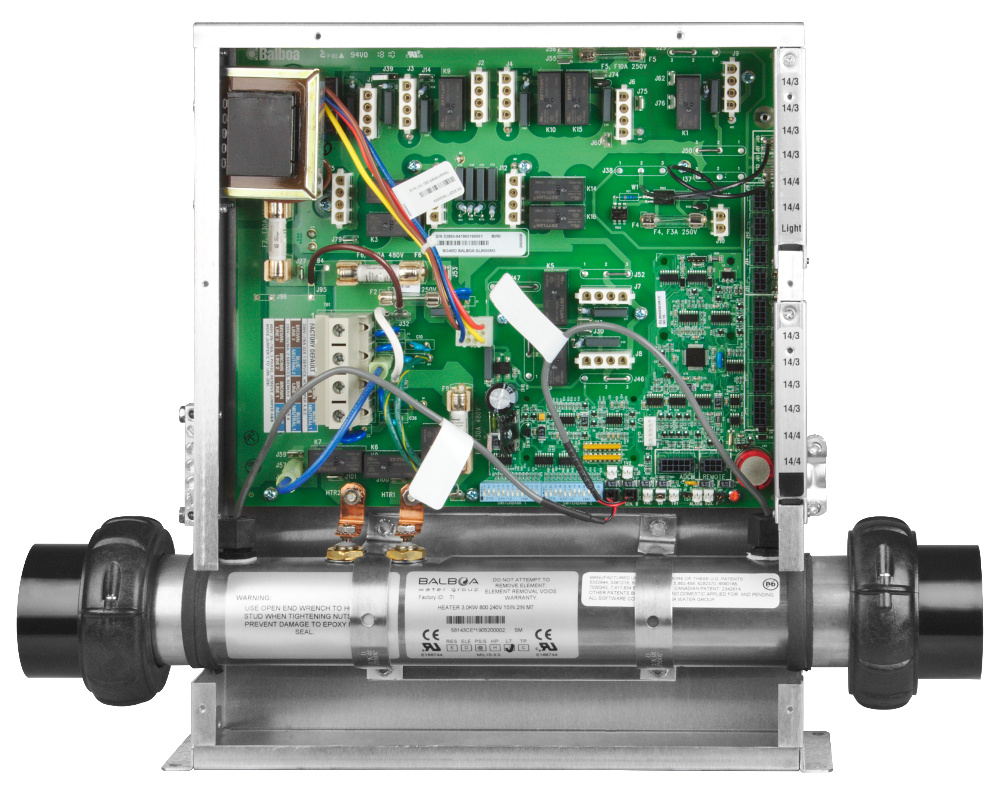

PCB : 53860-04
M7 3.0 kW heater: 58143
