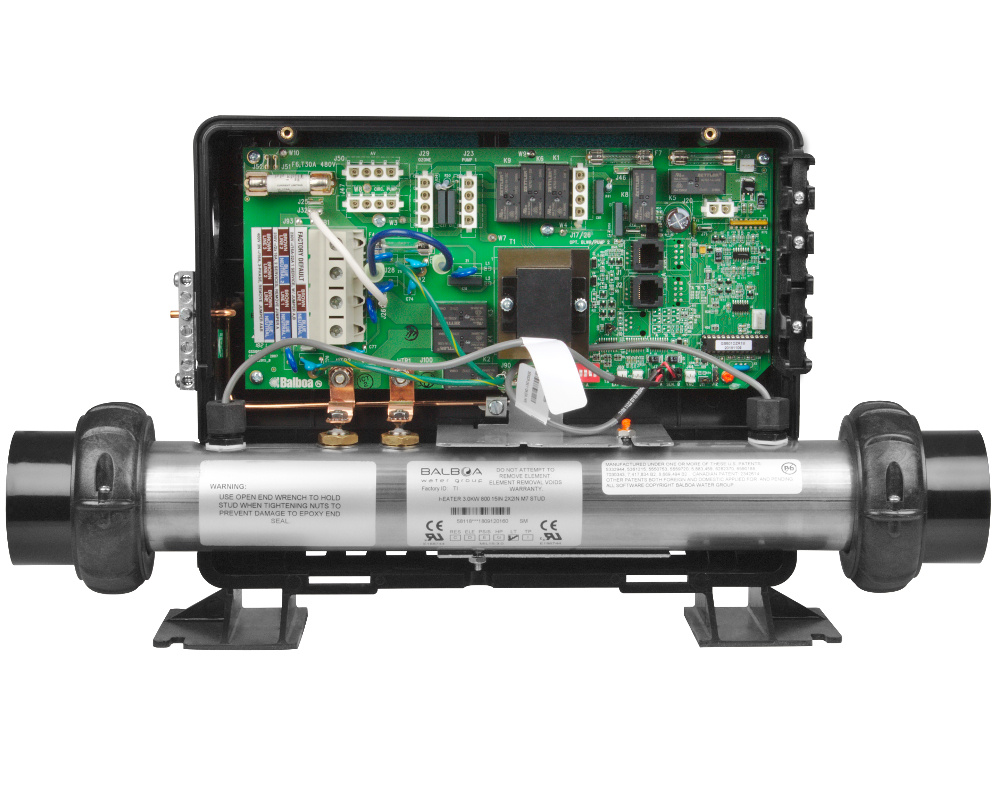

Balboa GS501DZ control system
This economical Balboa spa control system is a great option for retro-fitting older hot tubs if the original equipment has died. It uses Balboa's patented M7 technology which eliminates pressure switches or flow switches and uses Balboa temperature sensors.
The equipment connects to the control system using AMP plugs. It has a built-in 3.0 kW heater with an Incoloy 800 3.0 kW element.
It manages the following equipment:
- Pump 1 single or two-speed
- Circulation pump
- 1 blower (to replace this blower with a single-speed pump, use the GS504DZ instead)
- 1 ozonator
- 1 underwater lighting
Dimensions
Height: 268 mm
Width of box: 311 mm
Width of heater: 381 mm, excluding unions
Depth: 112 mm
Plumbing connections to heater: 2-inch (connections and o-rings included)
Compatible keypads
Primary keypads, with screen: VL801D, VL802D
Secondary keypads: VX40D
Power supply
The GS501DZ system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!
Warranty
2-year Tubs Parts warranty
Balboa part numbers
Complete GS501DZ system: 55250-01
3.0 kW heater: 58118
