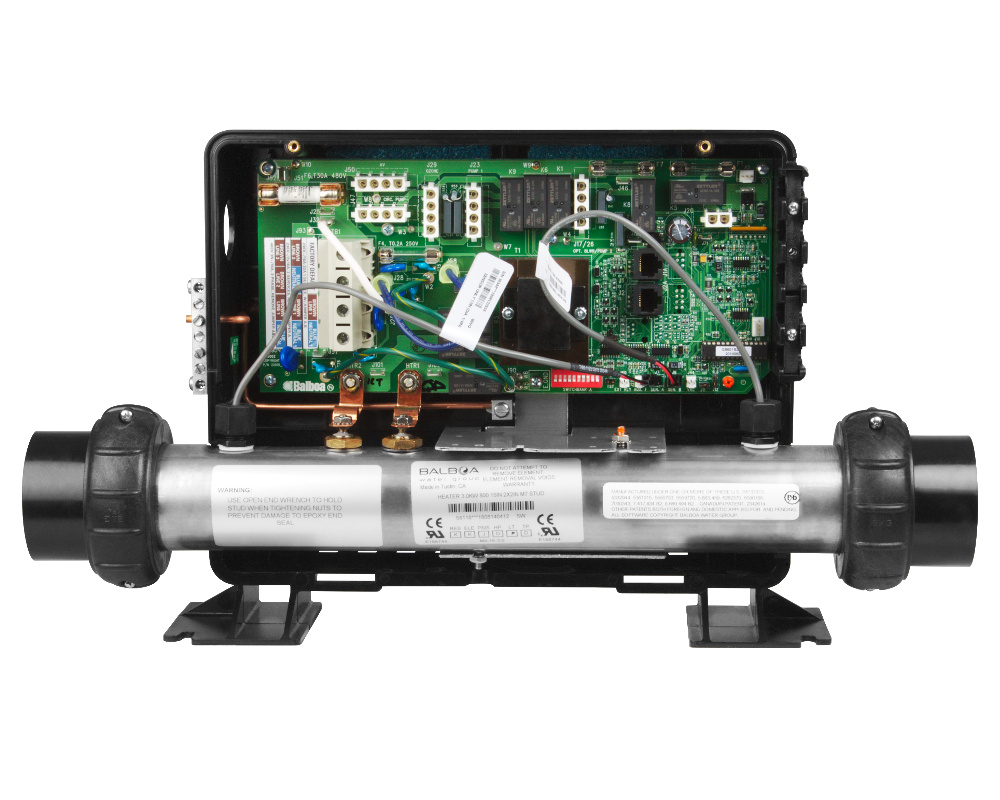

Balboa GS501SZ control system

This economical Balboa spa control system is a great option for retro-fitting older hot tubs if the original equipment has died. It uses Balboa's M7 technology which eliminates pressure switches or flow switches and uses Balboa temperature sensors. It has a built-in 3 kW heater.

It manages the following equipment:

• Pump 1 single or two-speed
• Circulation pump
• 1 blower (to replace this blower with a single-speed pump, use the GS504SZ instead)
• 1 ozonator
  Underwater lighting
• 1 sound system

The equipment connects to the control system using AMP plugs.

The system can be converted into a GS510SZ by adding a Balboa X-P231 expansions board.

Dimensions
Height: 268 mm
Width of box: 311 mm (box only), 381 mm (heater, excluding unions)
Depth: 117 mm
Plumbing connections to heater: 2" (connections and o-rings included)

Compatible with the following keypads
VL600S, VL601S, VL700S, VL701S, 702S

Power supply
The GS501SZ system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!

Warranty
2-year Tubs Parts warranty

Balboa part numbers
Complete GS501Z system: 54515-02
Incoloy 800 3 kW heater: 58118
PCB : 54516-02
