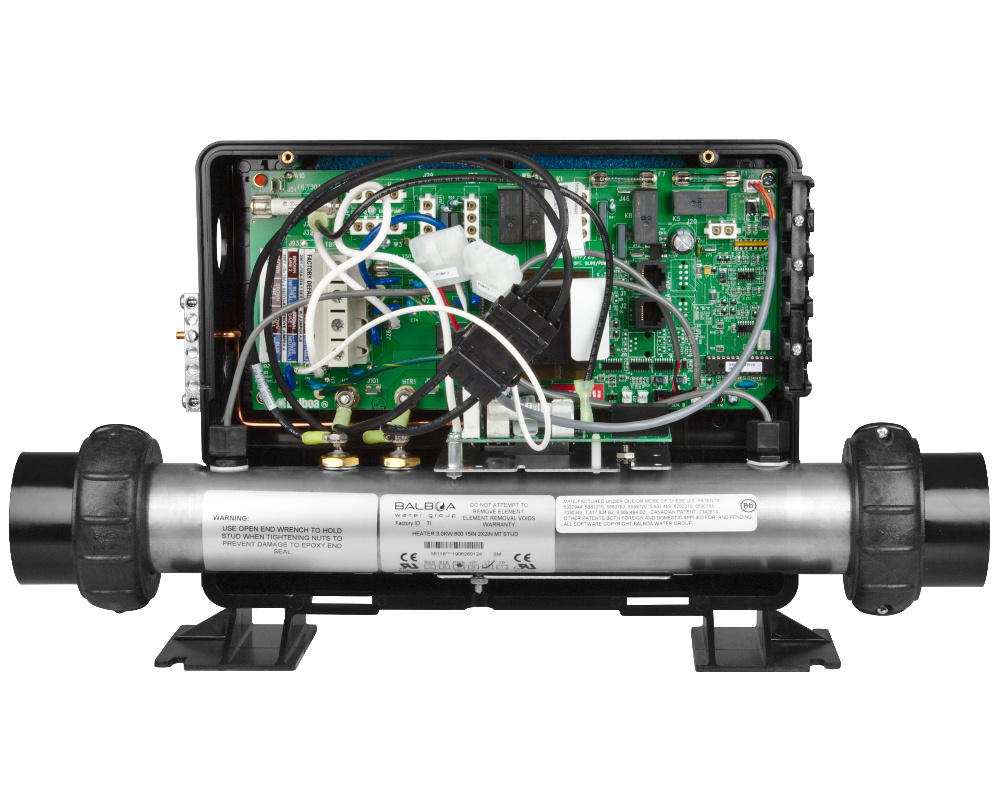

Balboa GS523DZ control system

In stock
567,00€
incl. 20% VAT
Quantity:
Balboa GS523DZ control system - Click to enlarge
Balboa GS523DZ control system - Click to enlarge
Balboa GS523DZ control system - Click to enlarge

The Balboa GS523DZ control system has a built-in 3 kW heater and can manage the following spa equipment:

  • Pump 1 single or two-speed
  • Pump 2 single-speed (required)
  • Pump 3 single-speed (required)
  • Blower or single-speed pump 4
  • Circulation pump
  • 1 ozonator
  • Underwater lighting
  • Sound system

Dimensions
Height: 268 mm
Width: 311 mm (box only, excluding the heater), 381 mm (heater without unions)
Depth: 112 mm

Plumbing connections to heater: 2-inch (connections and o-rings included)

Compatible with the following keypads
VL801D, V802D

Power supply
The GS523DZ system is delivered pre-configured for a single-phase power supply. It can also be configured with a two-phase and three-phase power supply (for a distribution of the various units between the phases). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.
You may also want to replace your cable gland if necessary!

Warranty
2-year Tubs Parts warranty

Balboa part numbers
Complete GS523SZ system: 54763-02
Heater: 58118
Motherboard only : 55857-01
Expansion board only : 55138 X-P332C
Wellis : ACM0190

Documentation
