Balboa HydroAir 2" Stainless steal diverter valve

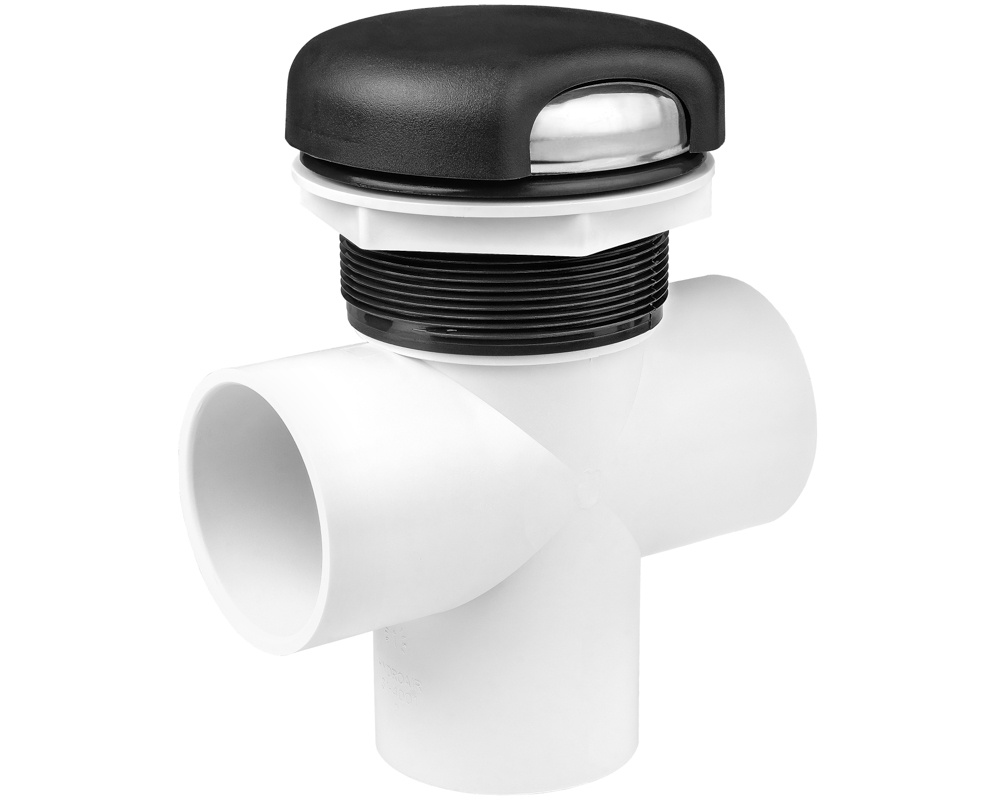

This Balboa / HydroAir diverter valve with a dark gray handle and Stainless Steel cap connects to 2-inch pipes, and is used to adjust the intensity of water coming out of different groups of jets.

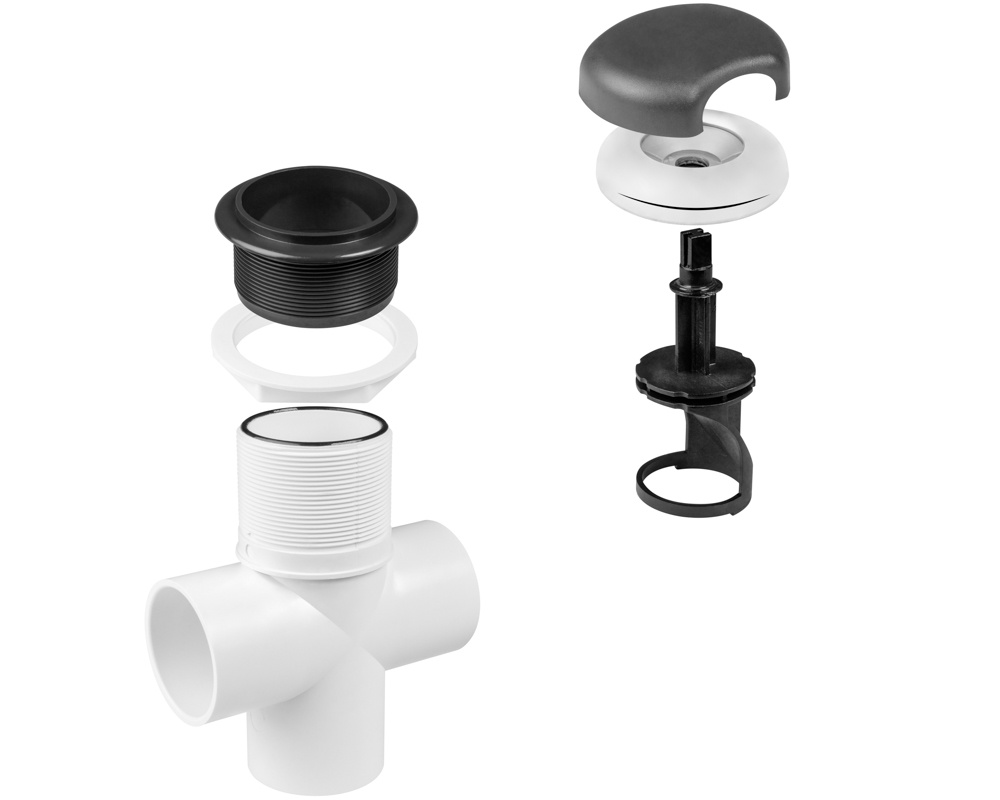

It comes complete, including body, flange, locking ring, diverter gate, cap and handle.

It is used on Aquamarine, Signature, Cyclone, Bullfrog, Designer and Leisurite, among others.

The diverter valve rotor is available separately.

Dimensions
Drill diameter: 80 mm
Total length: 190 mm
Face diameter: 95 mm
Inner diameter of the white tee: 60 mm, for 2-inch pipes
Top diameter (where the cap screws on) : 72 mm

Balboa HydroAir part numbers
Complete diverter valve: 18-4093 COALG
Valve Body : 31-4001
