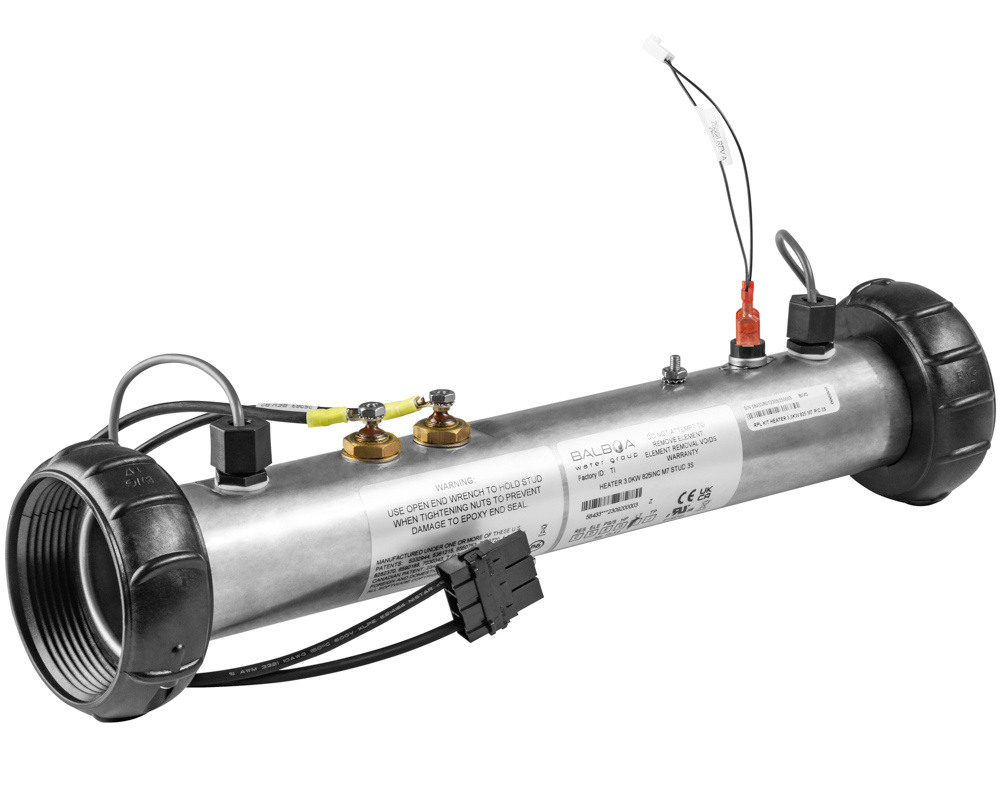

Balboa 3 kW M7 “3S” Plug N'Click heater with third sensor
The "S3" version of the Balboa 3kW Plug N'Click heater with Incoloy element is made for BP series control systems. It features M7 sensors, which continuously check flow speed and water temperature. More reliable than conventional pressure switches and flow sensors, M7 heaters require a minimum water flow of 75 liters/minute (4.5 m³/hour).
A third temperature sensor (or thermal protection sensor) is also fitted to the heater: it is an additional security to the heater and stops it if a temperature above 50°C is detected. It is connected to J29 of every BP box, and can replace any BP system heater (except BP200).
Dimensions
Length (without connectors and gaskets): 381 mm (15")
Usually connected to 2-inch pipes
Compatible control systems
Fitted with a Plug N'Click male adapter, the heater is compatible with BP501, BP601, BP6013G1, BP6013G2, BP6013G3, BP2000 and BP2100 systems.
Connection
The heater is supplied with its two 2" connections and gaskets. If you are replacing your heater, be sure if needed to add the union sockets for 2" pipes. Union sockets for 1.5" pipes are also available.
Warranty
2-year Tubs Parts warranty
Part numbers
Balboa: 58433, 58433KIT 3.0kW 825 Inc “3S” heater
