Balboa 9-LED master light with controller

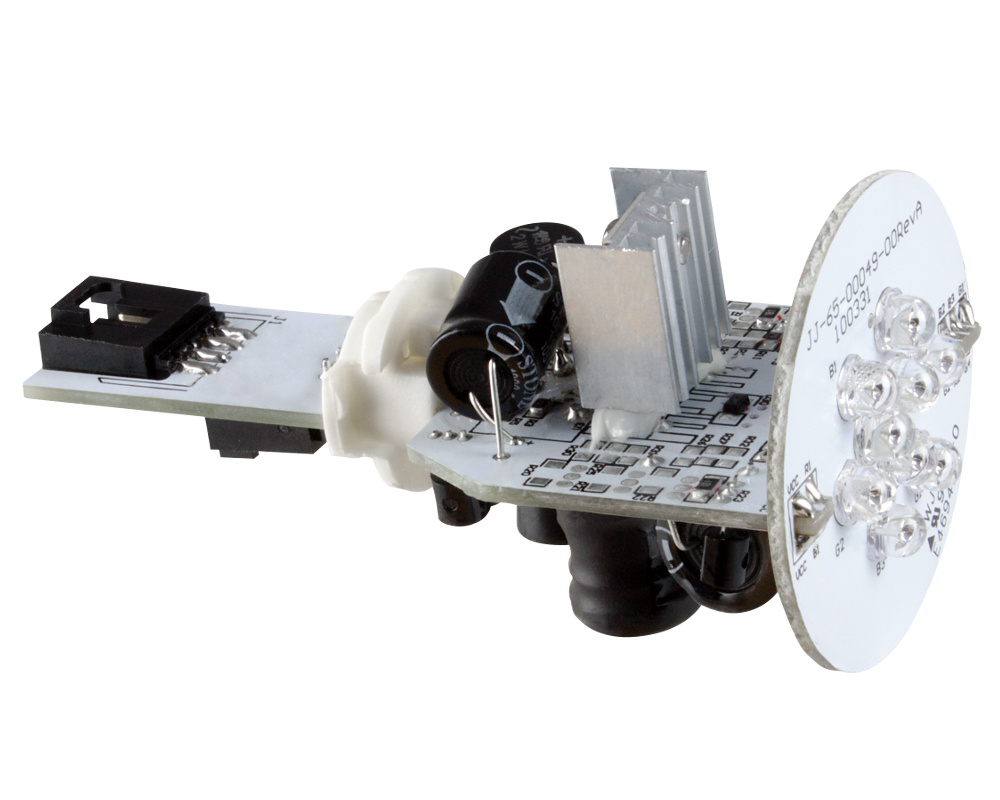

This 9-LED multicolour bulb with integrated lighting controller is manufactured by J&J Electronics. It connects directly to the control system with a power cable (with AMP plug or red connectors.

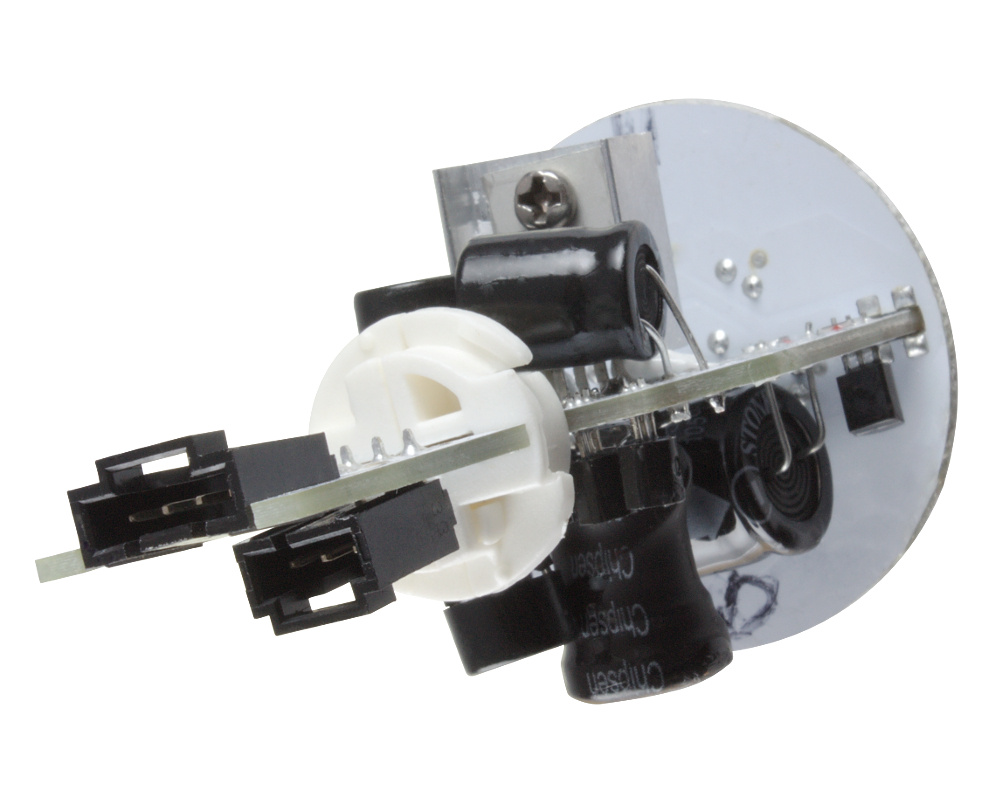

It is equipped with a 3-pin input connector and a 4-pin output connector, which allows - via a 4-pin adapter cable - to connect multi-LED cables (4-LED or 6-LED, for example) in series while keeping the colour changes synchronized.

This piece can be found on Marquis Spas, Garden Leisure and Dynasty Spas, among others, as well as on Balboa's "String Lights" system.

Technical specifications
Input voltage: 12V AC
Output voltage: 5V DC
Maximum current: 1A

Dimensions
Diameter: 44 mm
Total length: 87 mm

Part numbers
Balboa : 20-5930
J&J Electronics : LSL9-2-LC-M
Marquis Spa : 740-0294
