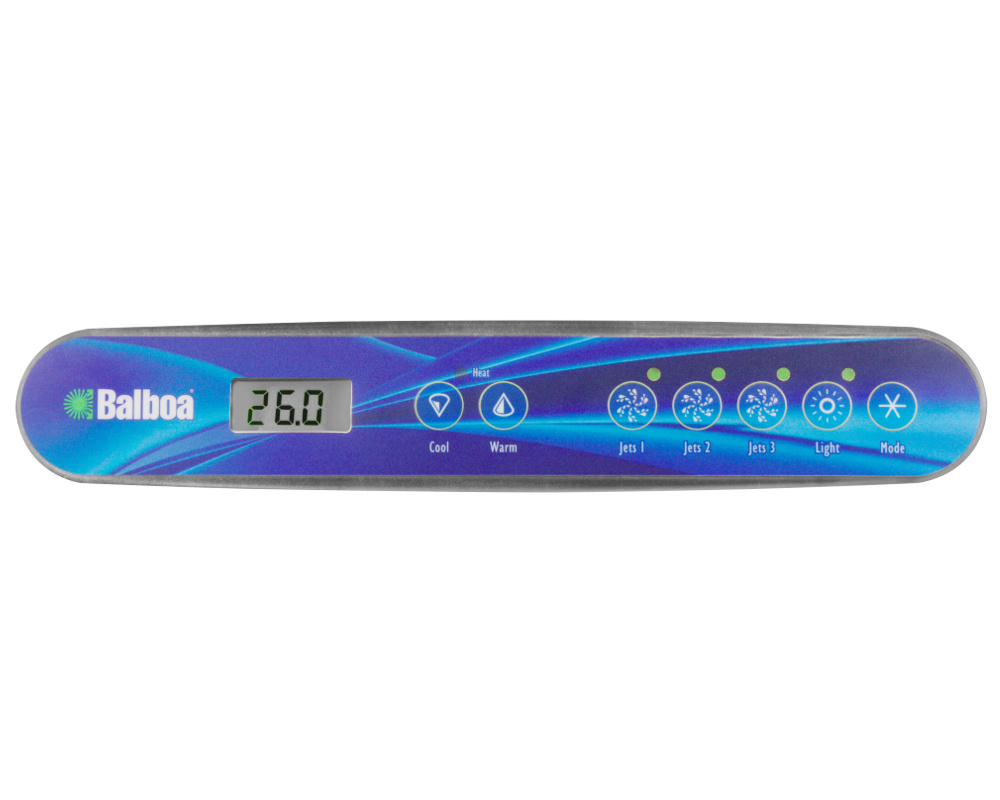

Balboa ML550 control panel

This keypad is compatible with the Balboa GL2000 M3, GL2001 M3 and GL8000 M3 control systems.

It has 7 buttons with the following functions:

• Increase temperature
• Reduce temperature
• Light
• Jets 1
• Jets 2
• Jets 3
• Mode/Program

The keypad comes with its self-adhesive overlay, which is also available separately.

Dimensions
Keypad: 394 x 64 mm
Cut out area: 313 x 37 mm
Cable: 2 m
See the photo for the type of plug.

Warranty
2-year Tubs Parts warranty

Balboa part numbers
Keypad with overlay: 54726
Keypad without overlay: 53393
