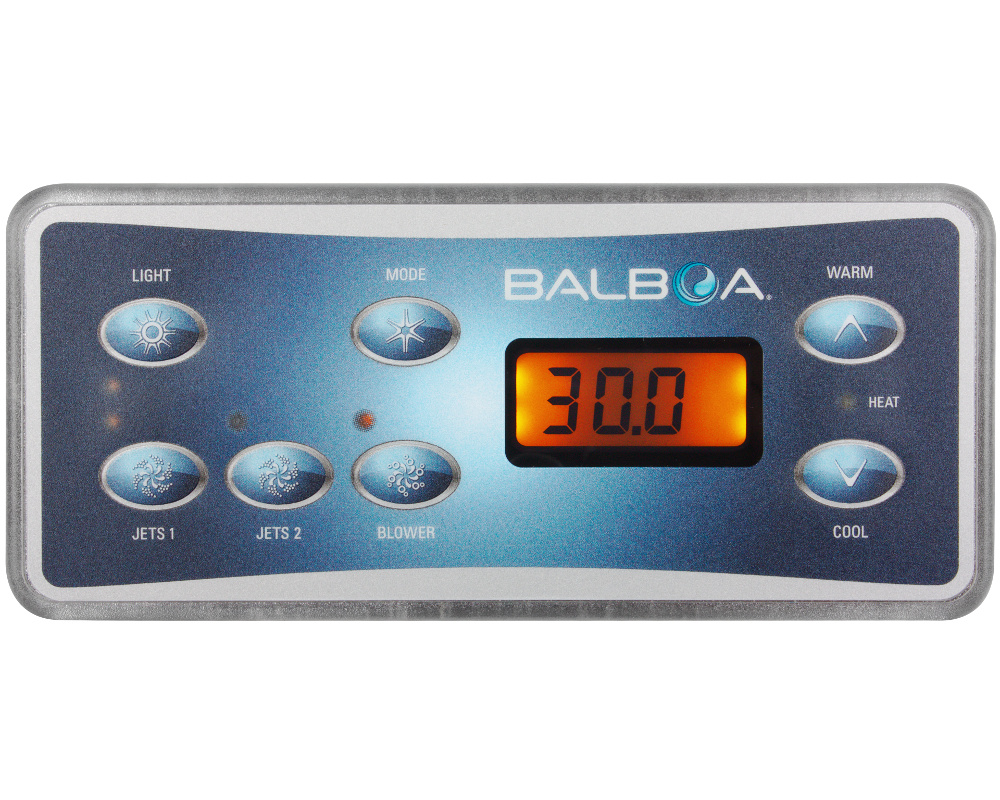

Balboa ML551 control panel

The compact ML551 keypad is compatible with the Balboa GL2000 M3, GL2001 M3, GL8000 M3 and GL84P control systems.

It has 7 buttons:

• 2 buttons for temperature (up and down)
• Light
• 2 jet buttons
• Blower
• Mode/Program

You may also configure the system so that it controls a third pump in place of the blower.

This keyboard is supplied with its 7-button overlay, also available separately. A 8-button overlay is also available.

Dimensions
Keypad: 188 x 84 mm
Cut out area : 160 x 57 mm
Cable: 2 m
See the type of plug in the photo.

Warranty
2-year Tubs Parts warranty

Balboa part numbers
Keypad with overlay: 53502-02
Keypad without overlay: 53503
Volition : 155LM

User’s Manual
