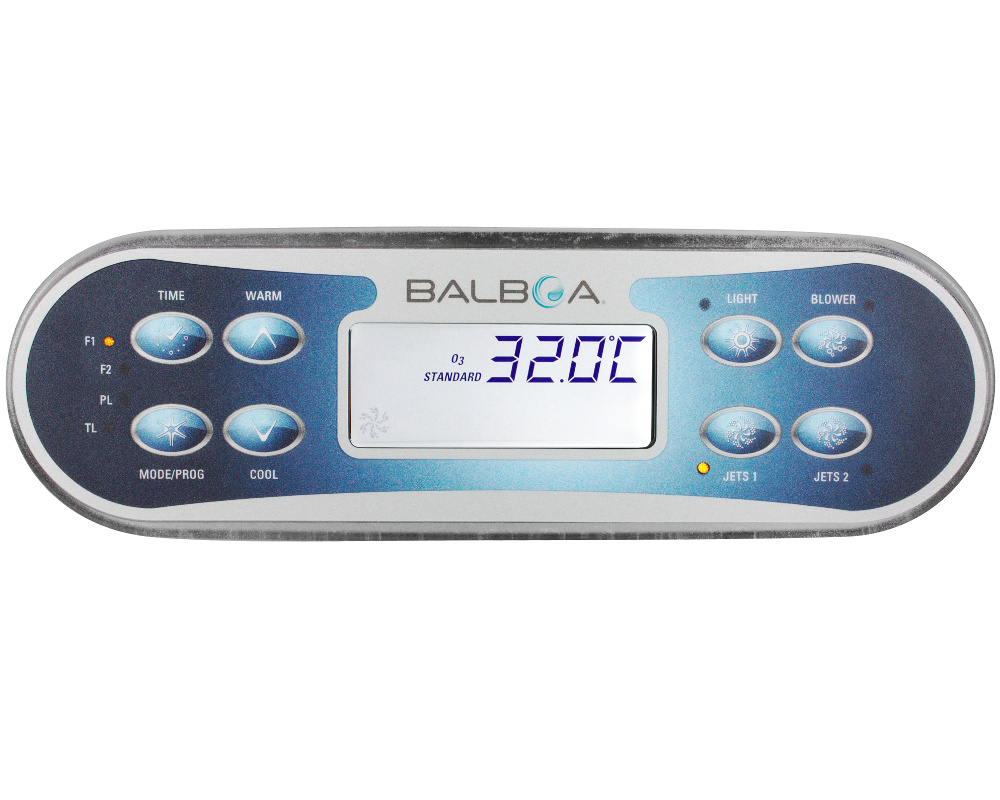

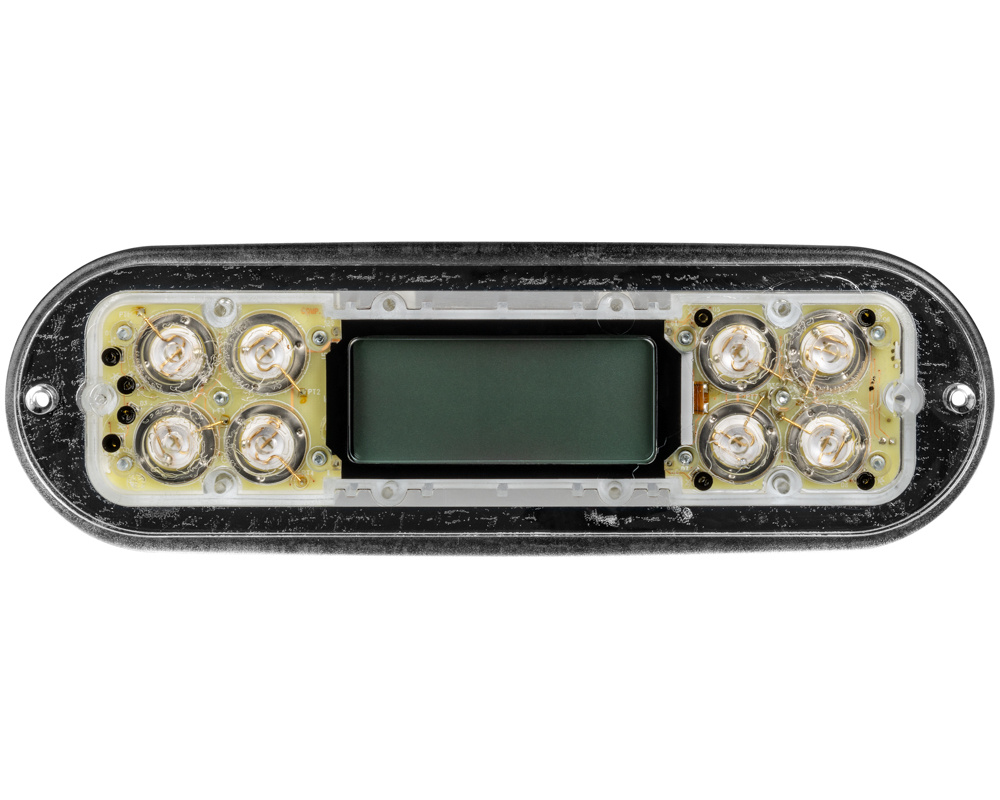

Balboa ML700 control panel

In stock
240,00€
incl. 20% VAT
Quantity:
Balboa ML700 control panel - Click to enlarge
Balboa ML700 control panel - Click to enlarge
Balboa ML700 control panel - Click to enlarge
Balboa ML700 control panel - Click to enlarge

Sold without overlay.

This keypad is compatible with the Balboa GL2000, GL2001, GL8000 M3 and GL84P control systems.

It has 8 buttons with the following functions:

  • Temperature up
  • Temperature down
  • Light
  • Jets 1
  • Jets 2
  • Blower OR Jets 3
  • Time
  • Mode/Program
This keyboard is supplied without its self-adhesive overlay, to be purchased separately.

Dimensions
Keypad : 249 x 79 mm
Cable : 2 m
Cut out area : 210 x 54 mm
See the type of plug in the photo.

Warranty
2-year Tubs Parts warranty

Balboa part numbers
Keypad with overlay: 52649-02
Keypad without overlay: 52798, 50563
