Balboa piezo button with LED
This stainless steel button can be used as an on/off control for a hot tub pump, blower or light, for example. It is a non-latching switch, which means that the contact is closed only while you are pressing the button, and it must therefore be hooked up to a timer relay to turn equipment on and off.
The Balboa Classic Line systems (which are no longer available for sale) had built-in timers and were designed to work with these buttons, but you can also use other systems.

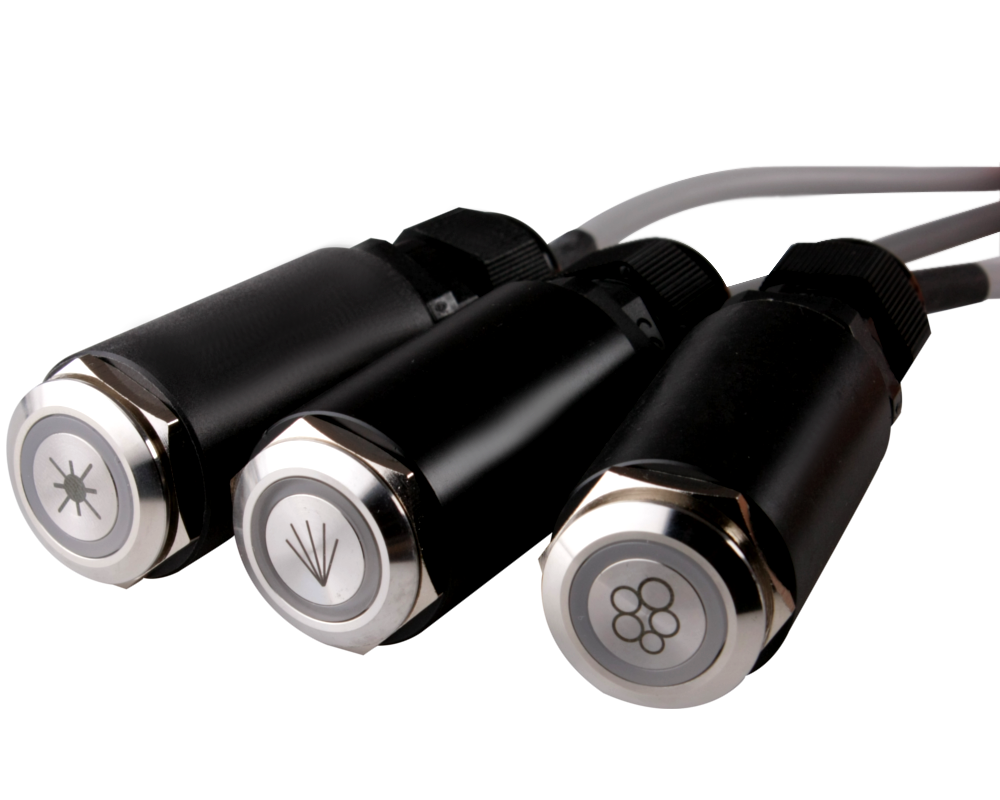

The button has an icon in the middle (available with a jet, blower, or light icon), surrounded by a ring that lights up in blue. If you connect the button to a Classic Line box, then the blue ring will light up when the corresponding equipment is turned on.

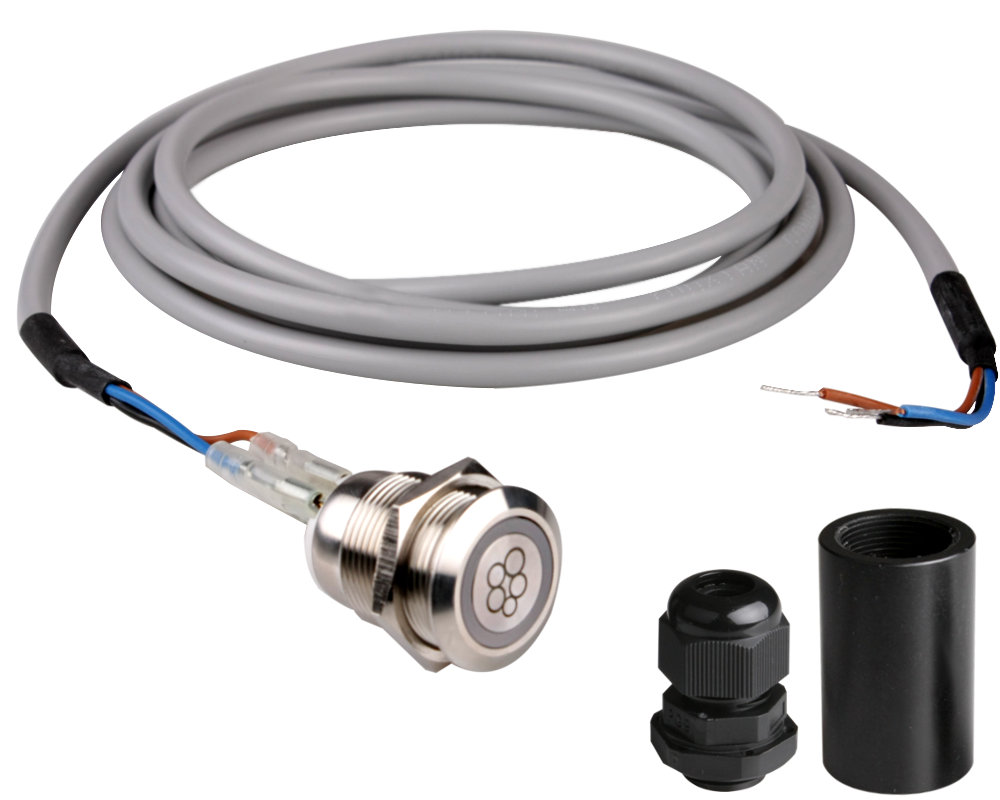

The button comes with a cable measuring approximately 150 cm, an o-ring and a nut to fix it in place.
Electrical specifications
Voltage: 3-6V
Maximum current (for the LED): 15 mA
Water resistance: IPX7 on the button side, IPX5 underneath
Operational temperature range: -20 à 70°C
Dimensions
Button diameter: 22 mm
Diameter of the hole to drill in the spa rim: 19 mm
Button total length: 65 mm
Cable length: 150 cm
Part numbers
Balboa: 21-1640-5
