Balboa redesigns its heater plugs

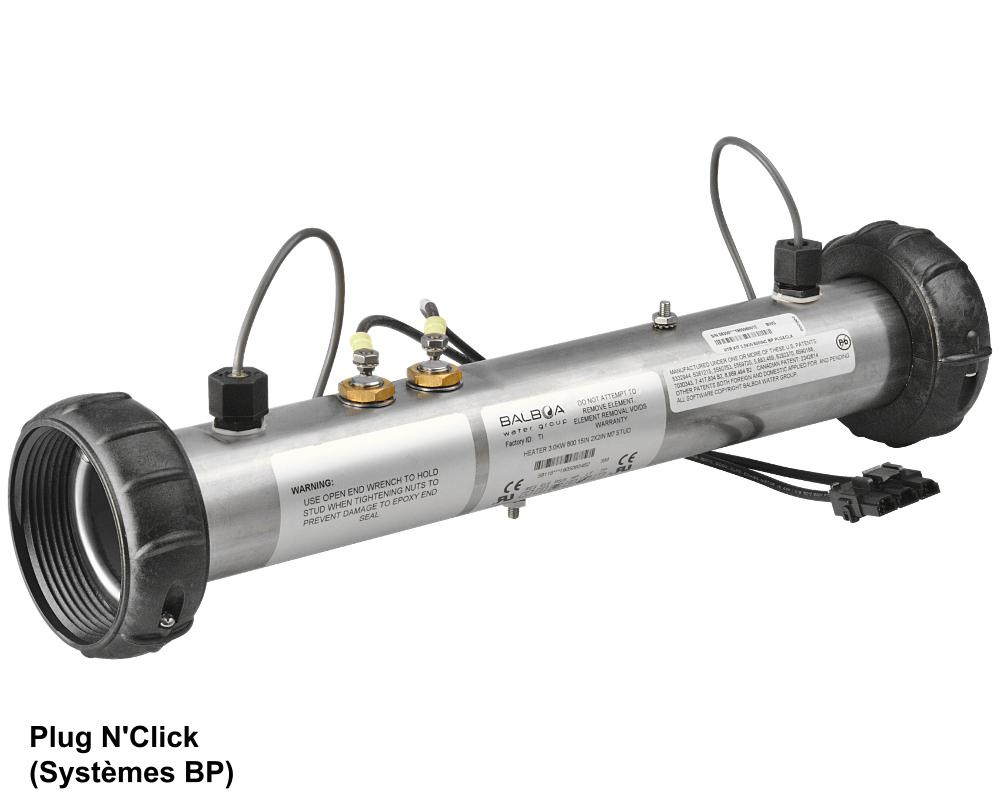

The Plug N' Click plug, which is already installed on almost all M7 heaters from the BP series (BP501, BP6013G1, BP6013G2, BP6013G3, BP2100G1), avoids the need for copper plates to connect the heater to the electronic board of your BP system and makes it much easier to replace your heater.

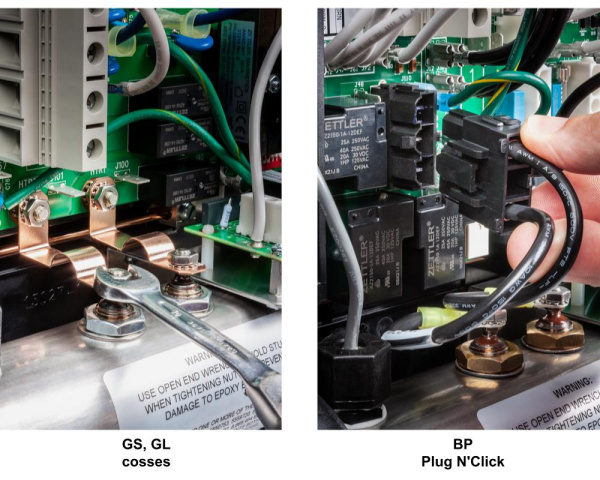

The Plug N' Click cable is directly connected to the two element straps and snaps onto the corresponding Plug N' Click socket on the BP system circuit boards: no more wrenches or copper plates to handle. From now on, simply plug and click the insulated Plug N' Click plug, for an easier and safer heater replacement.

Since 2021, Balboa sells all of its M7 heaters for BP systems (except for those made for the BP100, BP200 and BP200UX systems) with a Plug N' Click plug.

What about heaters for GS and GL systems with copper plates? Do not worry, many heaters (including the very popular 3kW M7, part numbers 58118, 58107) are now available either with a male Plug N' Click adapter (ref. 25263) for BP systems (picture 2), or with a male + female (ref. 25696) Plug N' Click adapter with straps for GS and GL systems (picture 3), where you will have to remove the copper plates of the electronic board and plug in the straps of the new connector (see video).
