Balboa sensor kit assembly - Temp/Hi-Limit

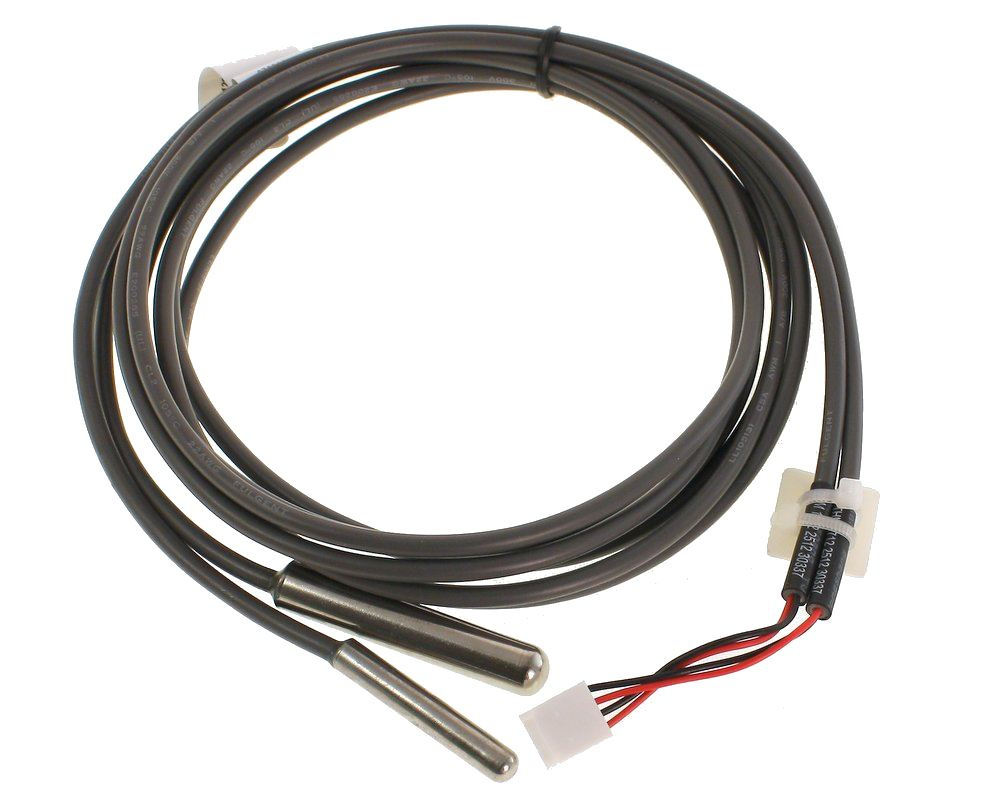

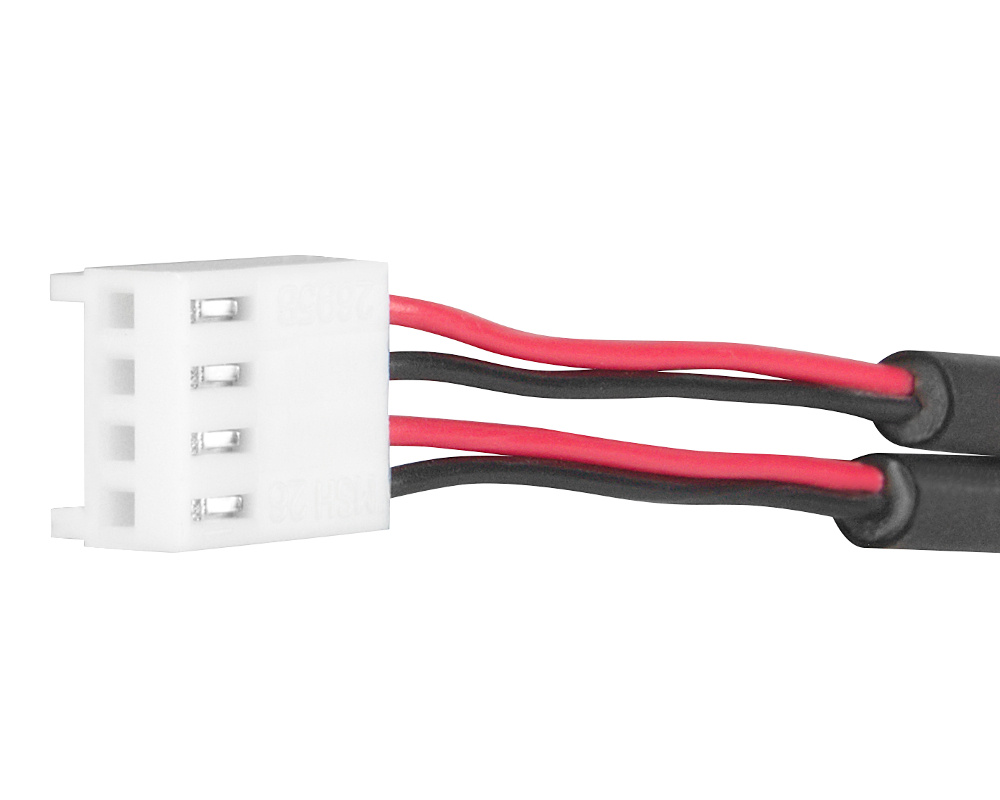

This kit contains two Balboa sensors that use the same socket: one for temperature and one for overheating protection (called "Hi-Limit").

The temperature sensor should be installed in a waterproof gland mounted in the shell of the hot tub, so that it is in direct contact with the water. The hi-limit sensor installs in a metal pocket on the outside of the heater.

It is compatible with almost all Balboa control systems that use a pressure switch.

Dimensions
Temperature sensor: 3/8" (9.5 mm) diameter
Temperature sensor length : 96" (240 cm)
Hi-Limit sensor: 1/4" (6.5 mm) diameter
Hi-Limit sensor length : 31" (80 cm)

Part numbers
Balboa: 30337 (replaces 30288)
Dimension One: 01560-76
Hydropool / Clair Azur : 4535049
Dream Maker Spas : 400782
