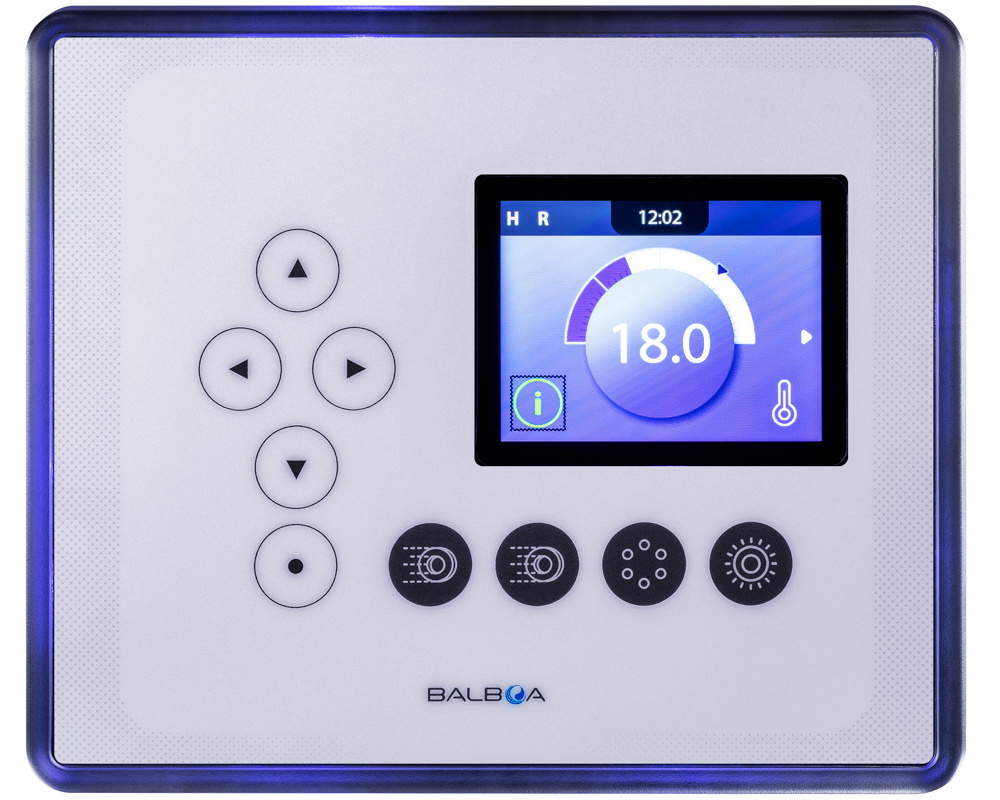

Balboa TP740 control panel

Sold without overlay.

The TP740 keypad is compatible with Balboa BP series control systems with software version 7.0 or higher: BP200G1, BP200UX, BP6013G1, BP6013G2, BP6013G3, BP2000, BP2100G1, BP8.

Compatible with Clim8zone and Clim8zone II heat pumps, the TP740 can manage up to 3 pumps and auxiliary equipments (bba3, ChromaZon3).

The TP740 offers 9 practical keys:

• 5 for easy menu navigation
• 4 to control equipment such as jets, blower and lighting

as . It will fit into the same cutout

Thanks to its large LCD screen, it's a suitable replacement or can be used in place of SpaTouch 3 or SpaTouch 4 touchpads for those who prefer a keyboard without a touchscreen.

This keyboard is supplied without its self-adhesive overlay, which must be purchased separately.

Dimensions
Keypad : 170 x 140 mm
Cut out area : 115 x 75 mm
Thickness (screen): 12 mm

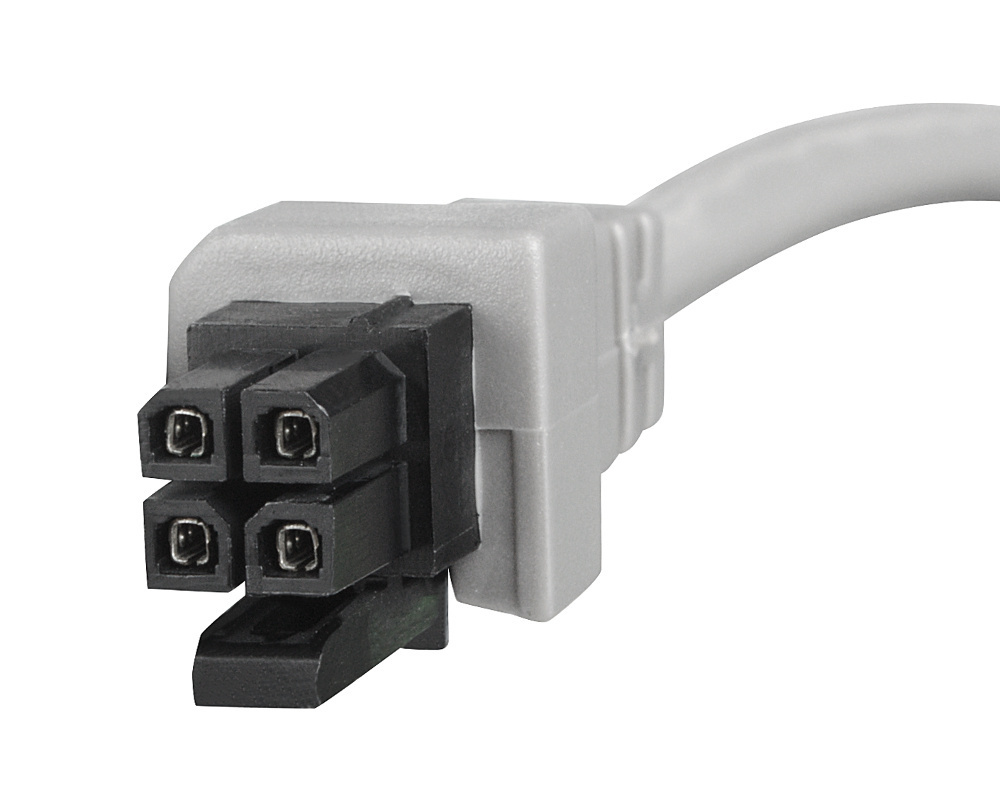

See the photo for the type of plug.

Warranty
2-year Tubs Parts warranty

Balboa part numbers
Keypad only: 57531
Overlay: 17630
