Balboa TP800 control panel

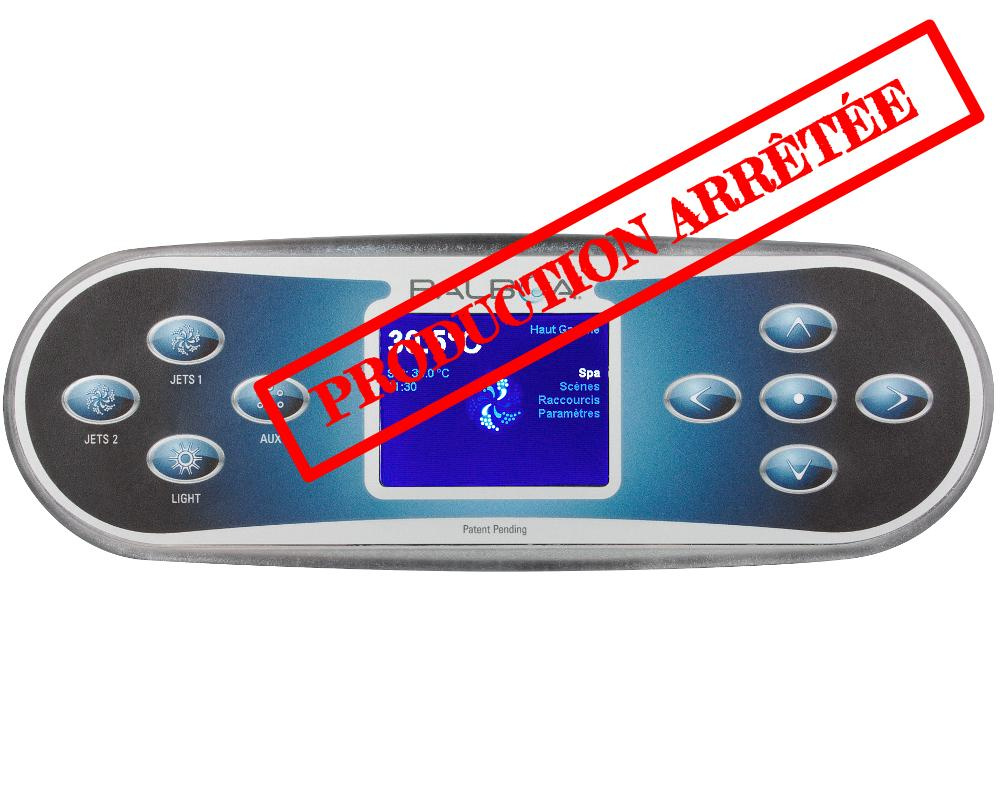

The TP800 is no longer manufactured by Balboa and has been replaced by the TP700 (use the version with 2 buttons for jets).

The TP800 is compatible with the Balboa BP200G1, BP200UX, BP6013G1, BP2000 and BP2100 G1 control systems.

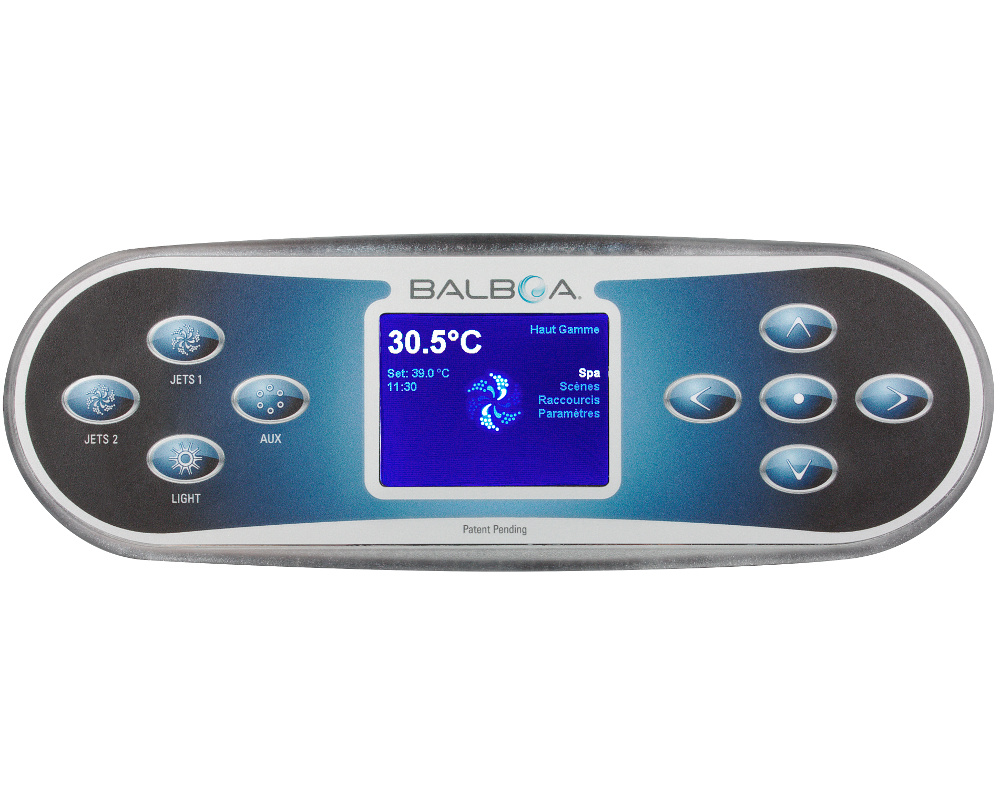

It has 9 buttons: Jets 1, Jets 2, Light and Auxiliary on the left hand-side of the screen, and 4 navigation buttons plus a select button on the right hand-side.

The keypad comes with its overlay, which is also available as a spare part. A specific overlay for Wellis spas is also available.

Dimensions
Keypad : 254 x 89 mm
Cut out area : 230 x 60 mm

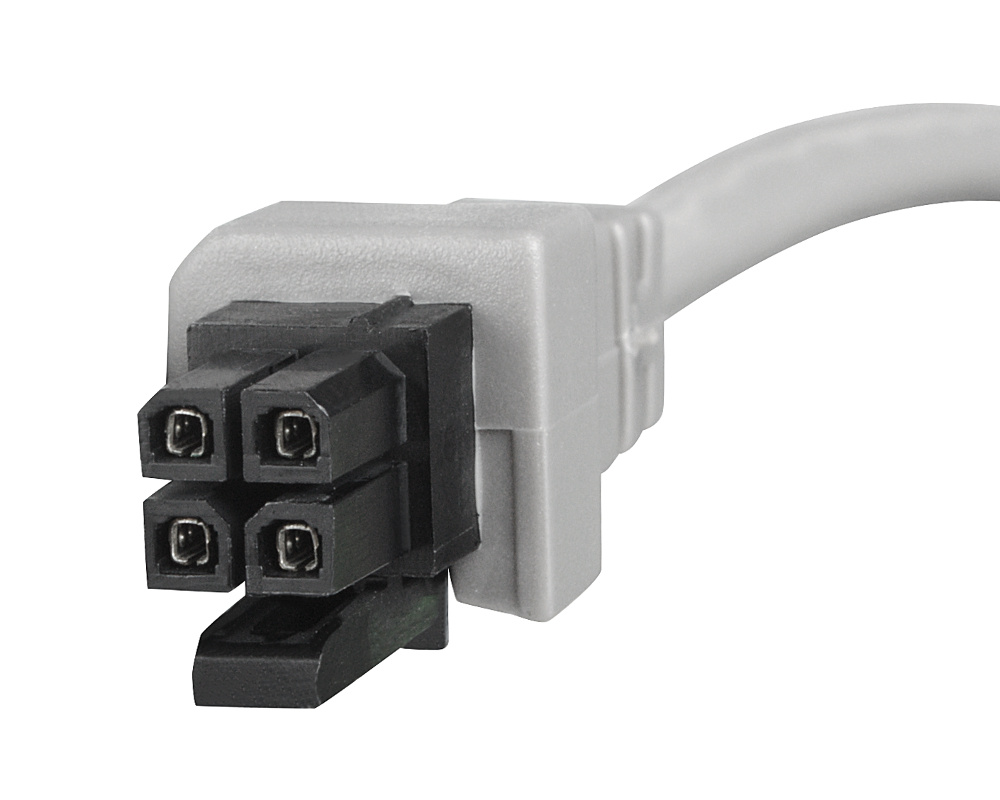

See the photo for the type of plug.

Balboa part numbers
Keypad with its overlay : 50261-05 or 57241 (replaces 50261-09)
Keypad without its overlay : 50204
Wellis : ACM0543
Marquis Spas : 650-0721
