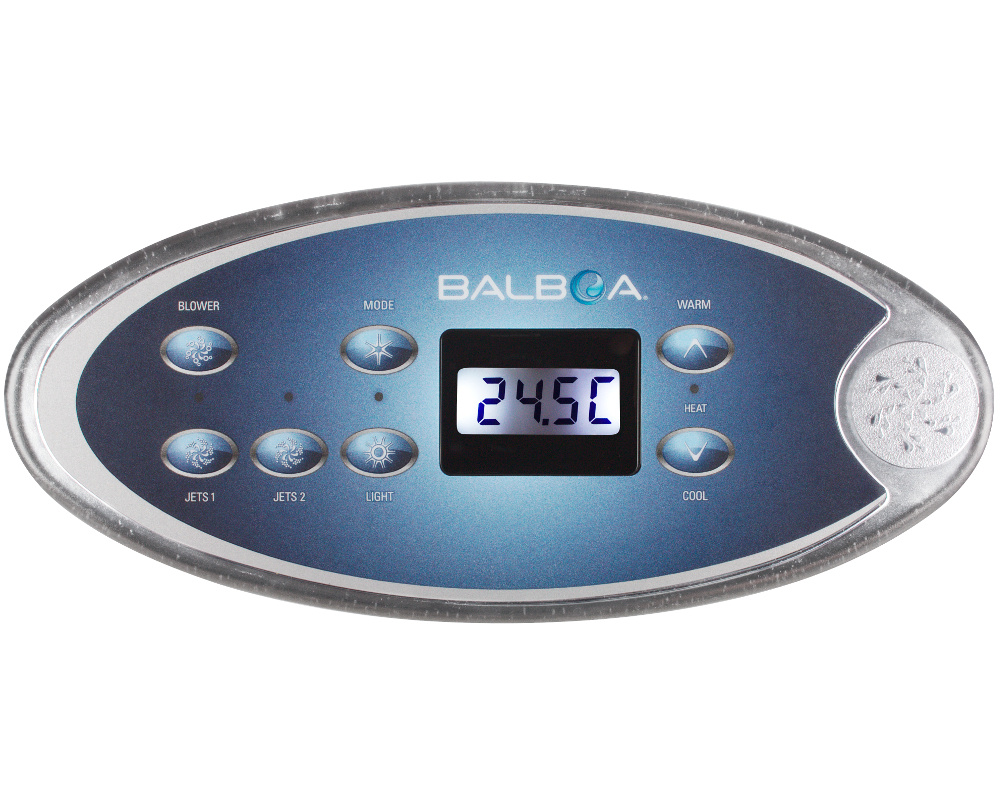

Balboa VL702S control panel
This keypad is compatible with the Balboa GS501SZ, GS510SZ and GS520SZ control systems.
This keypad is indistinguishable from the ML554 when viewed from the side of the spa, but the two models are not compatible with one another (the ML554 is used with GL-series systems, whereas the VL702S works with the GS range). To confirm which type of keypad you have, either check the sticker on the underside of the keypad, although it is not always easily-accessible, or check the type of control system or - usually the best option - check what type of plug is on the keypad cable, and compare it to the photos.
The keypad has 7 buttons:
- Temperature up
- Temperature down
- Light
- Jets 1
- Jets 2
- Blower
- Mode
Dimensions
Keypad: 262 x 117 mm
Cut out area: 165 x 56 mm
Cable: 2 m

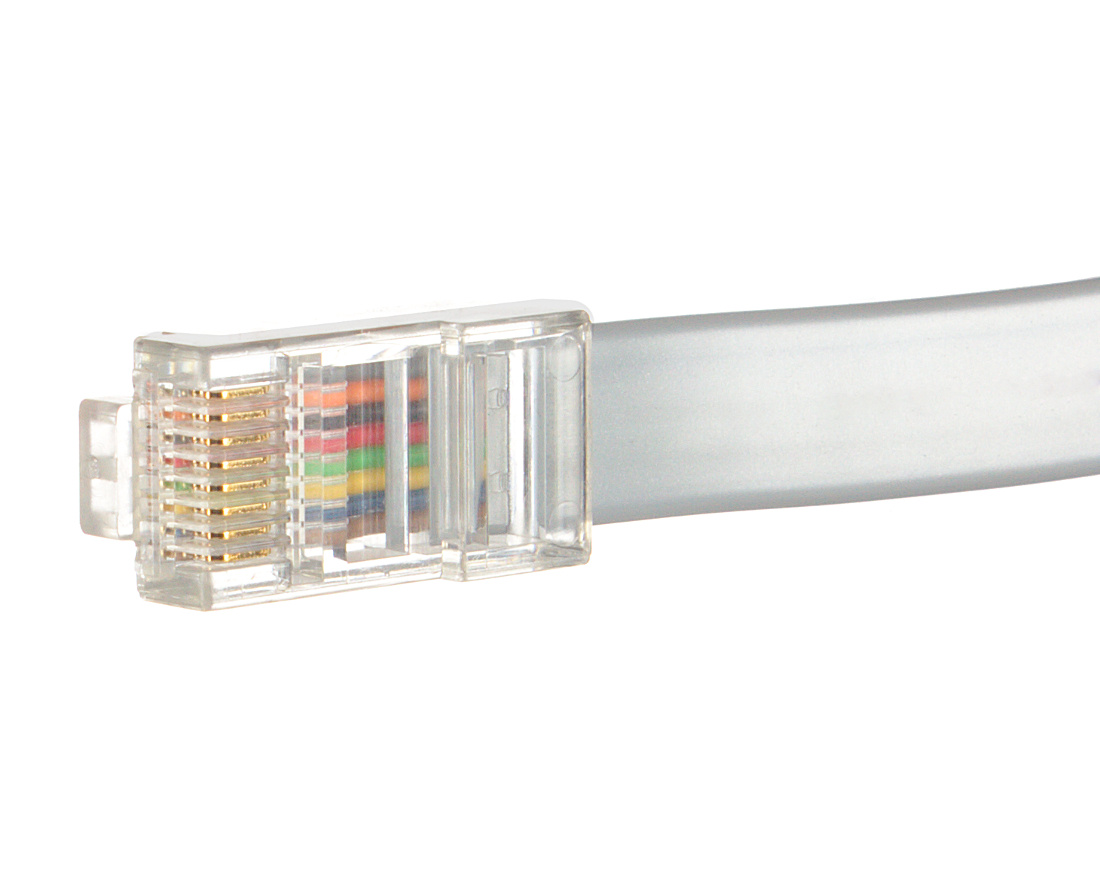

This keypad uses a RJ45 plug (see photo).
Warranty
2-year Tubs Parts warranty
Balboa part numbers
Keypad with overlay: 54652
Keypad without overlay: 54539
