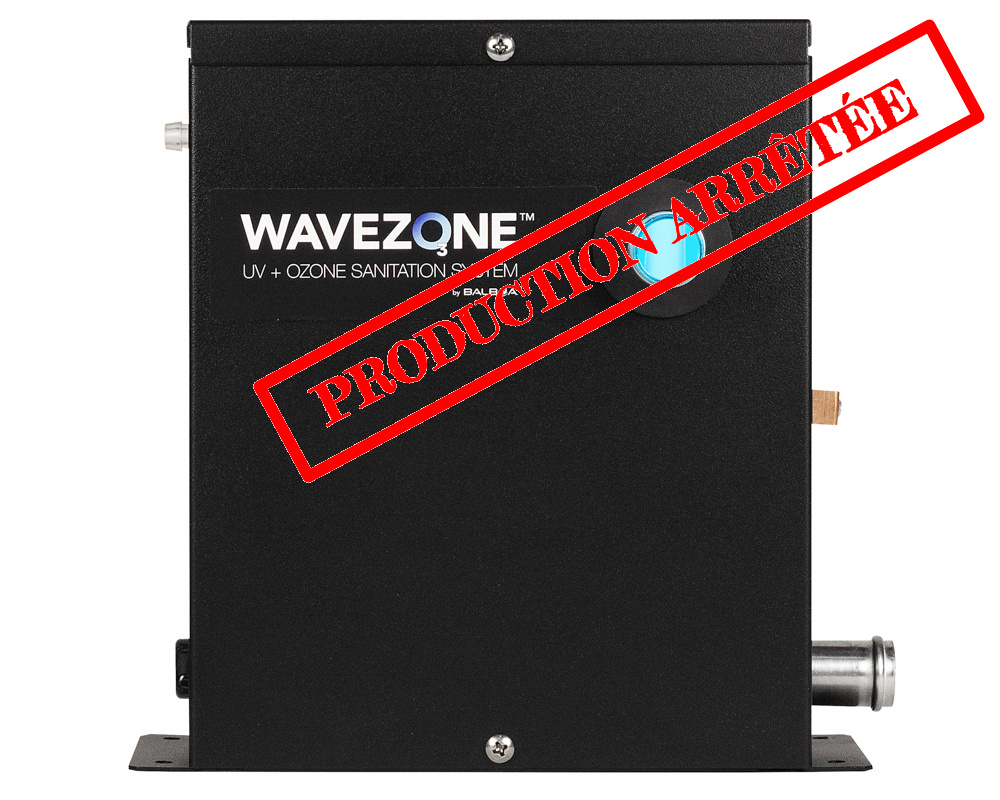

Balboa Wavezone Ozone + UV sanitation system

Due to new European regulations concerning ozone generators, the Balboa Wavezone is no longer authorized for sale in the EU.

The Balboa Wavezone water disinfection system combines a corona discharge ozonator with a UV-C disinfection system for enhanced sanitizing power: water impurities such as viruses and biological contaminants are effectively and naturally eliminated by oxidation.

Specifically designed for all spas (with the exception of large-capacity spas such as swim spas), the Wavezone provides deep disinfection in addition to your chemical treatment (chlorine, bromine, or active oxygen), which it allows you to reduce.

A LED indicates the proper functioning of the Wavezone: green when the ozonator and the UV-C lamp are operating normally, and red in case of a malfunction.

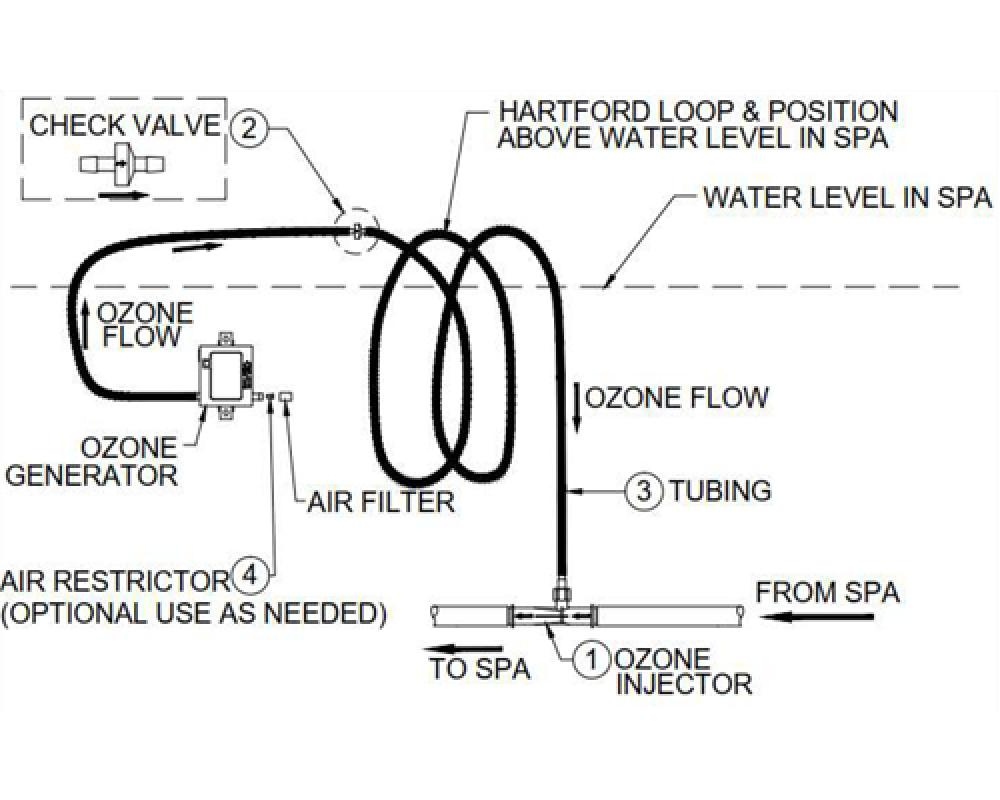

Pre-wired with a 4-pin AMP plug to connect to the 230V output of your control system, the Wavezone is ideal for a new installation, and its connection to a dual-speed pump or a circulation pump circuit is very easy with the installation kit (to be purchased separately). Do not hesitate to contact us for further advice.

Balboa recommends replacing the UV-C lamp every 12 months and cleaning the quartz tube every 6 months.

Technical specifications
Ozone production: 50 mg/hour
Power: 7W
Current rating: 0.5A
Operating voltage: 230V
Flow rate: 27 liters/min (6 GPM)

Box dimensions
Length: 209 mm
Width: 173 mm
Depth: 84 mm

Pipe connection
Outside diameter barbed end: 21 mm, for 3/4 inch pipe

Part numbers
Balboa : 59326-01
