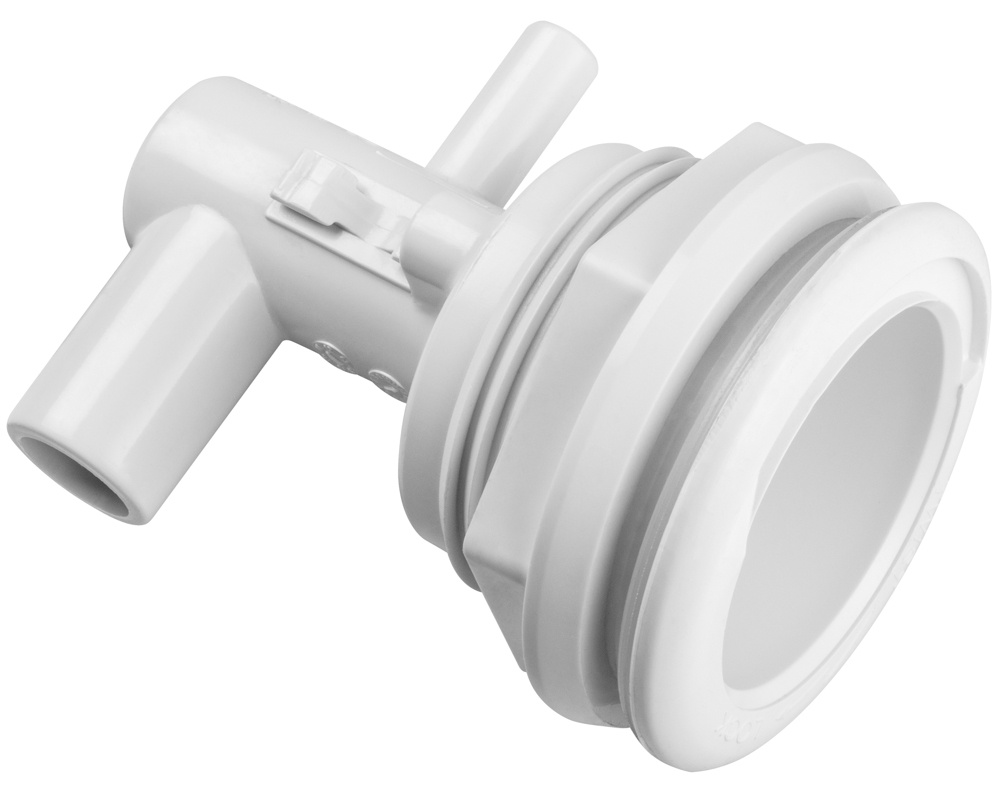

CMP Pro-Loc 300 jet body, white

This is the socket for all of the CMP Pro-Loc 300 jets. It is attached to the spa shell and the jet is snapped-in. The fixing nut and the gasket are supplied.

The water flow through the socket draws in air through the Venturi effect, which adds bubbles to the water jet and increases the power of the massage. The air inlet of each nozzle is normally connected to a manifold, and then to a valve, so that the air/water mixture in the jets can be modified.

Despite very great similarities and identical dimensions, this socket is not interchangeable with the Typhoon 300 white model from CMP.

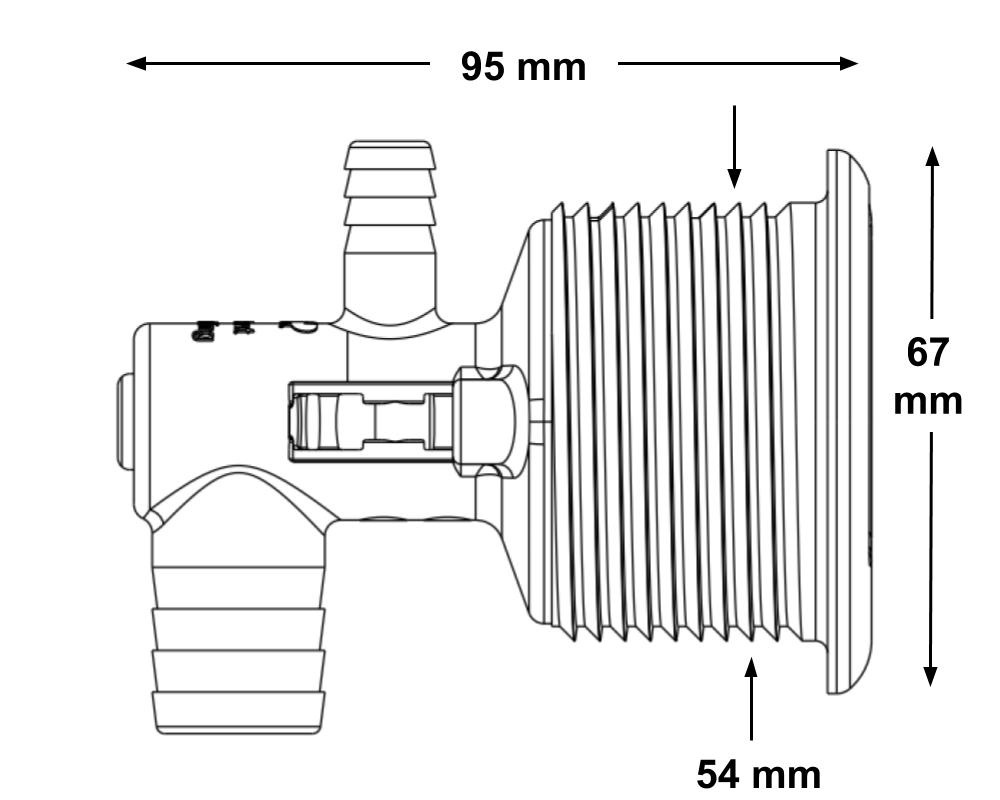

Dimensions
Drilling diameter : 54 mm
Diffuseur length : 92 mm
Face diameter : 67 mm

Connection
Water: 3/4 inch smooth barb
Air: 3/8 inch smooth barb

Part numbers
CMP : 29232-200-200
