DEL Ozone Spa Eclipse ozonator for Sundance Spas

DEL Ozone Spa Eclipse ozonator for Sundance Spas - Click to enlarge
DEL Ozone Spa Eclipse ozonator for Sundance Spas - Click to enlarge
DEL Ozone Spa Eclipse ozonator for Sundance Spas - Click to enlarge
DEL Ozone Spa Eclipse ozonator for Sundance Spas - Click to enlarge

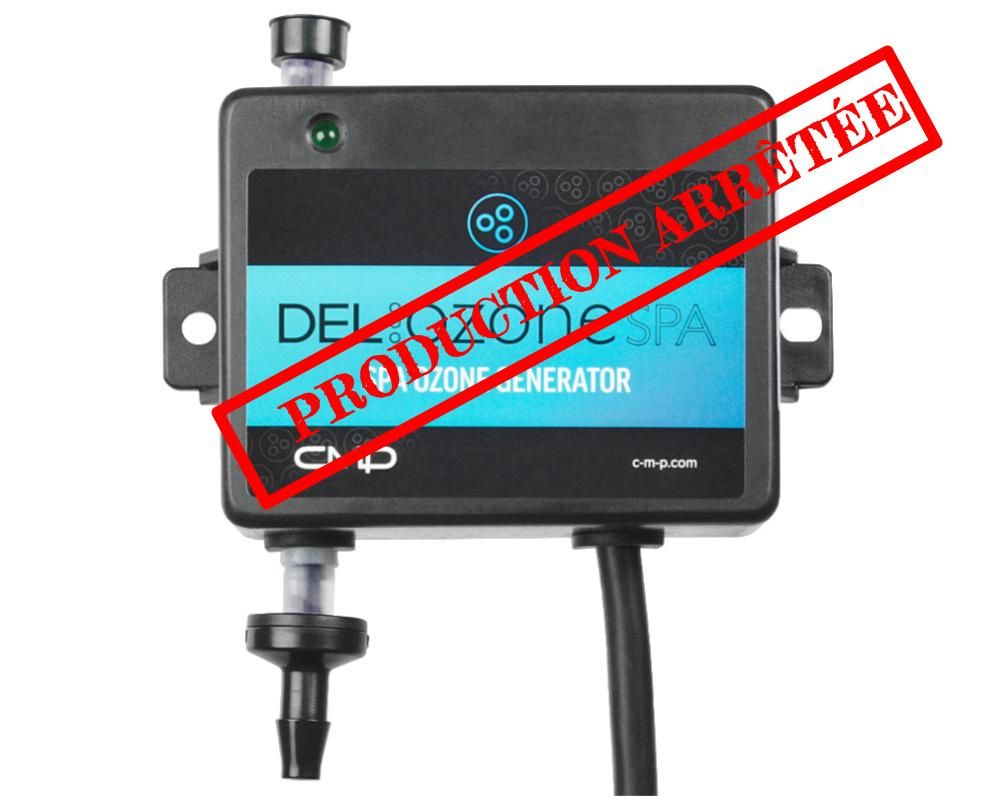

Due to new European regulations concerning ozone generators, the DEL Ozone Spa Eclipse for Sundance Spas is no longer authorized for sale in the EU.

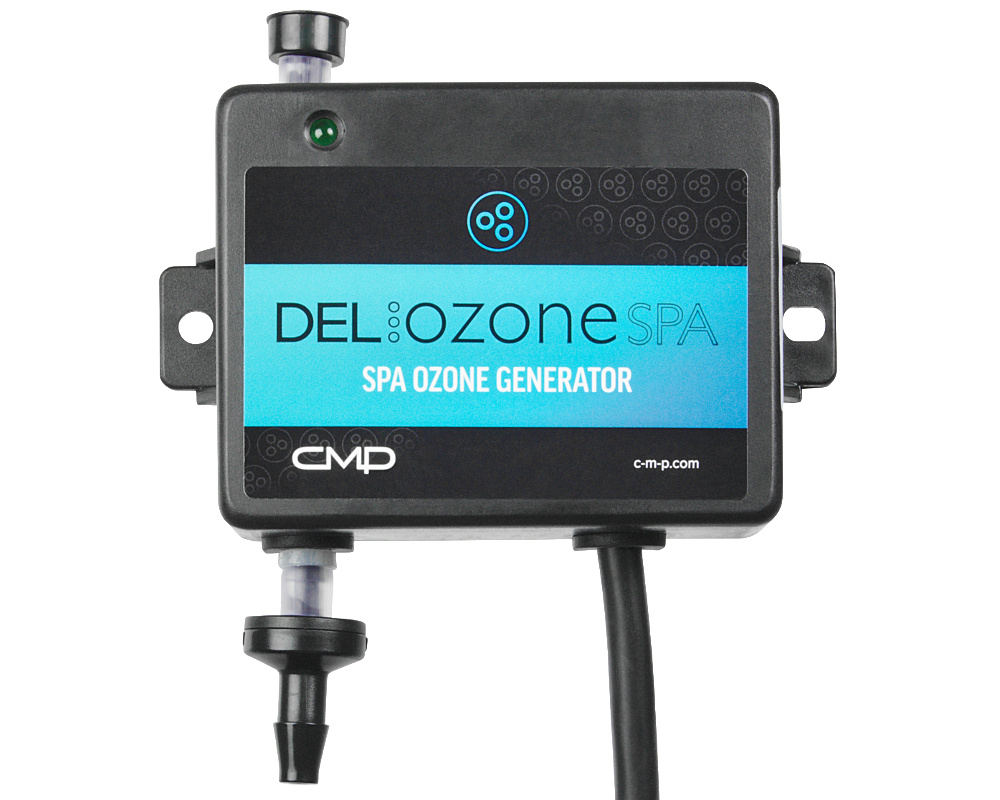

This Del Ozone by CMP Spa Eclipse ozonator creates ozone using corona discharge. It is has been installed on Jacuzzi and Sundance Spas hot tubs manufactured since 2010.

The Spa Eclipse is also marketed as the "Advanced Plasma Gap (APG-U) Ozonator" from Del Ozone. Sundance Spas gave it a different name.

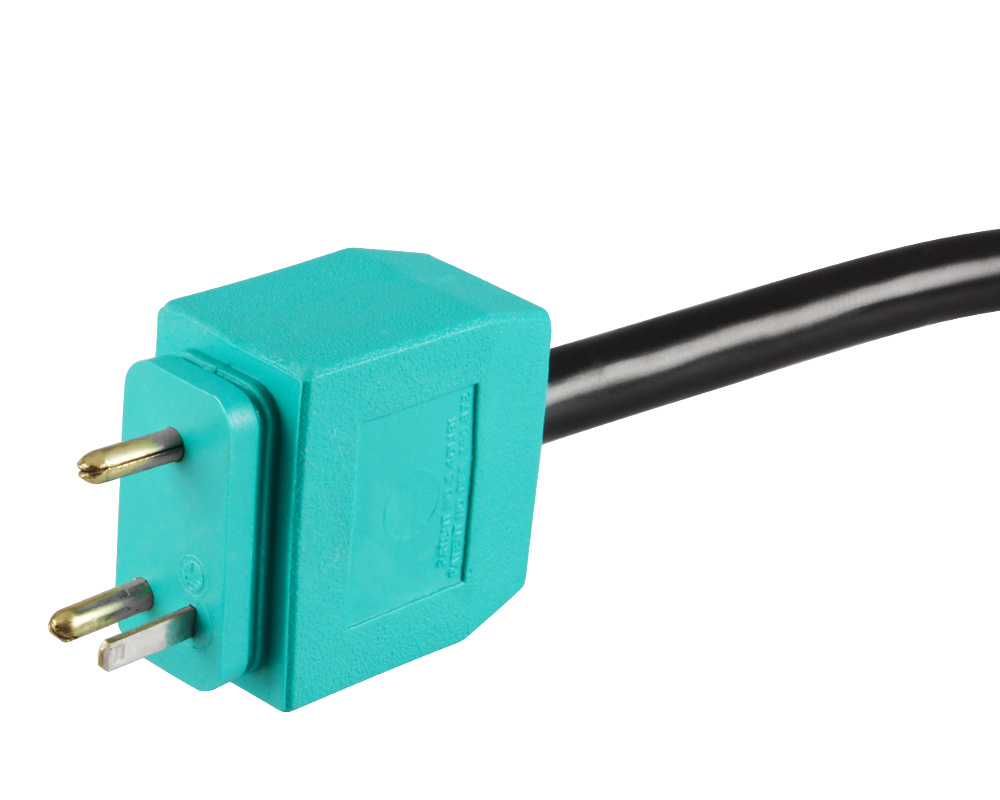

It comes with 110 cm of cable and a special Sundance Spas and Jacuzzi J&J plug.

An ozone-resistant 1/4" black vinyl hose], to connect the ozonator to the injector, and a one-way air valve are included. The injector is not part of this kit, but you can use your old one. If ever you would like to buy a new injector, Tubs Parts has several available.

Dimensions
Length: 125 mm
Width: 85 mm
Depth: 60 mm

Technical specifications
Ozone production: 50-70 mg/hour
Lifespan: 5 years, based on 8 hours' use per day

Part numbers
Sundance Spas : 6473-150
Del Ozone : APG-26, ECS-1RPSD-U
Also a replacement option for: SD6472-625, SD6473-124A

Documentation
