Dimension One heater - C3550-1

Only 2 in stock
540,00€
incl. 20% VAT
Quantity:

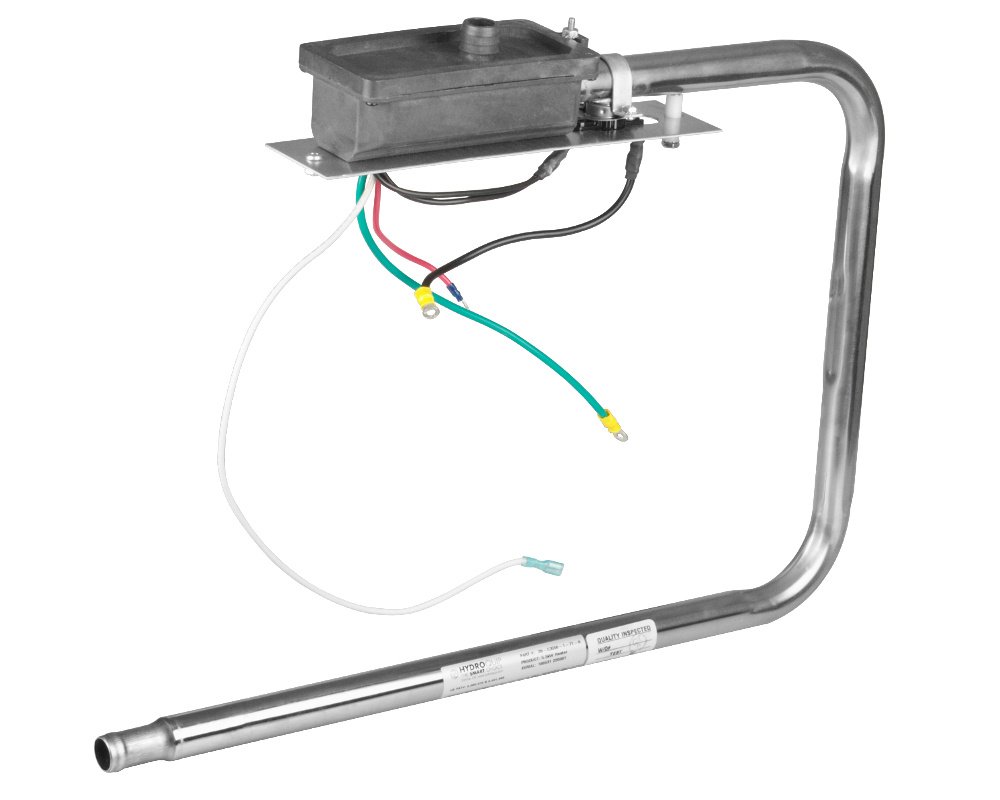

Dimension One heater - C3550-1 - Click to enlarge

This 5.5 kW trombone style heater was installed by several spa brands, including Dimension One, but is no longer available for sale. We only have one left. It was used with Gecko control boxes model M-Class and Laing circulation pumps.

You can replace it with a C3552-1 heater of 5.5 kW, or in some cases with a Jacuzzi 6500-401 of 2.7 kW. Please contact us for further information.

Technical specifications
Power supply: 220-240V, 50 Hz
Power: 5.5 kW

Wiring
The table below shows the different ways of wiring the heater in order to have different powers. For options B and C, you must terminate and insulate the unused wire (white for option B, red for option C).

Wiring Power L1 L2
A 5500 W Red & White Black
B 3400 W Red Black
C 2100 W White Black

Warranty
2-year Tubs Parts warranty

Part numbers
ThermProducts: C3550-1 (can be replaced by C3552-1)
HydroQuip : 26-C3550-1-7T-K ( can be replaced by 26-C3552-1-7T-K )
Replaces: SHH-5500-NH-6871, SHH-5500-NH-6771, SHH-5200-NH-6785, NHH-5500-NH-7328
