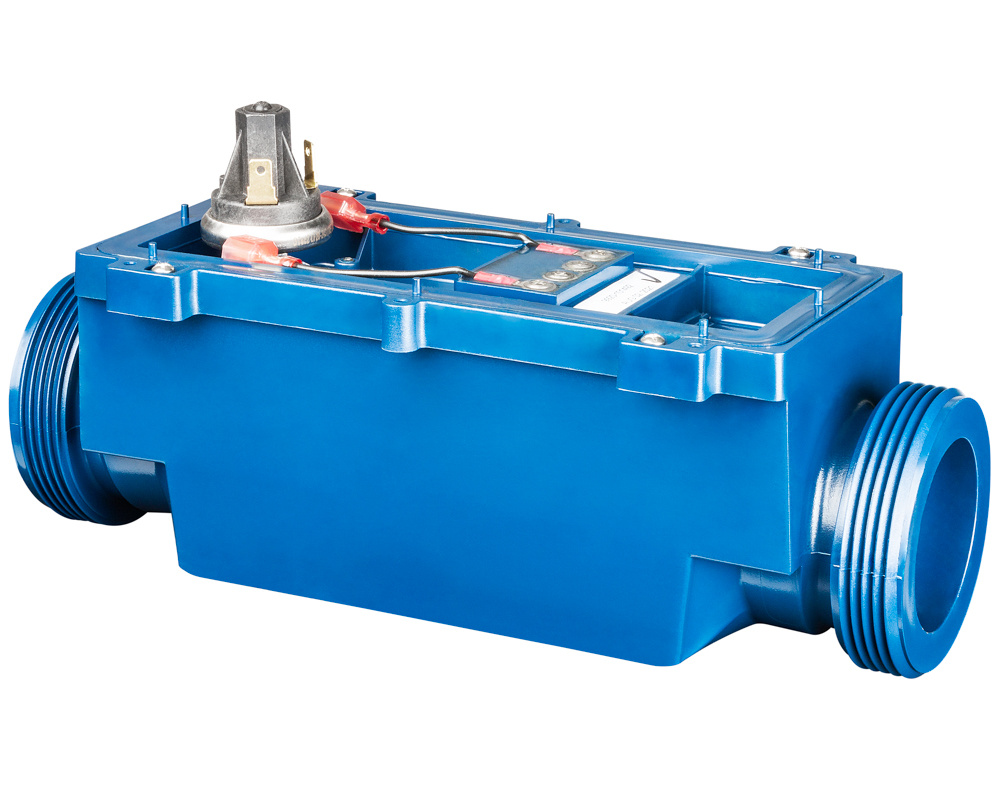

Electrolysis module for Gecko in.clear

This electrolysis module, containing graphite electrodes, is a replacement part for Gecko's in.clear bromine generator. The life of the graphite cell is estimated at about 30,000 hours under normal use of your spa. It is possible that the duration of this period will be reduced if the spa is used very often and with a fairly large number of users.

It is equipped with its pressure switch and two connection plugs.

in.clear is made for the following Gecko Alliance's control systems: in.ye-3, in.yj-5, in.yt-7, in.xm and in.xe.

With Gecko's in.k500, in.k800, in.k1000 and in.k1001, in.clear is controlled from the main keypad of the spa system.

Dimensions
Length : 276 mm
Width : 115 mm

Connections
Male threaded connectors with an outside diameter of 78 mm (type 2" MBT), for 1.5" or 2" unions.
A connection to a to 3/4" tubing is also possible with the union which includes a reducer.

Part numbers
Gecko : 9920-101451, 9920-101492
Wellis : ACM0766 (complete system)
