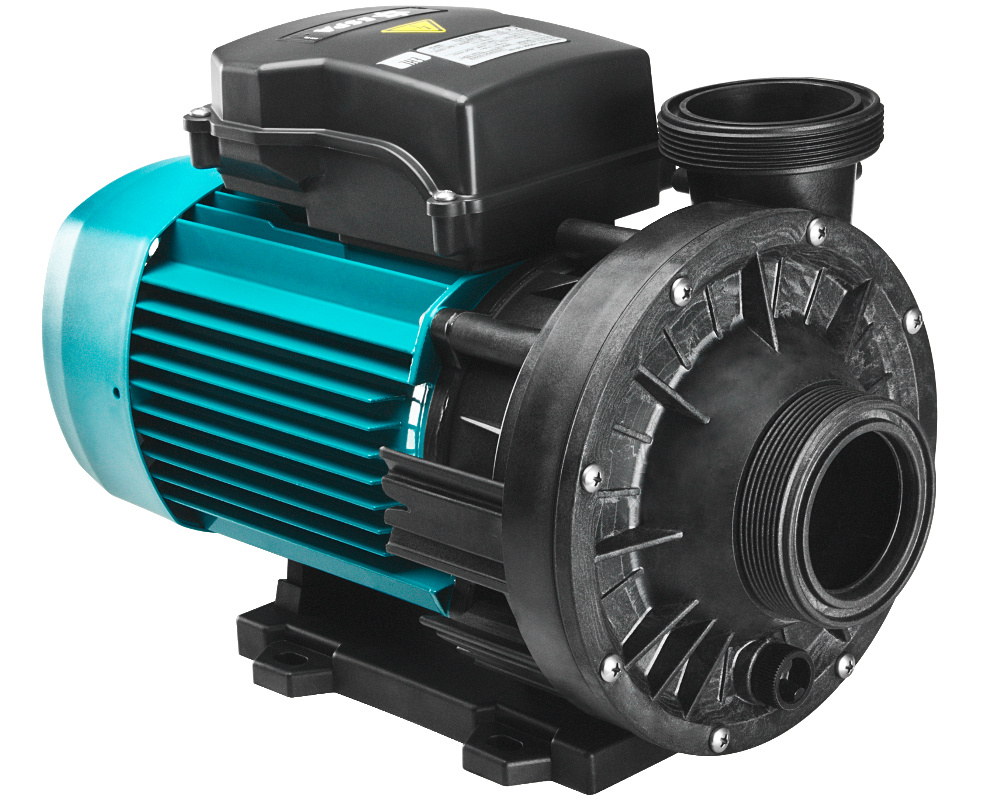

Espa Wiper3 single-speed pump
The Espa Wiper3 single-speed pump is a powerful massage pump designed to supply the spa or hot tub's massage jets.
The Wiper3 is also available in a two-speed version.

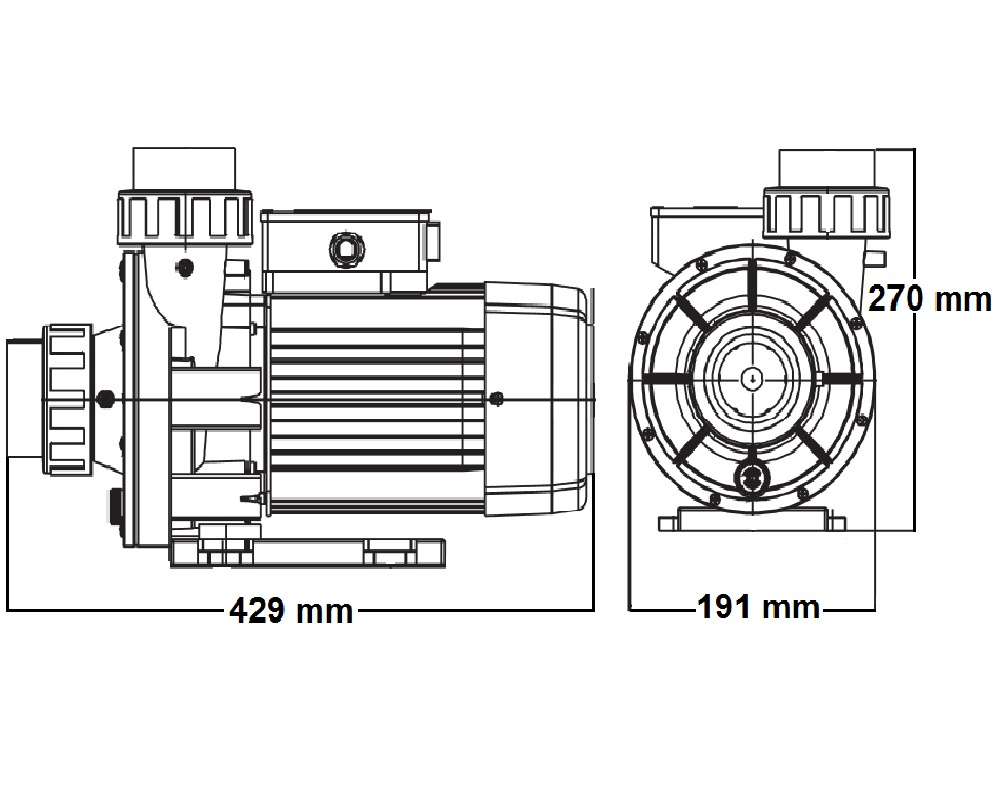

Dimensions
Length: 429 mm (union included)
Height: 270 mm (union included)
Width: 191 mm
Technical specifications
This Espa Wiper3 pump is available in three power ratings :
- 150 M: Power 1,4 kW / Max. flow rate 500 litres/min (1,5 HP)
- 200 M: Power 1,9 kW / Max. flow rate 700 litres/min (1,9 HP)
- 300 M: Power 2,5 kW / Max. flow rate 950 litres/min (2,5 HP)
This pump is supplied with unions (and o-rings) for 63 mm pipes
Cable and plug
The Espa Wiper3 pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
You can also choose to have it pre-cabled by our team with an AMP plug or a mini J&J plug.
An in.link plug (220 cm long) is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.
Warranty
2-year Tubs Parts warranty
Part numbers
150M: PP04405
200M: PP04415
300M: PP04420
Plug types
AMP plug
J&J plug
in.link plug
