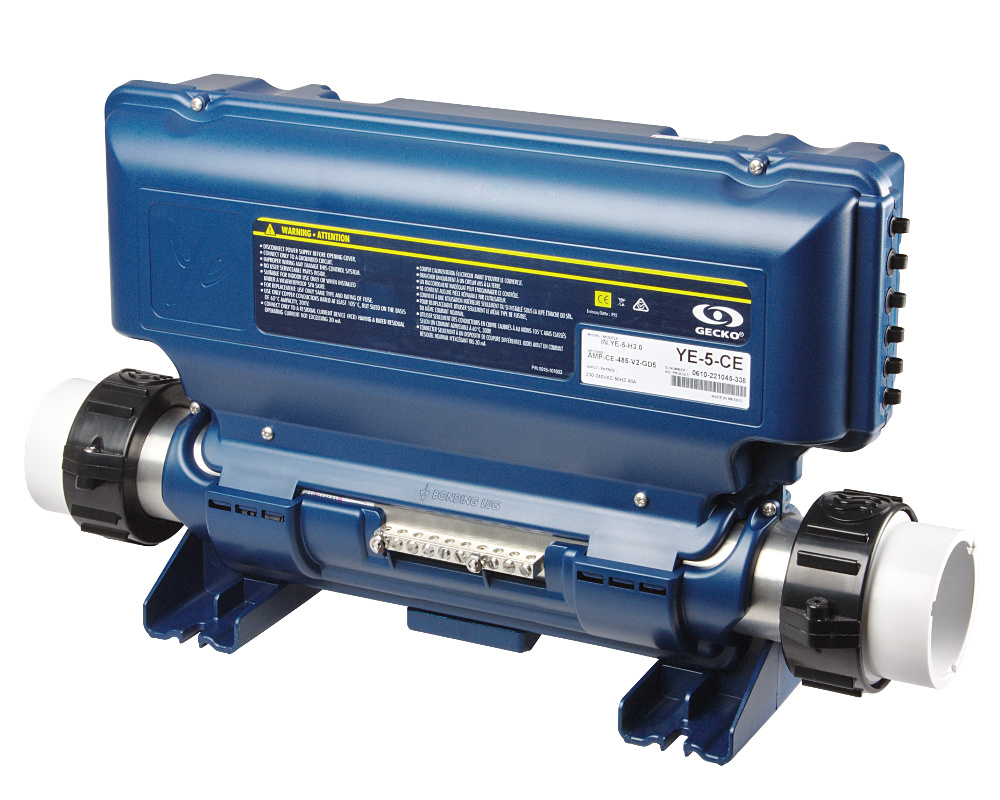

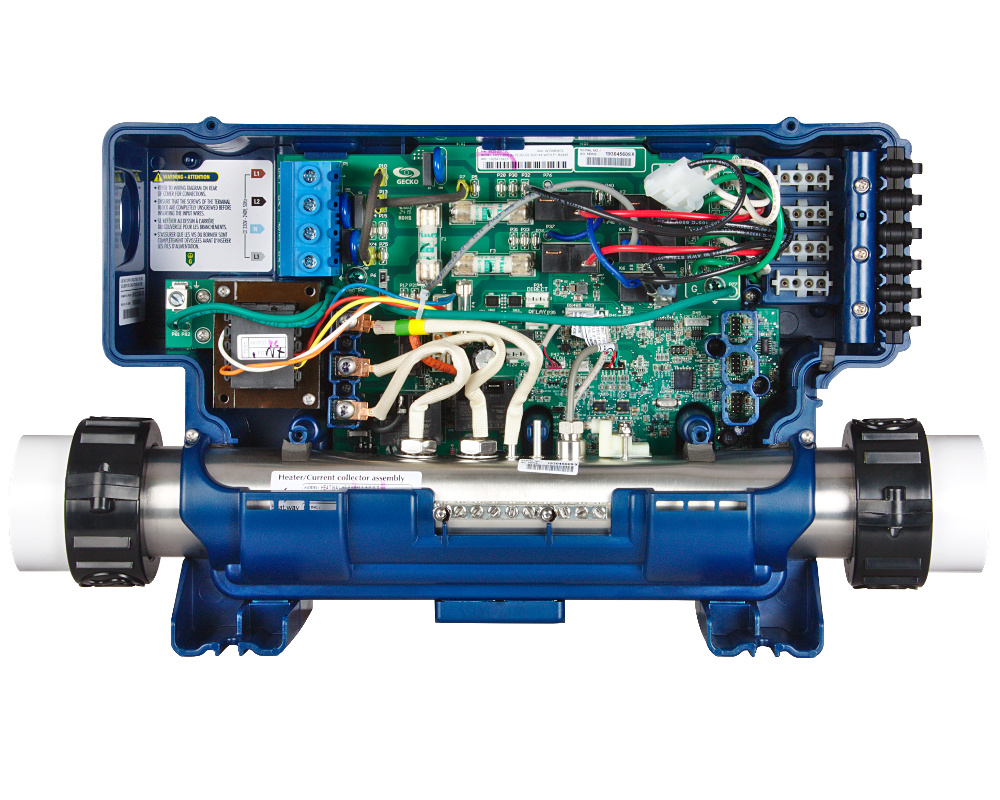

Gecko in.ye-5 control system

The in.ye-5 control system combines reliability and simplicity. It can manage up to 5 components, including pumps, blower and an ozonator, plus a light. A two-speed pump counts as 2 components.

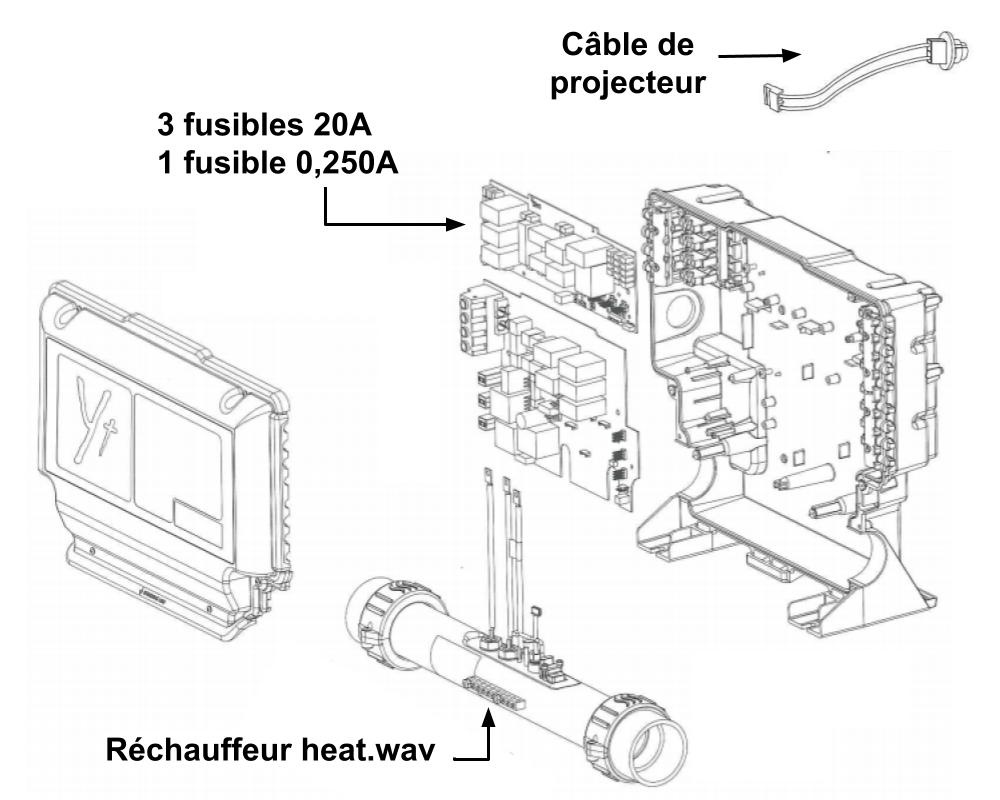

The in.ye-5 is equipped with a 3kW heater featuring the in-flow system, an electronic protection against low flow or dry-fire situations, which is much more reliable than mechanical water flow sensors.

The very simple configuration is done via the keyboard by selecting one of the pre-recorded configurations. If you have any questions about the configurations, please do not hesitate to contact us.

No matter which configuration you choose, the system is also equipped with a 230V output for an ozonator, an auxiliary 230V output (music, for example) and a 12V output which enables you to connect a light with a cable (not included).

Dimension One spa owners, your replacement system may have specific requirements. Please contact us before ordering.

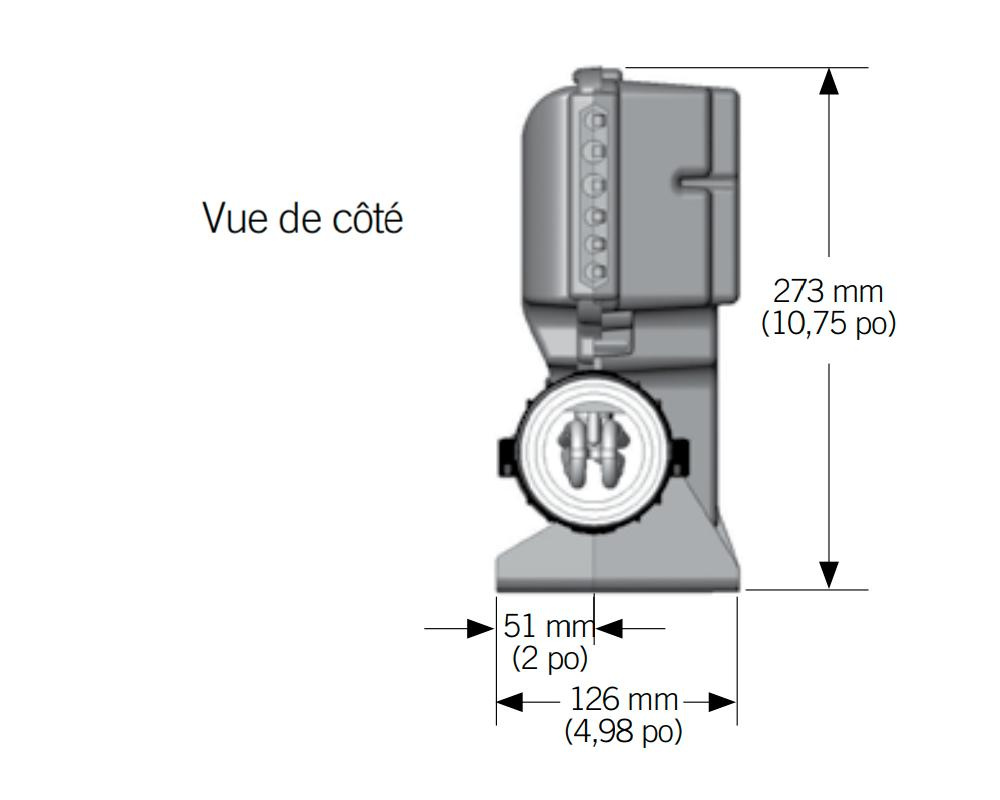

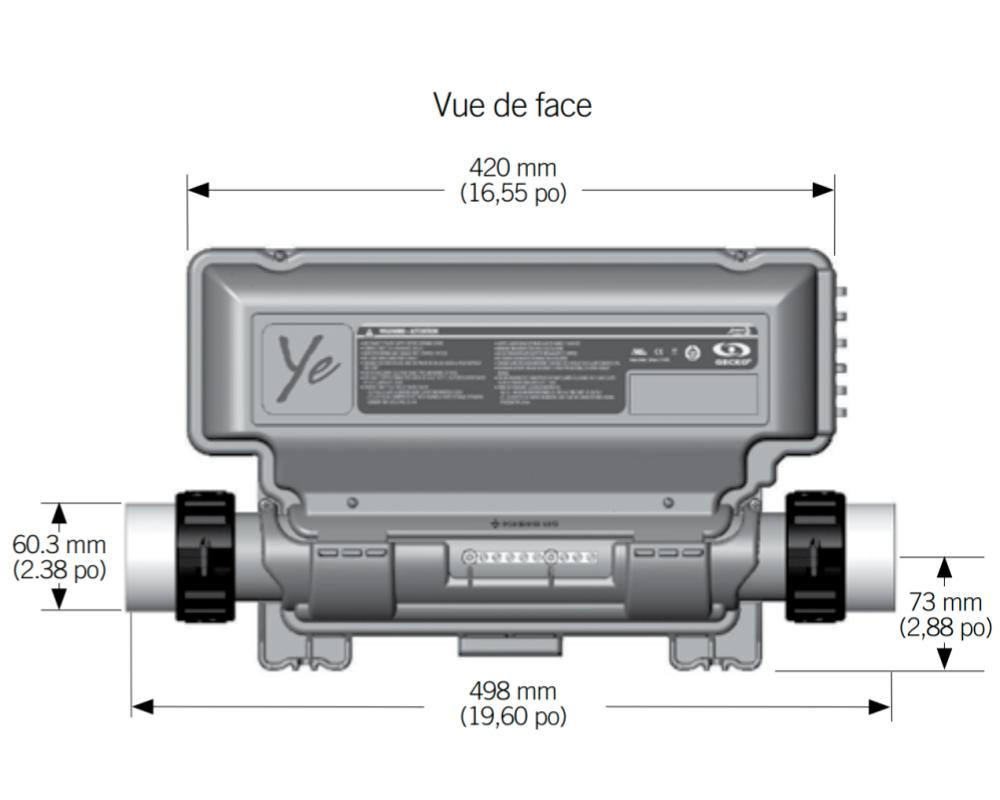

Dimensions
Box width: 420 mm
Max. width with connections: 498 m
Height: 273 mm
Depth: 126 mm
Plumbing connections to heater: 2-inch (connections and o-rings included)

Technical specifications
Electrical supply: 230 V, 50 Hz ( a three-phased system is possible)
Four 230V AC connections on 4 male pins AMP output connectors
One 12V AC connection
Three outputs for in.link plugs: one main keypad connector and two communication links (in.stik, in.terface, in.touch2, in.clear, in.grid and in.stream2)

Compatible with the following keyboards
Main: in.k200, in.k300, in.k336, in.k8, in.k35, in.k450, in.k500, in.k600 (the simplified interface only), in.k800, in.k1000, in.k1001

Auxiliary: in.k120

Warranty
2-year Tubs Parts warranty

Part numbers
Gecko: 0610-221045
Wellis: ACM0756
