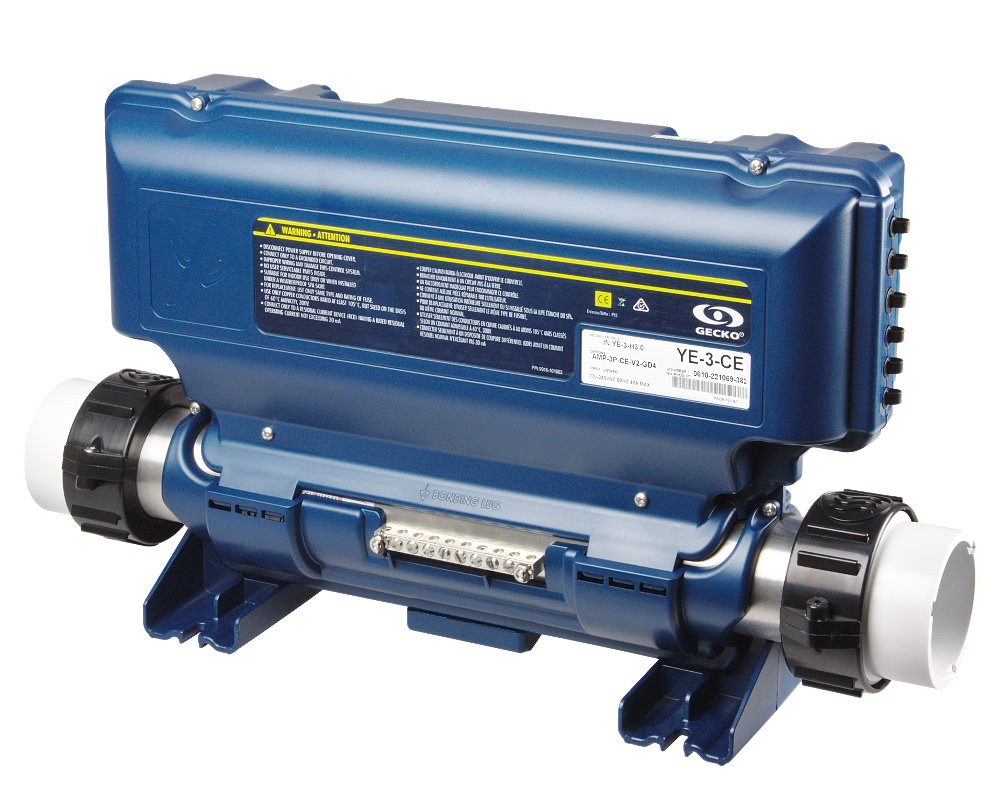

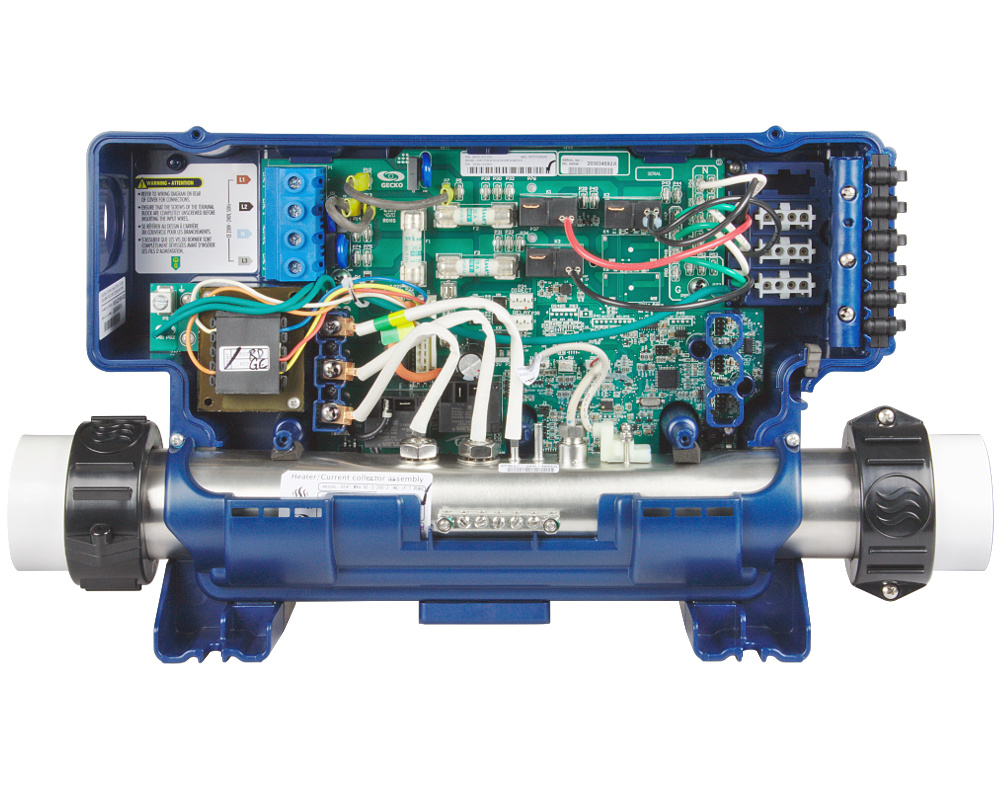

Gecko in.ye-3 control system

The in.ye-3 control system is the little brother of the in.ye-5 and has the same features as its predecessor, combining reliability and simplicity. Ideal for entry level spas, the in.ye-3 can manage up to 3 elements : pump 1 with 1 or 2 speeds, pump 2 with 1 or 2 speed, circulation pump or ozonator. Note that a two-speed pump will take the place of 2 elements.

The in.ye-3 is equipped with a 3kW heater featuring the in-flow system, an all-electronic dry-fire protection that eliminates the burden of adjustments, calibrations and failures associated to usual water flow sensors.

The very simple configuration is done via the keyboard by selecting one of the pre-recorded configurations. Please use the installation guide provided with your system (be aware of the software number of your system!). If you have any questions about the configurations, please do not hesitate to contact us.

No matter which configuration you choose, the system is also equipped with a 230V output for an ozonator, an auxiliary 230V output (music, for example) and a 12V output which enables you to connect a light with a cable (not included).

Dimension One spa owners, your replacement system may have specific requirements. Please contact us before ordering.

Dimensions
Box width: 420 mm
Max. width with connections: 498 m
Height: 273 mm
Depth: 126 mm
Plumbing connections to heater: 2-inch (connections and o-rings included)

Technical data
Electrical supply : 230V, 50Hz. The system is delivered for a single-phase supply. Please contact us if you require a single phase supply.
4 230V AC connections on 4 male pins AMP output connectors
1 12V AC connection
3 outputs for in.link plugs: 1 main keypad connector and 2 communications link (in.stik, in.terface, in.touch2, in.clear, in.grid and in.stream2)

Compatible with the following keyboards
Main : in.k200, in.k300, in.k336, in.k8, in.k35, in.k450, in.k500, in.k600 (the simplified interface only), in.k800, in.k1000, in.k1001

Auxiliary : in.k120

Warranty
2-year Tubs Parts warranty

Part numbers
Gecko: 0610-221069-382
