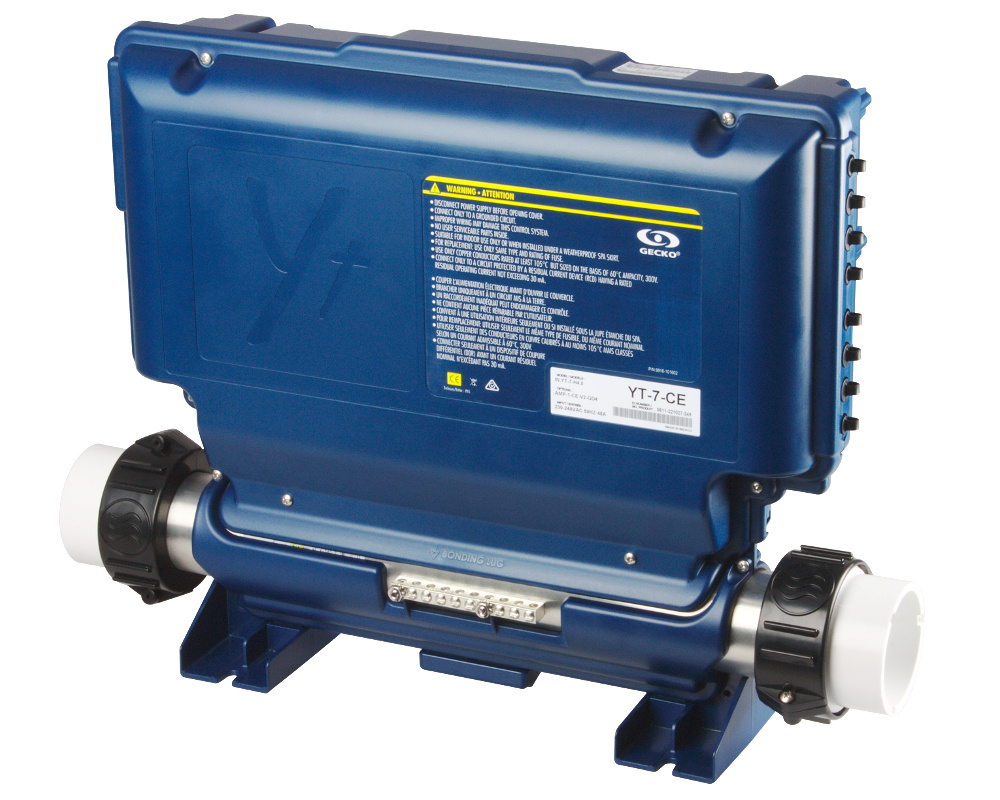

Gecko in.yt-7 control system
The in.yt-7 control system with integrated 4 kW heater is the most powerful version of Gecko's Y-series.
The in.yt-7 has 7 outputs (hence the number 7 in its name), and can therefore manage up to 7 pumps and/or blowers (bearing in mind that 2-speed pumps are classed as 2 connections). 29 different configurations are possible, ranging up to :
- 3 two-speed pumps, or 1 two-speed and 4 single-speed pumps, or 5 single-speed pumps
- a circulation pump
- a blower
- an ozonator
- a lighting system
- an audio system

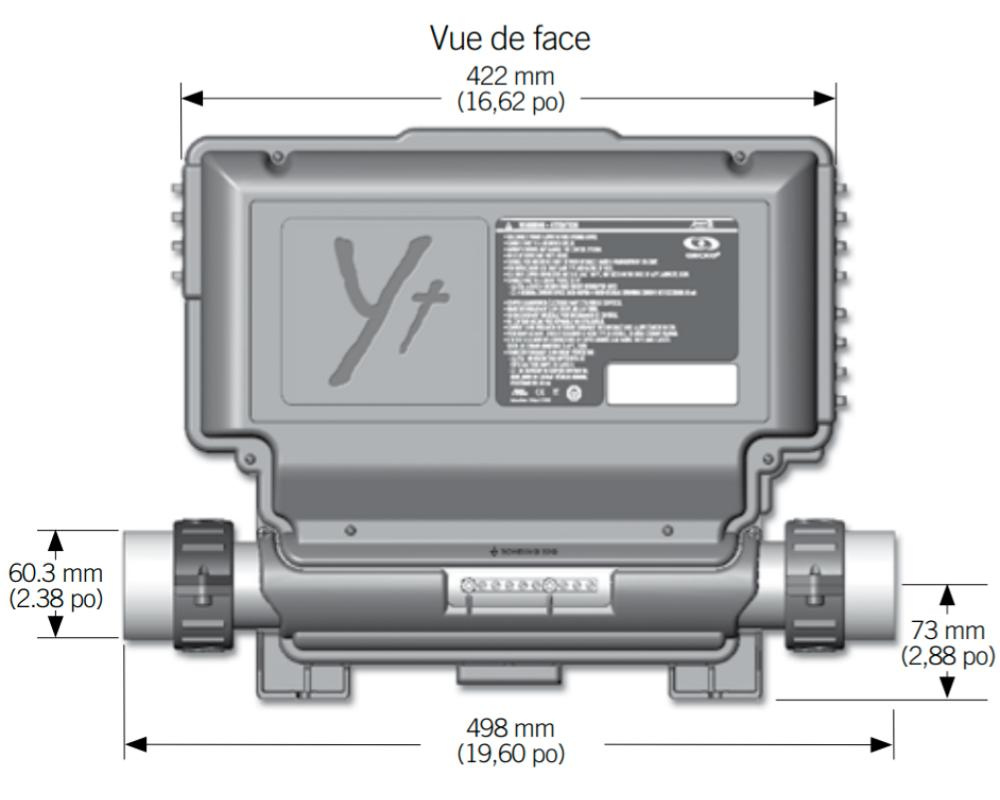

Dimensions
Box width: 422 mm
Maximum width with connections: 498 m

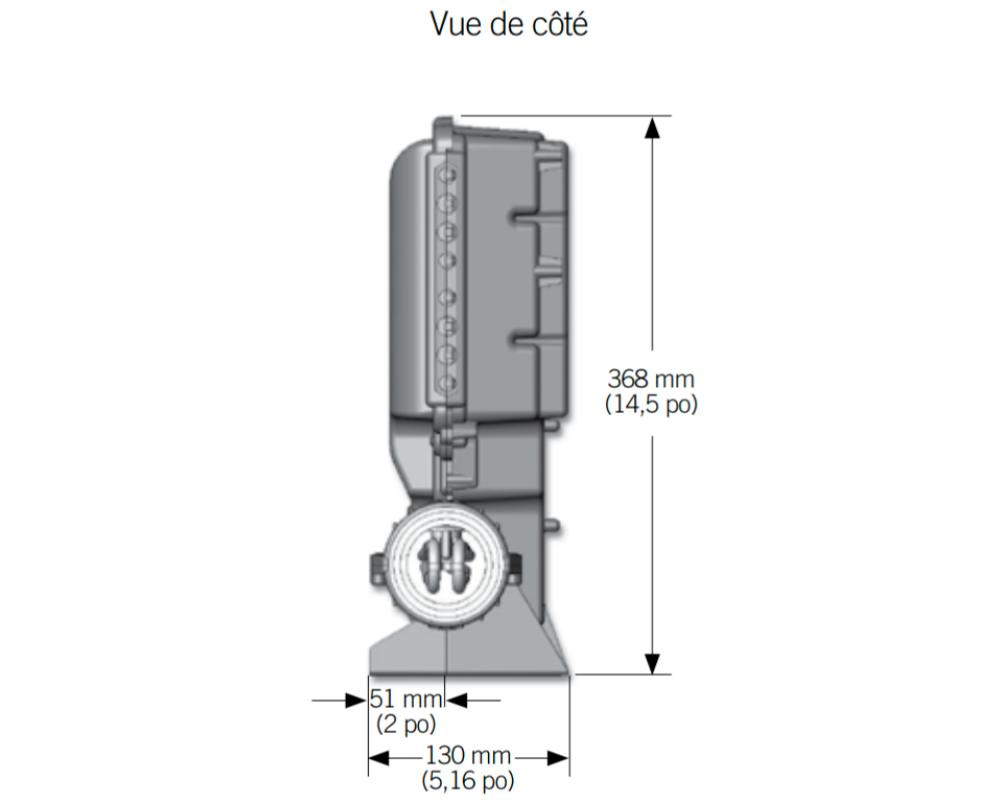

Height: 368 mm
Depth: 120 mm
Plumbing connections to heater: 2" (connections and o-rings included)
Technical specifications
Power supply: 230V 50Hz. 3 phase connection (default). For any other connection (1 phase, 2 phase or 3 phase Delta), please contact us.
8 outputs at 230V AC on 4-pin AMP plugs
1 output in 12V AC for 3-pin light harness
3 outputs for in.link plugs: 1 main keypad connector and 2 communications link (in.stik, in.terface, in.touch2, in.clear, in.grid and in.stream2)
Compatible keyboards
Main: in.k200, in.k300, in.k336, in.k8, in.k35, in.k450, in.k500, in.k600 (the simplified interface only), in.k800, in.k1000, in.k1001
Auxiliary: in.k120
Warranty
2-year Tubs Parts warranty
Part numbers
Gecko: 0611-221027-349
