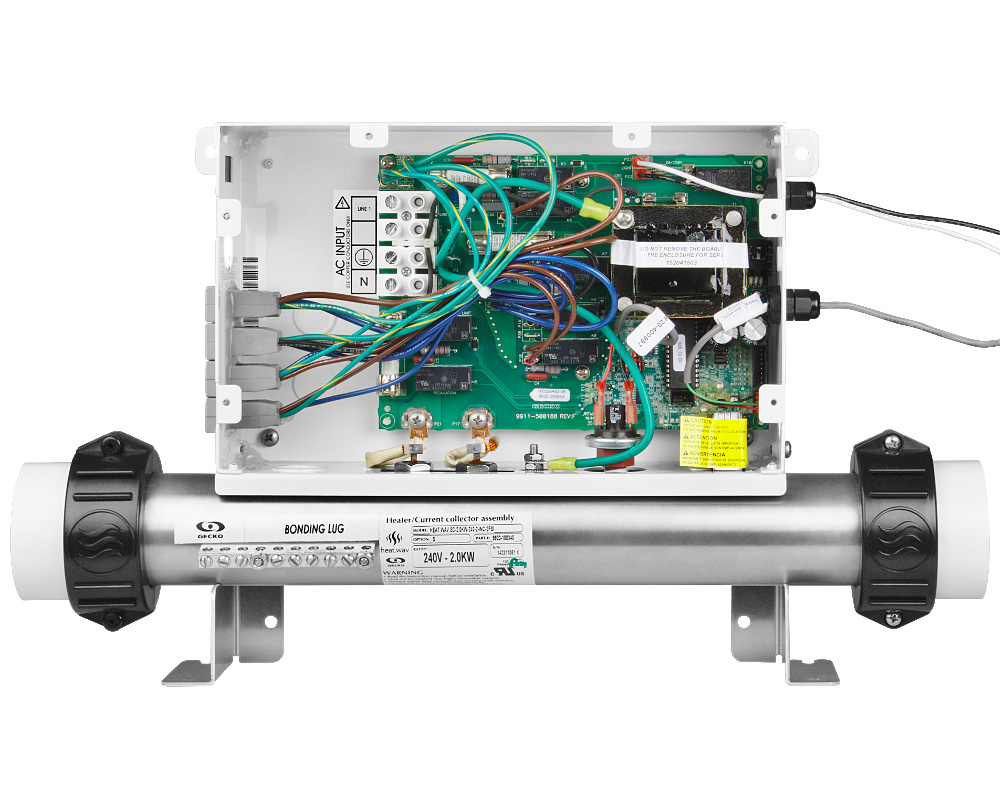

The SSPA-2 control system (or S-CLASS spa control) was used in many models of hot tub and spa.

This system supports:

  • A 24-hour circulation pump
  • One or two-speed massage pump 1
  • One-speed pump 2
  • Blower
  • A 12V spa light
  • An ozonator
The SSPA-2's 2kW heater is equipped with a pressure switch. Gecko has replaced this flow detection system with a safer and more reliable integrated dry run protection, the in.flo, on its most recent systems (X and Y series).

The various components of the spa connect to the control system using using mini J&J-style plugs.

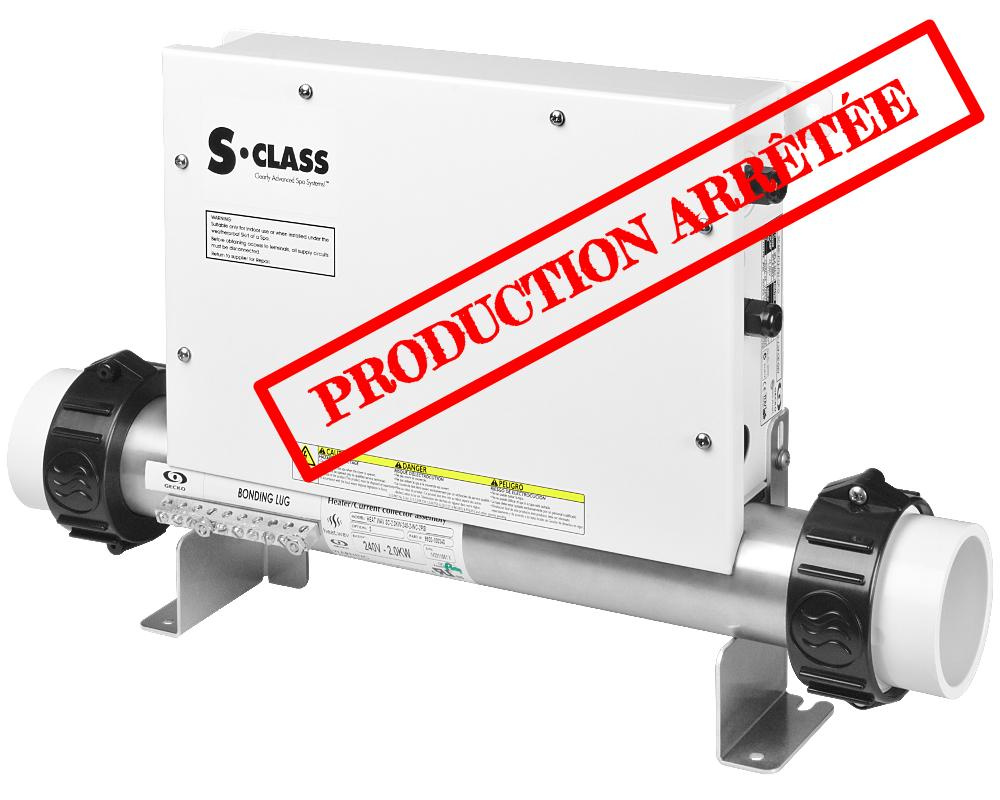

We only recommend this system when replacing an S-Class control box. For all other cases, please do not hesitate to turn to more recent systems, or to contact us.

Dimensions
Height: 290 mm
Box width: 330 mm
Heater width: 381 mm, without connections
Depth: 72 mm
Heater connection: 2-inch (unions supplied)

Compatible with the following keypads
TSC-9, TSC-18, TSC-19, TSC-35 et K-91

Gecko part numbers
2 pumps, 1 blower : 0202-201024, SC-MP-P12-P21-B-O
2 pumps : 0202-201023 (no longer available)
