HydroAir Genesis 1200W blower with pneumatic control

This Genesis blower from HydroAir is suitable for most portable spas. It is pre-equipped with a pneumatic switch and a hose, to which it is enough to connect a pneumatic push button.

To prevent water from getting back into the blower, the air hose between the blower and the spa must include a swan neck that passes over the water level, and one or two check valves. If water has entered your old blower, be sure to check the check valve and replace it if necessary. The most suitable valve for this blower would normally be that one.

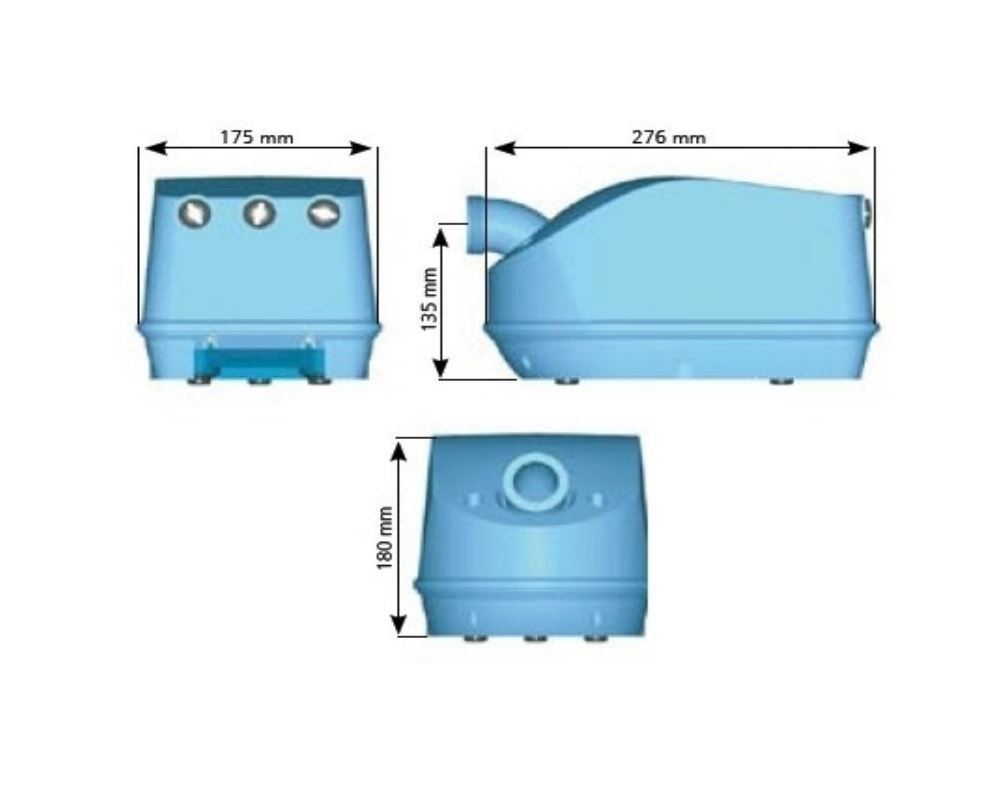

Dimensions
Length: 275 mm
Width: 175 mm
Height: 180 mm

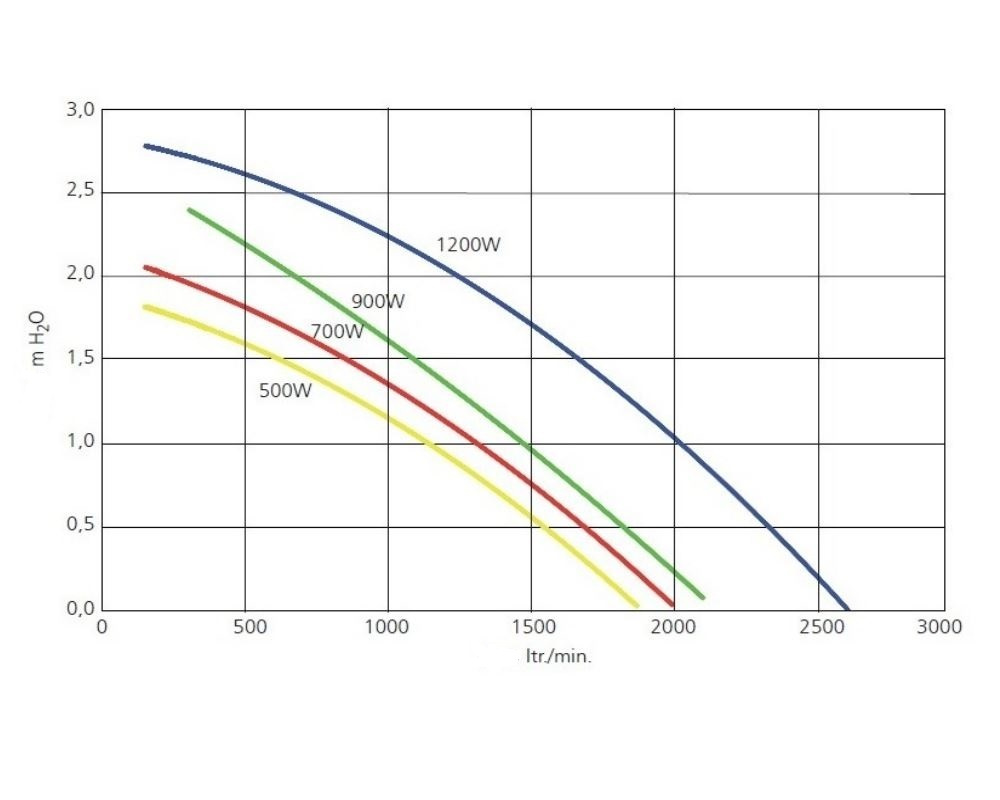

Air flow rate
See the curve in the image on the right.

Connection
The blower comes with a union for 32 mm pipe. You can also choose a 1-inch pipe union.

Cable and plug
The pump is supplied pre-cabled without plug. You can also choose to have it pre-cabled with an AMP plug or a mini J&J plug by our team.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your blower may indeed be defective for many reasons, but the power cable is rarely to blame.

Warranty
2-year Tubs Parts warranty

Note that the 2-year warranty does not apply to the carbon brush, also known as a motor brush, a graphite bonding agent that conducts the electrical current between stationary and rotating wires inside the motor. The carbon brush is a wearing part with a life expectancy of approximately 1500 hours.

Part numbers
HydroAir: G120-2AN-S
