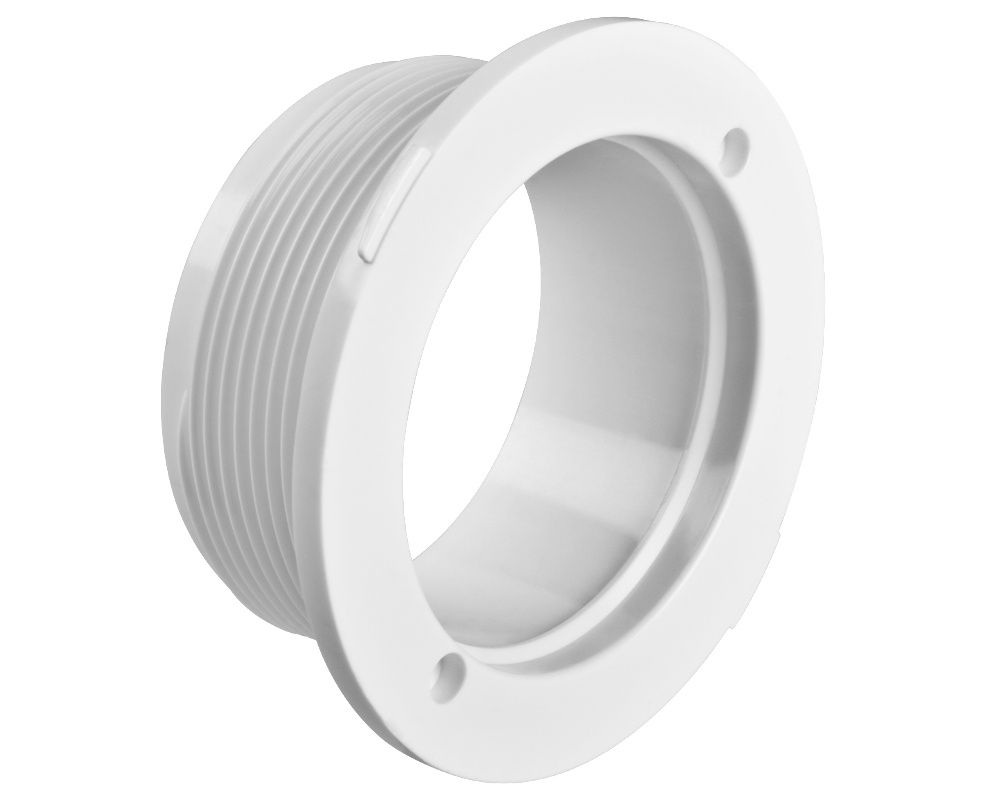

HydroAir Magna jet wall fitting

This part is screwed inside all Balboa/HydroAir "Magna" series sockets (32x32 mm and 32x50 mm). Once installed (don't forget the gasket!), it is visible from inside the spa, while the socket is mounted on the outside of the shell.

This jet wall fitting should not be mistaken for other similar Balboa / HydroAir models, as the parts are not interchangeable. Check the dimensions carefully!

Dimensions
Total diameter: 81 mm
Internal diameter: 57mm
Thread diameter: 65 mm
Thread length: 27 mm
Total length: 33 mm

Part numbers
Balboa / HydroAir : 10-4801
