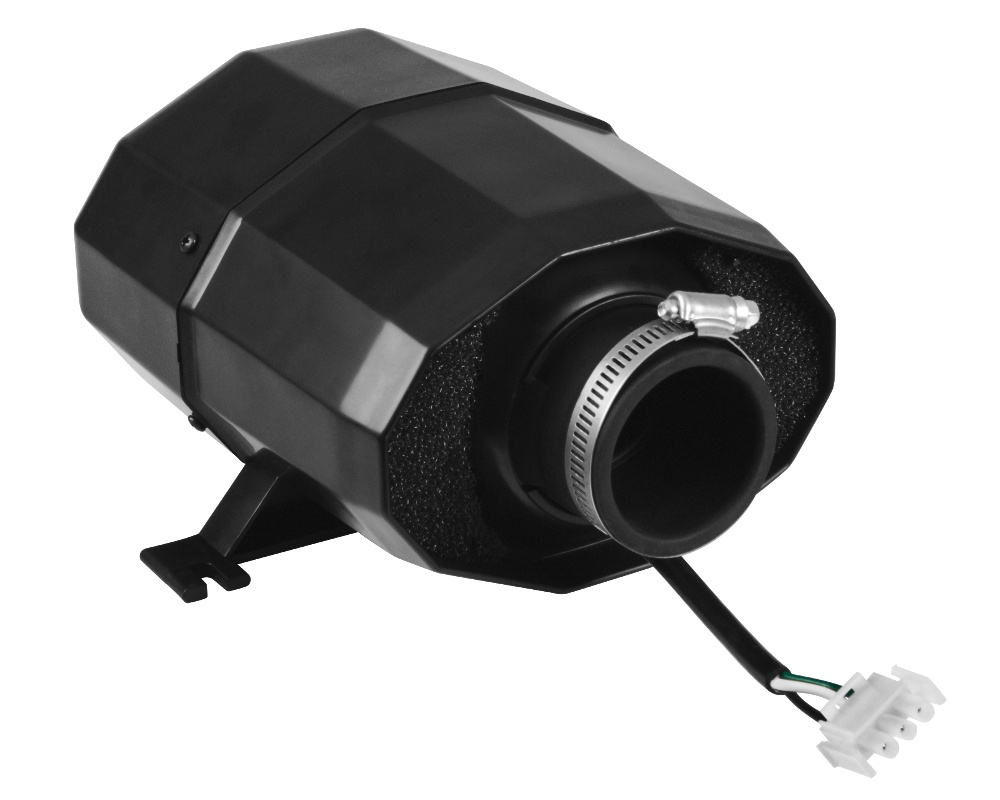

HydroQuip Silent Aire blower - 1.5 HP

The HydroQuip "Universal Silent Aire" compact blower is a suitable replacement part for almost any spa.

If your old blower stopped working because water got into it then check that the one-way valve on the air line is working correctly before installing a new one. You can replace your old one-way valve with an one-way valve.

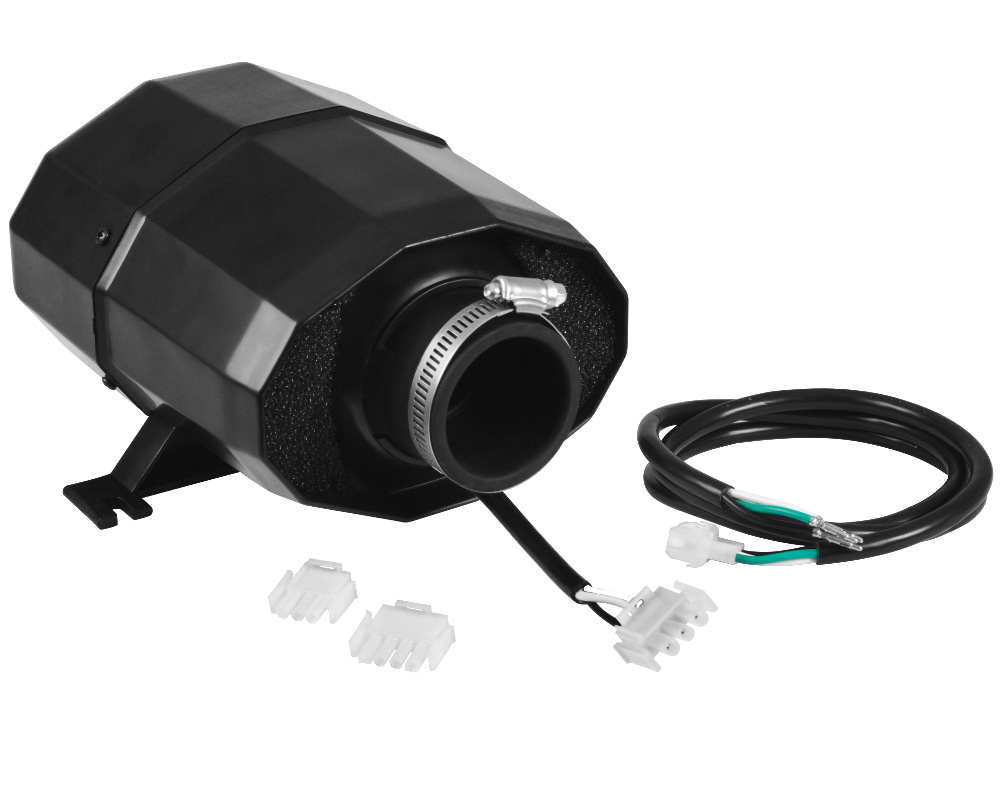

The blower is supplied with a wiring kit including one 120 cm cable and two AMP connectors (3-pin and 4-pin male).

The HydroQuip 1.0 HP blower is also available.

Dimensions
Length: 240 mm
Width: 170 mm
Height: 120 mm

Technical specifications
Power: 800W (1.5 HP)
Current: 3.1A
Voltage: 240V

Connections
Inner diameter: 48 mm (for 1.5-inch pipe)
It is not necessary to glue the hose to the blower with the supplied "Serflex" type clamp.

Cable and plug
The blower is pre-cabled with an AMP plug. An adapter is required for a Mini J&J connection.

Warranty
2-year Tubs Parts warranty

Part numbers
Blower : AS-820U, 994-56102-7C-S
Kit AMP cord : 48-0060

Plug types

AMP plug

J&J plug

in.link plug
