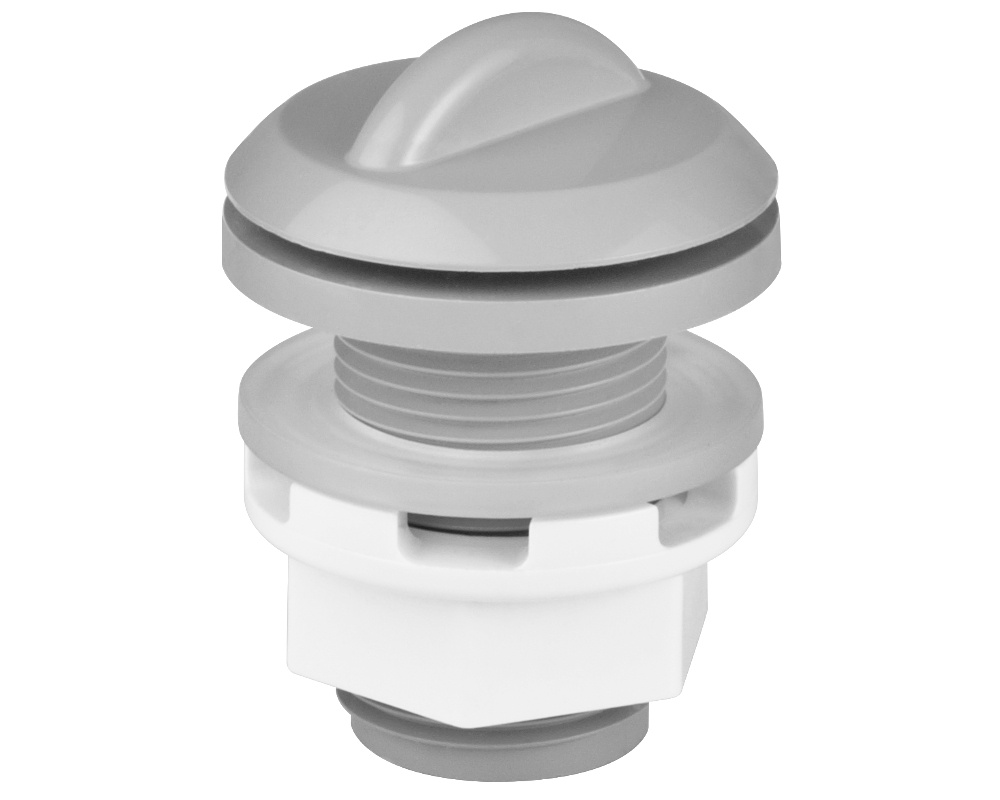

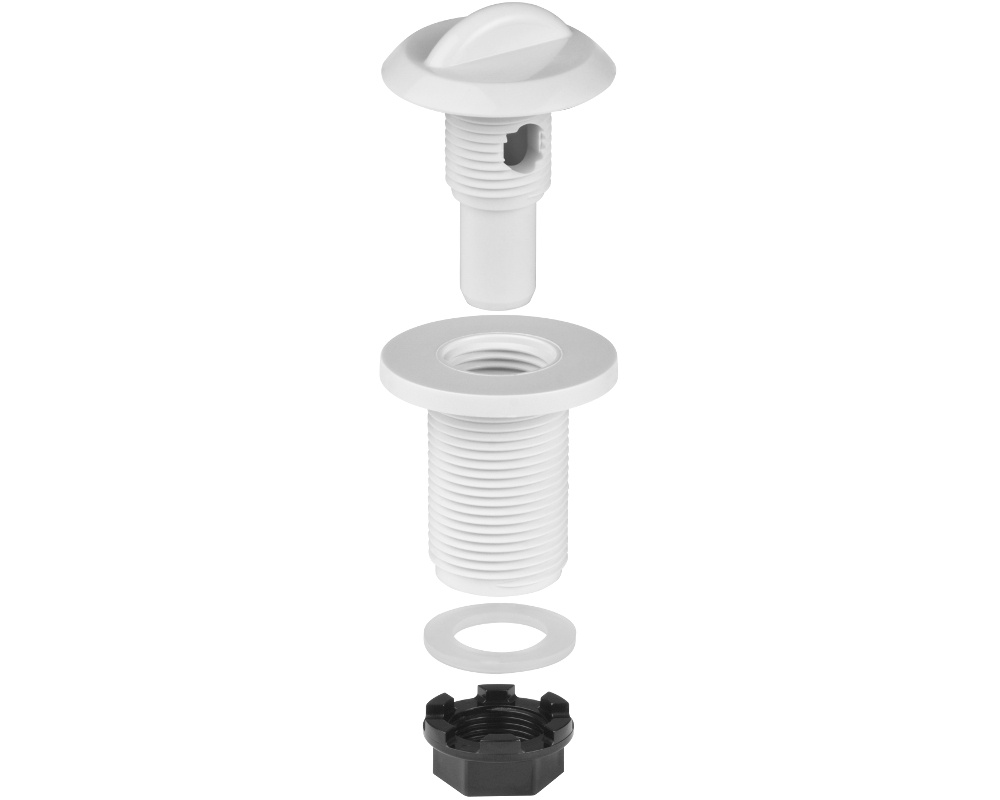

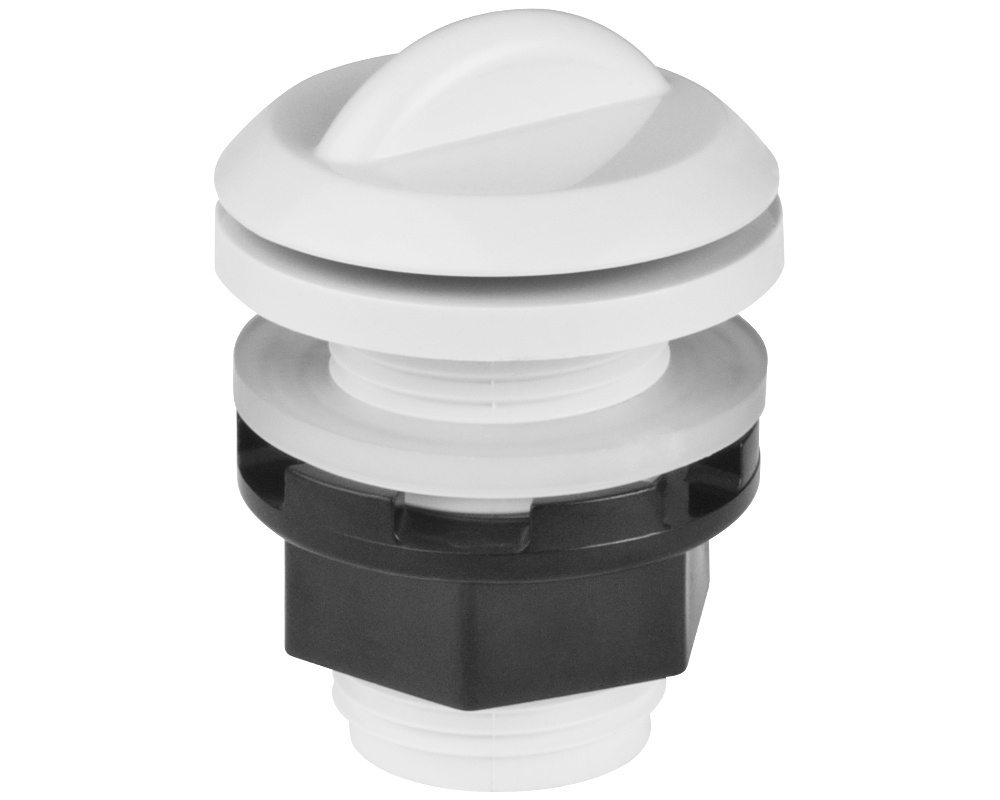

ITT 20 mm air valve

This venturi air control valve connects to 20 mm pipe. It is manufactured by ITT HydroAir.

The handle is also available as a spare part.

This type of valve is especially recommended for concrete spas, when it is necessary to use venturi valves that suck in air from the top, not from the sides (which will be embedded in concrete).

Dimensions
Inner diameter of pipe connection: 20 mm
Drill diameter: 27 to 28 mm
Length without handle: 50 mm
Outside diameter of the body screw thread: 26 mm
Outside diameter of the handle screw thread: 20 mm
Handle diameter: 43 mm

Part numbers
ITT HydroAir: 10-2200ME
