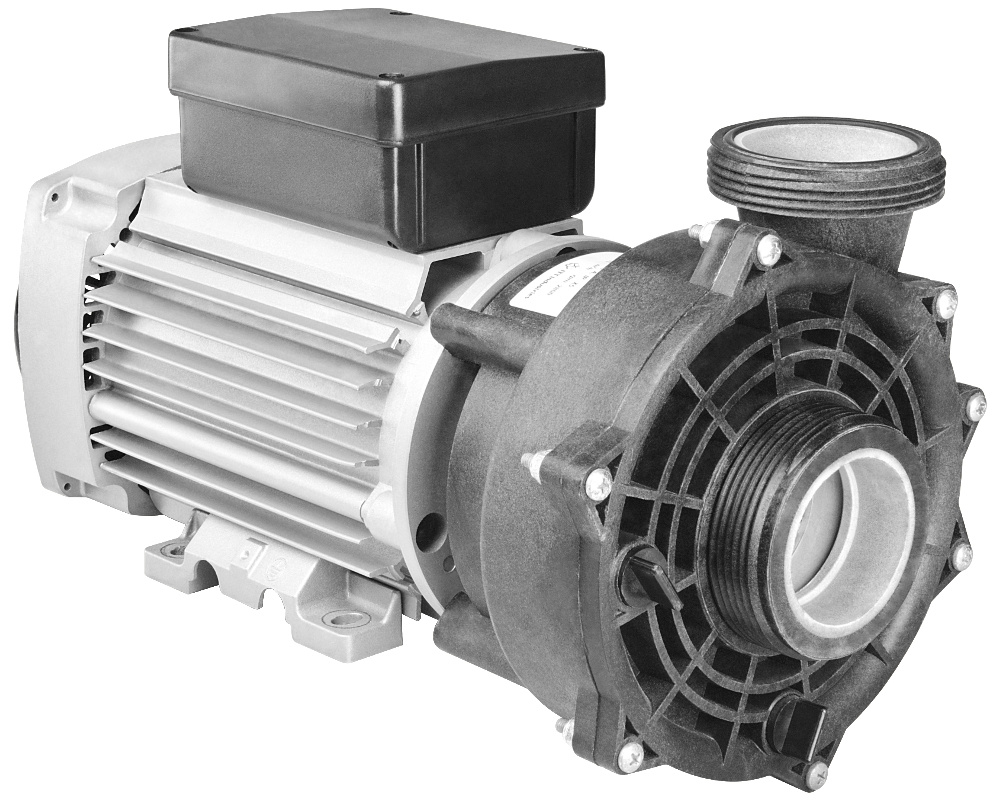

ITT HydroAir Magnaflow 440 single-speed pump

ITT HydroAir Magnaflow 440 single-speed pump - Click to enlarge
ITT HydroAir Magnaflow 440 single-speed pump - Click to enlarge
ITT HydroAir Magnaflow 440 single-speed pump - Click to enlarge

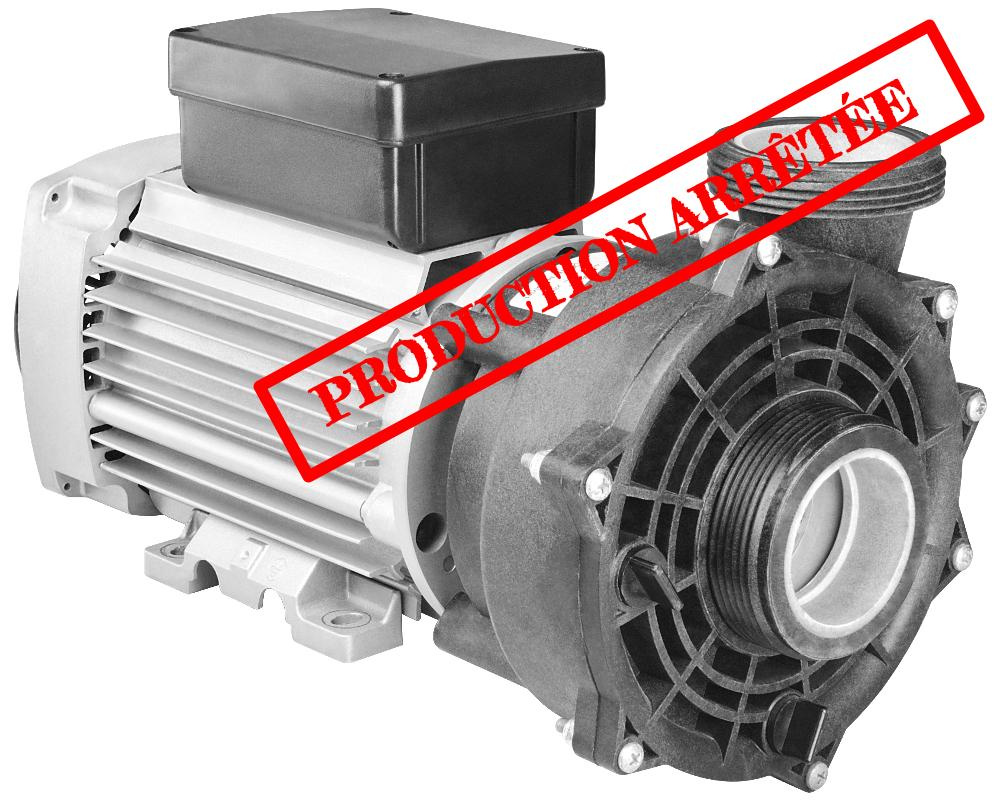

The ITT HydroAir Magnaflow 440 single-speed pump was widely used on European-made spas. Its production was discontinued in about 2010.

It is now replaced with the HydroAir HA440, which has different size connections and doesn't fit directly.

Dimensions (without pump unions)
Length: 360 mm
Height: 212 mm
Width: 178 mm

Technical specification
Power high speed: 1.5 kW (2 HP)

Connections
The ITT HydroAir Magnaflow 440 pump fits the grey 3-inch wet end
In the case of replacement by the HydroAir HA440 pump, an adaptation of the piping will be necessary, as this model is connected with 2-inch pipes.

Part numbers
HydroAir ITT : 20-4409V2, 20-44091V2
