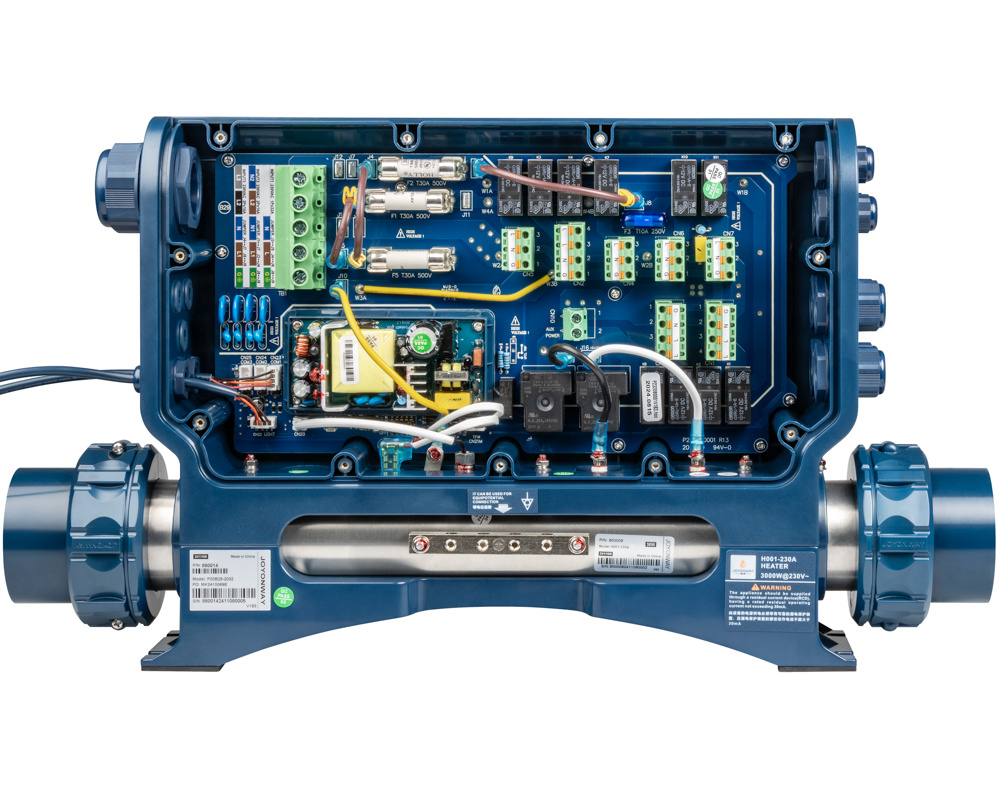

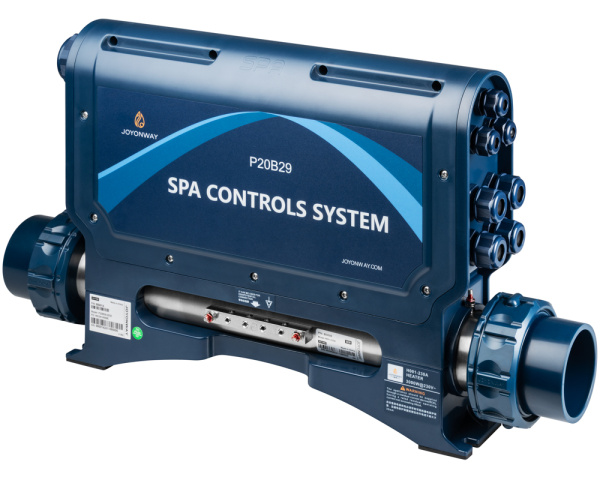

Joyonway P20B29 control system

The Joyonway P20B29 control system can operate up to four massage pumps and a blower, making it ideal for spas with multiple components.

It is notably found in some models from Passion Spas and Fonteyn.

Compatible with PB553, PB554, and PB555 keypads, it features a 3 kW heater and is suitable for replacing an identical model, upgrading an existing installation (which also requires a new keypad), or integrating into a new setup.

It can manage:

• A circulation pump
• Three single- or dual-speed massage pumps
• A fourth single-speed massage pump
• A blower
• An ozonator
• A light projector
• An auxiliary outlet

Dimensions
Height: 360 mm
Width: 280 mm
Depth: 82 mm
Heater connection: 2 inches (clamping rings and seals included)

Power supply
The P20B29 system is delivered pre-configured for a single-phase power supply. It can also be configured with a three-phase power supply (purely so that you can distribute the load between the phases ; the system only has single-phase outputs). If you have additional questions, please refer to the user's manual or contact us when placing your order, and we will take care of the configuration before sending the system.

Compatible with the following keypads
PB553, PB554, PB555

Warranty
2-year Tubs Parts warranty

Part numbers
Joyonway: P20B29
