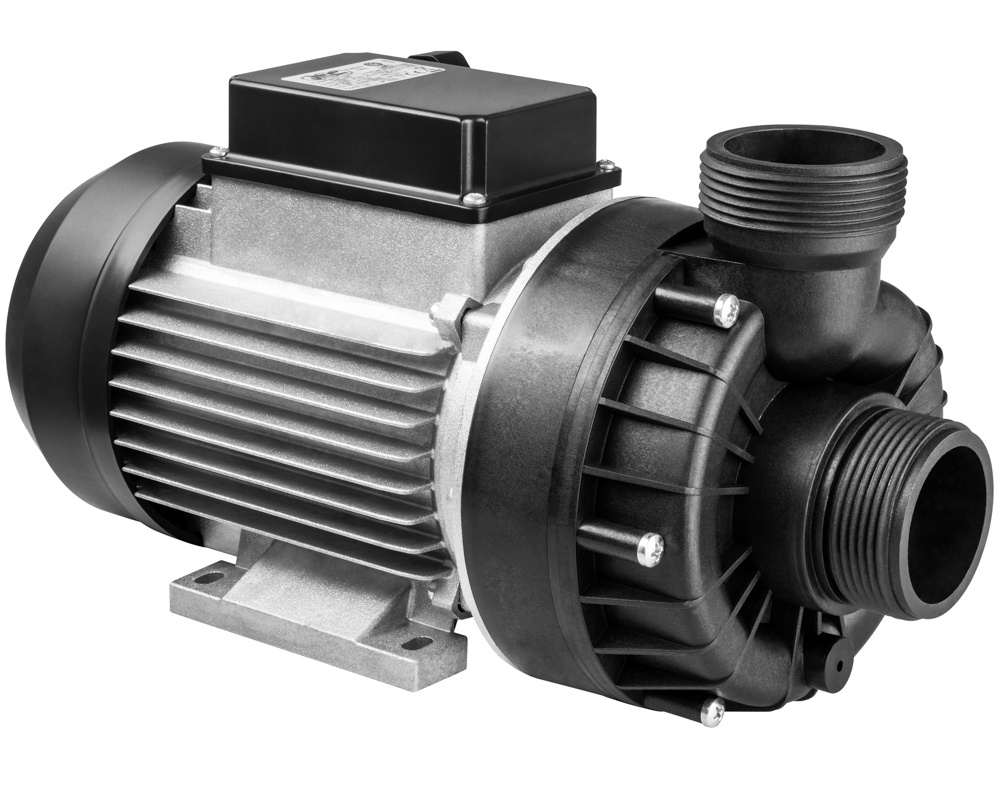

JTC PCF120 single-speed pump

Pumps from Italian manufacturer JTC can be found on many European brand spas. The PCF120 single-speed pump is used for massage jets.

We also supply the JTC PCF100 pump with the same dimensions and a power rating of 1.1 kW.

Technical specifications
Power: 1,2 kW (1,5 HP)
Rotation speed: 2800 rpm
Maximum flow: 440 litres/minute

Dimensions
Length: 364 mm
Width: 160 mm
Hight: 219 mm

Connections
Suction: 62 mm male thread (type MBT 1.5") for standard 1.5" connection
Discharge: 62 mm male thread (type MBT 1.5") for tee connection with 1” outlets
The PCF100 pump is supplied with a tee fitting, a standard fitting and a set of gaskets.

Cables and plugs
The JTC PCF120 pump is available pre-cabled without a plug. You can have it pre-wired by us with a AMP plug (length 130 cm) or a mini J&J splug.
A in.link plug is also available, but we recommend that you re-use your old cable if it's in good condition. Your pump may indeed be faulty for many reasons, but the power cable is rarely to blame.

Warranty
2-year Tubs Parts warranty

Part numbers
JTC: PCF120
