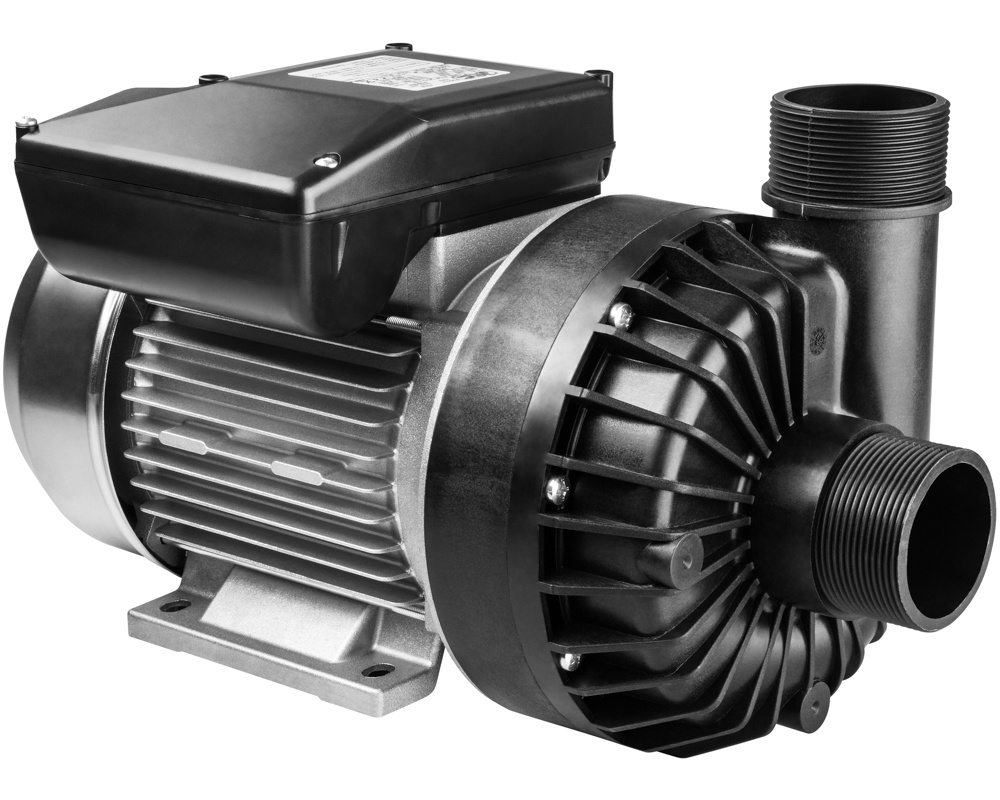

JTC PCF200 TS two-speed pump

Pumps from Italian manufacturer JTC can be found on many European spas. This two-speed pump has a slow speed for filtration and heating, and a fast speed that runs the massage jets.

We also stock other JTC two-speed pumps from the same series including the 2,4HP with a slightly more powerful motor and the 2,96 HP, as well as the single-speed 2,96 HP and 2,9 HP models.

Dimensions
Length: 375 mm
Width: 180 mm
Height: 215 mm

Technical specifications
Power high speed: 1,8 kW / 2,4 HP
Power low speed: 0,38 kW / 0,51 HP
Current high speed: 8.3 A
Current low speed: 2 A
Maximum flow rate: 620 liters/minute

Connections
Outflow and intake: male threaded with a 78 mm outside diameter (2-inch MBT).
The pump unions are included. This pump is normally connected to a 2-inch pipe.

Cables and plugs
The JTC PCF200 TS two-speed pump is delivered pre-cabled without plug. (length 3 m). You can choose to have it pre-cabled by our team with an AMP plug or a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Warranty
2-year Tubs Parts warranty

Part numbers
JTC: PCF200 TS
