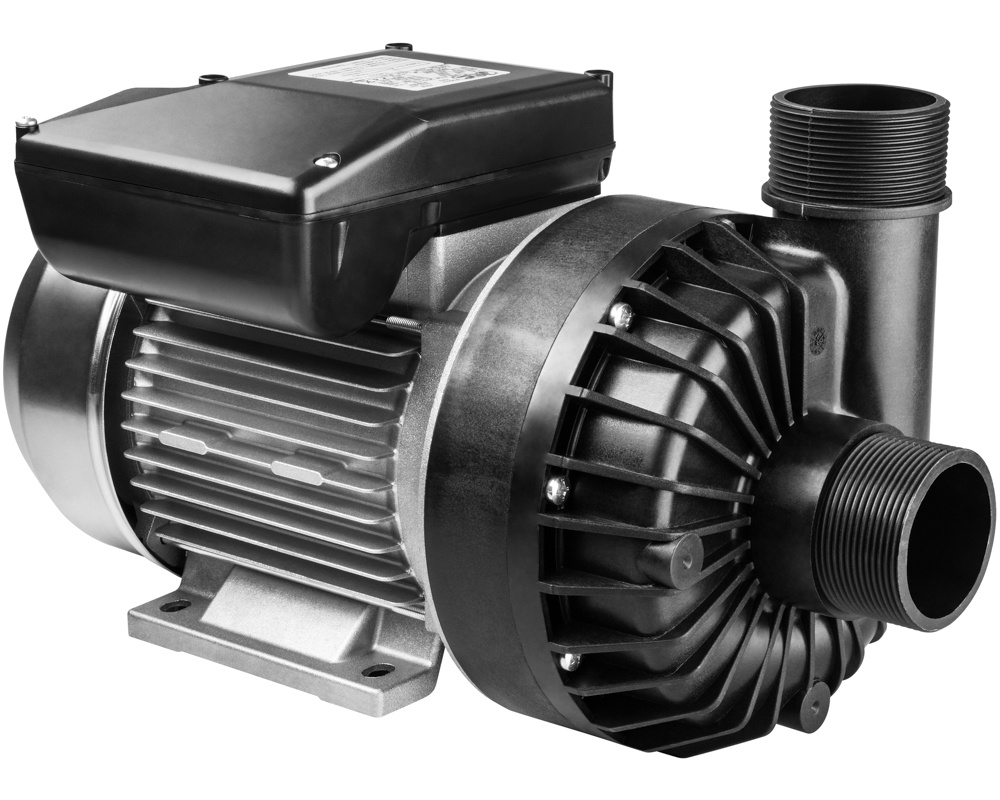

JTC PCF200M single-speed pump

JTC pumps can be found on many European brand spas. This single-speed pump is used for massage jets.

We also offer another JTC single-speed pump with a motor power of 2.9 HP, as well as the two-speed versions 2.4 HP, 2.4 HP slightly more powerful and 2.96 HP.

Dimensions
Length: 375 mm
Width: 180 mm
Height: 220 mm

Technical specifications
Power: 2,2 kW (2,96 HP)
Current: 10,5 A

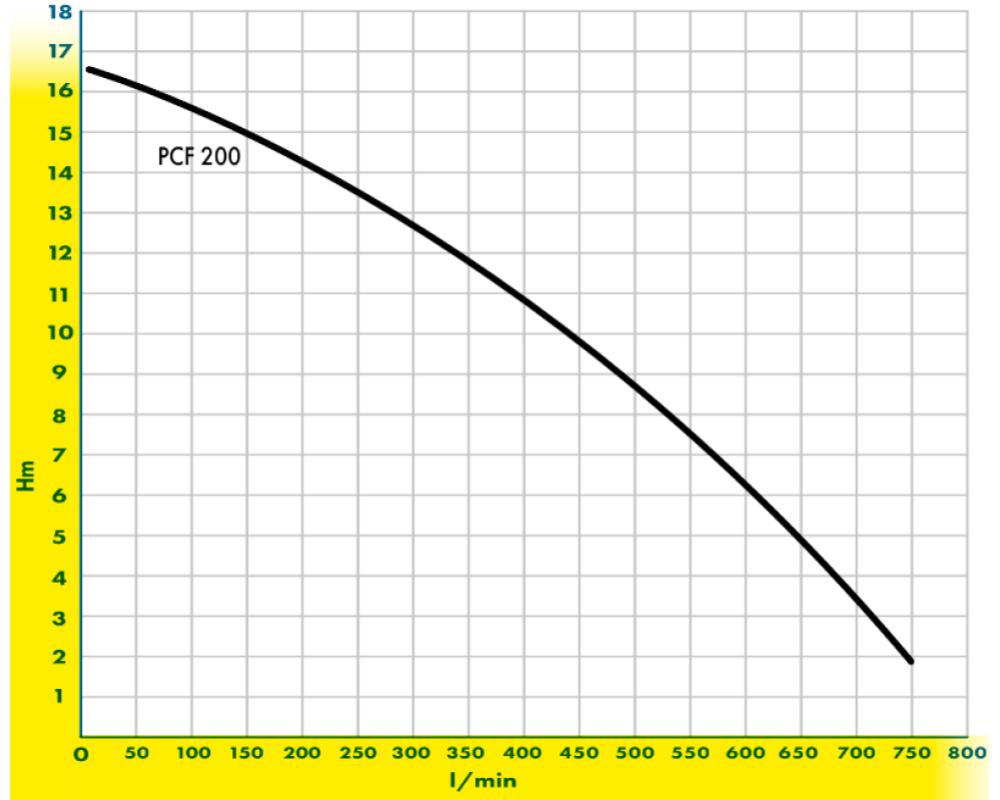

Maximum flow rate: 770 litres/minute

Connections
Outflow and intake: male threaded with a 78 mm outside diameter (2-inch MBT).
The pump unions for 2-inch pipes are included.

Cables and plugs
The JTC PCF200M single-speed pump is available pre-wired without a plug. You can choose to have us pre-wire the pump with an AMP plug or a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Warranty
2-year Tubs Parts warranty

Part numbers
JTC : PCF200M
