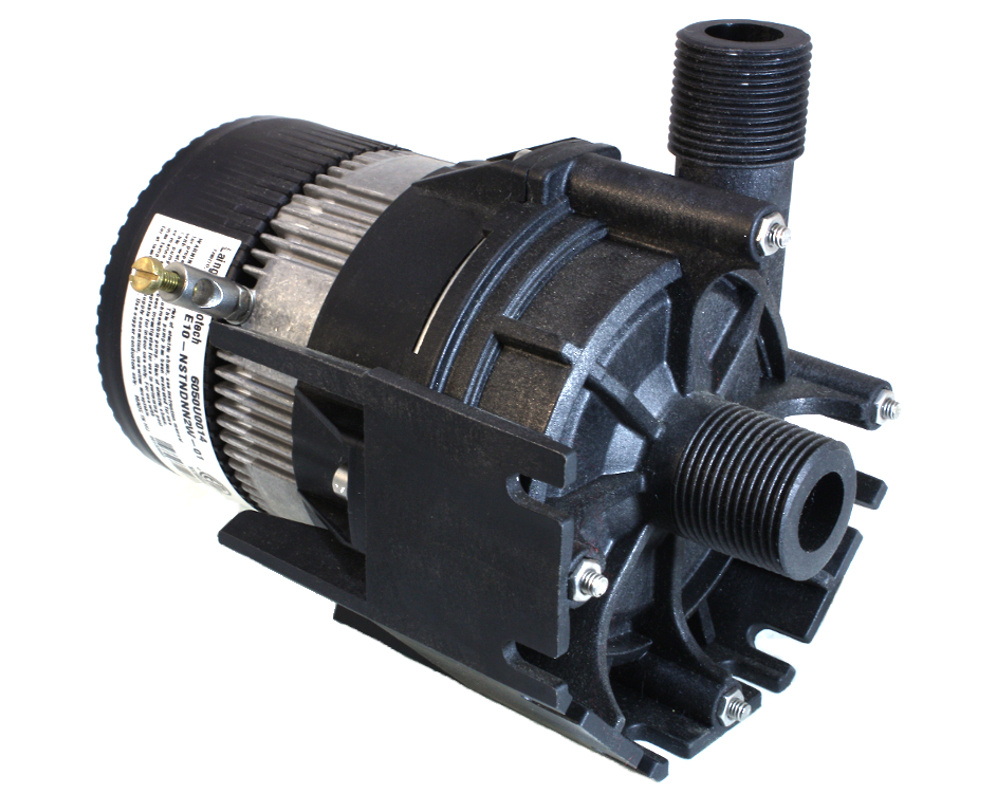

Laing E10 pump, 3/4" MPT connection

Only 2 in stock
345,00€
incl. 20% VAT
Cable and plug
Quantity:
Laing E10 pump, 3/4" MPT connection - Click to enlarge
Laing E10 pump, 3/4" MPT connection - Click to enlarge
Laing E10 pump, 3/4" MPT connection - Click to enlarge
Laing E10 pump, 3/4" MPT connection - Click to enlarge

The E10 circulation pump by Laing (Xylem) is used by major spa manufacturers like Dimension One, Sundance and Hot Spring. It is designed to run 24-hours per day. This clever little pump has no spindle, so it is almost impossible for the water to leak from the wet end into the motor.

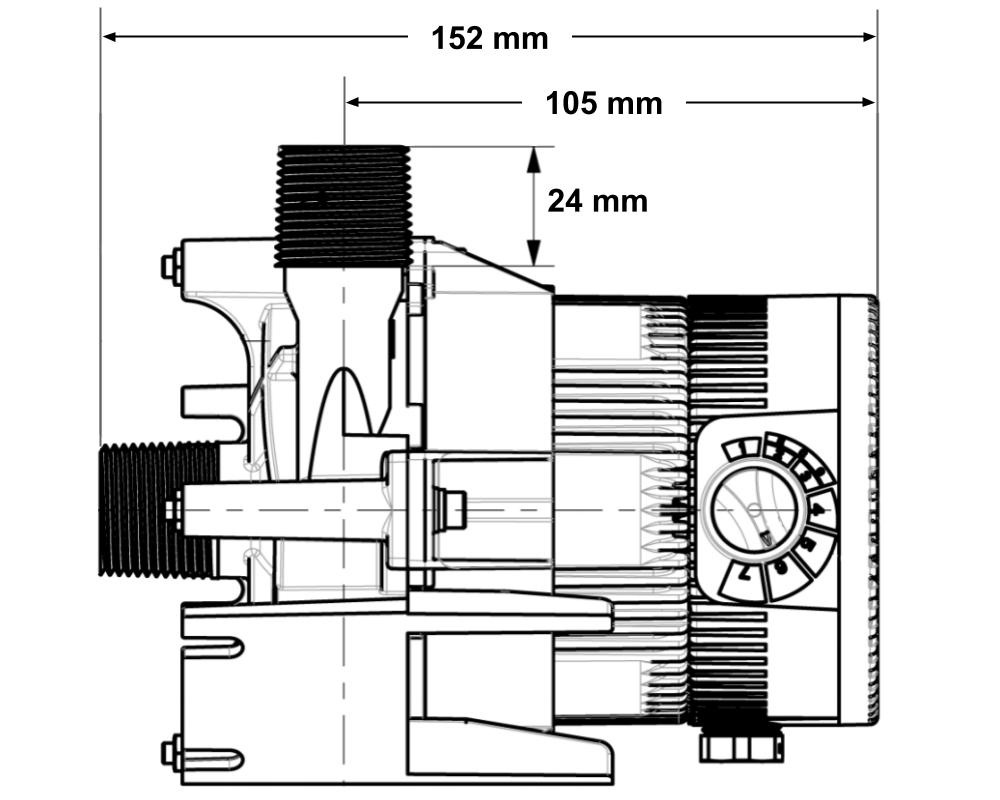

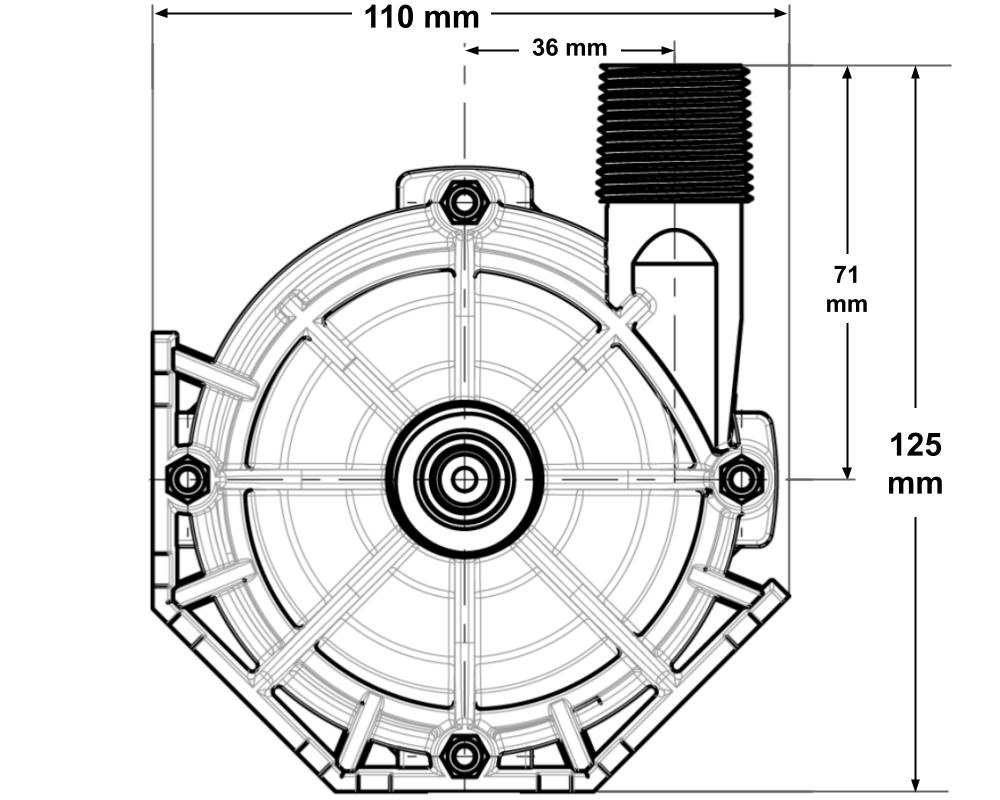

Dimensions
Length: 152 mm
Width: 110 mm
Height: 125 mm

Technical specifications
Power: 71W
Maximum flow rate: 40 litres/minute

Pipe connections
3/4-inch MPT thread

Cable and plug
The pump is supplied pre-cabled without plug (length 110 cm). If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.

You can also choose to have it pre-cabled by our team with an AMP plug or a mini J&J plug.

Spare parts
The only replacement part of the Laing E10 pump is the rotor assembly (Ø 80 mm). Be careful not to confuse it with the Ø 68 mm version. Check the diameter of the part you want to replace!

Warranty
2-year Tubs Parts warranty

Part numbers
Laing: 73999, E10-NSTNDNN2W-01, E10-NSTNNN2W-20

Documentation

Plug types

AMP plug

AMP plug

J&J plug

J&J plug

in.link plug

in.link plug
