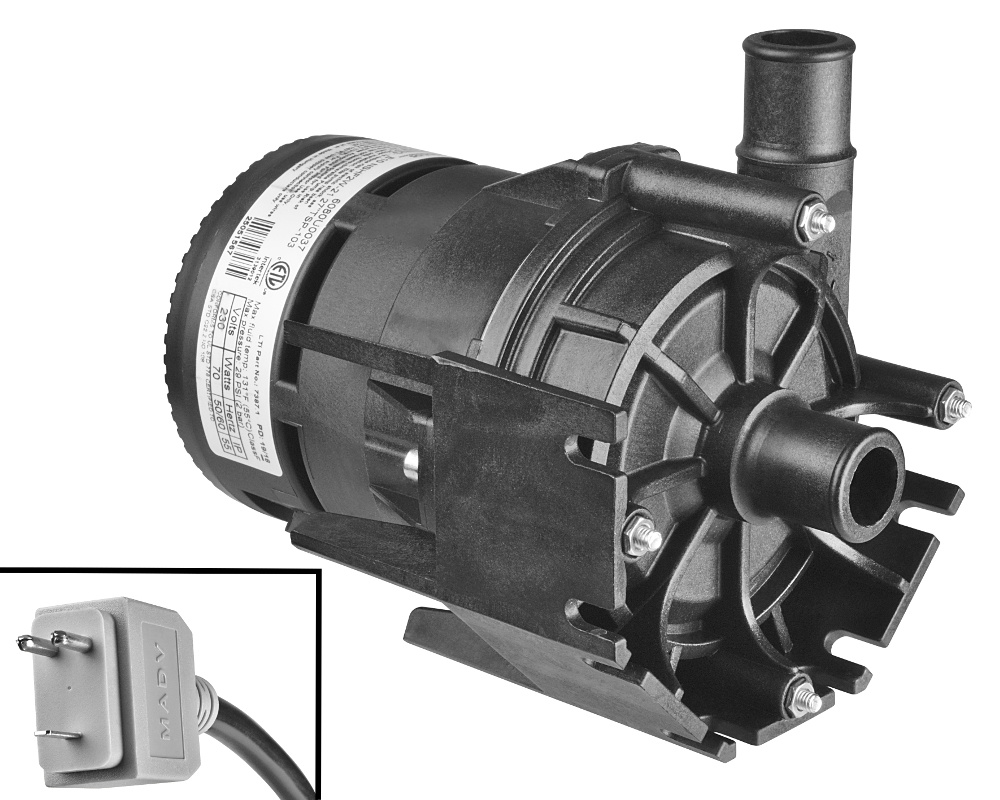

Laing E10 pump for Dimension One with Flow Switch and J&J plug

This pump is a special version of the Laing E10. It is quieter and slightly more powerful. It includes both dry run protection and an integrated flow switch.

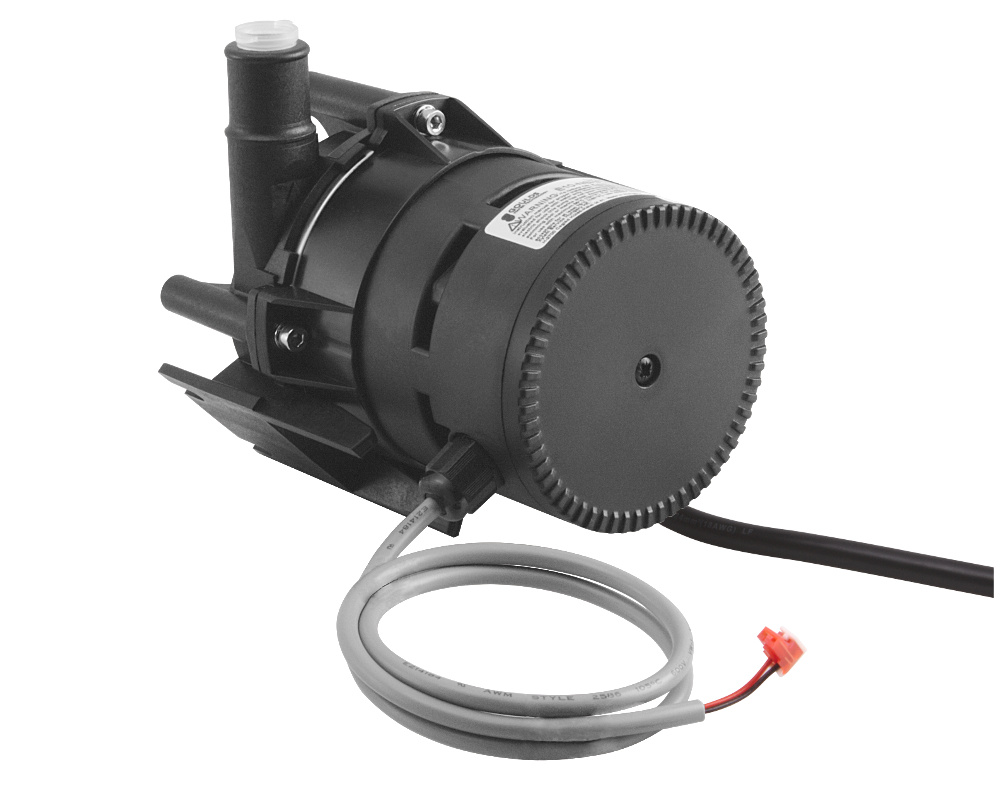

It is equipped with a small control cable and a power cable with a specific J&J plug (see picture 2).

The body of the pump is completely separate from the motor, and the absence of a mecanical seal and a turbine reduces the risk of leakage and wear.

The control cable has a 2-pin connector. An adapter allows a 3-pin connection if required.

Dimensions
Length: 152 mm
Width: 110 mm
Height: 125 mm

Technical specifications
Power rating: 70W
Flow rate: Approx. 40 litres/min

Connections
Discharge and suction: male nozzles with an outside diameter of 21 mm, which fit into a 3/4-inch flexible hose
Do not stick the hose to the pump: it is held in place with a collar

Cable and plug
This pump is delivered pre-cabled with a specific J&J plug (length 40 cm). It is also available with a AMP plug.

Warranty
2-year Tubs Parts warranty

Part numbers
Laing: 10-0121F-K
