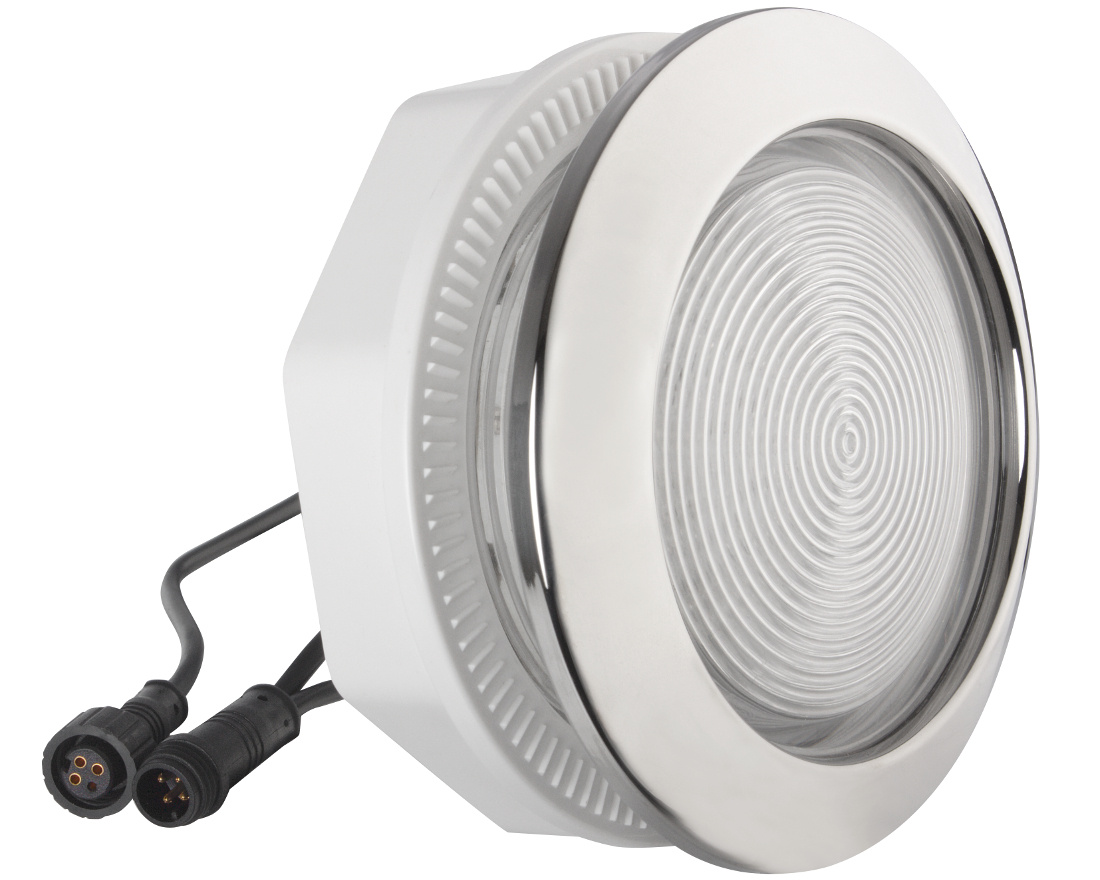

LVJ 5" underwater light

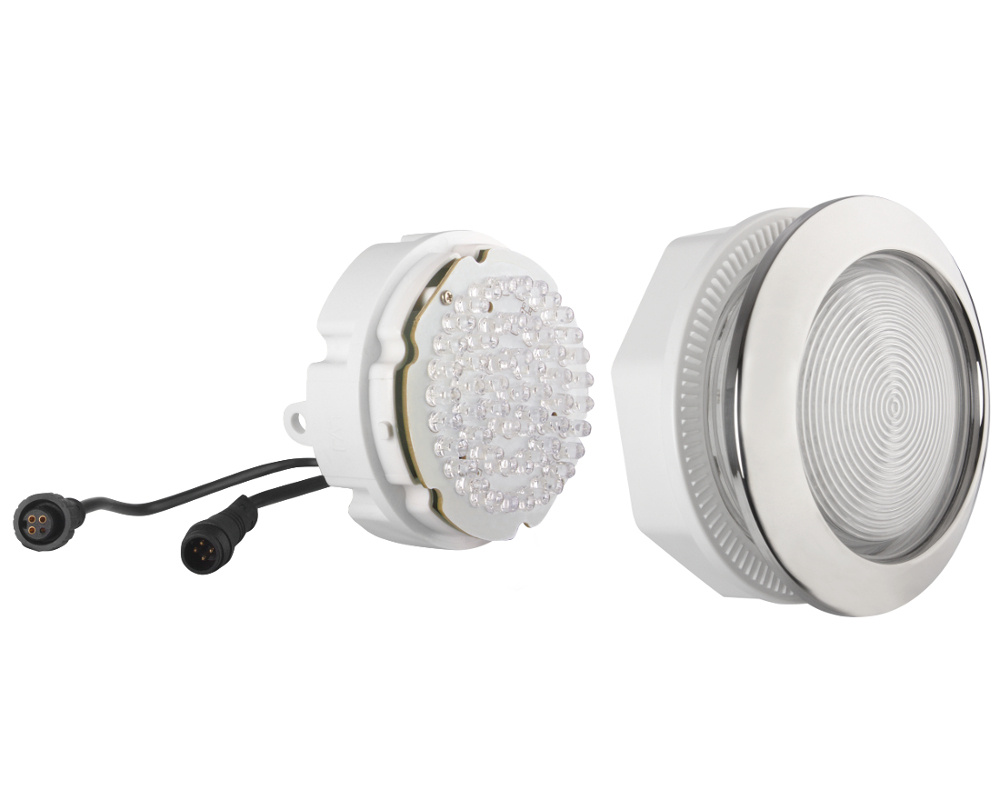

This LVJ kit combines an underwater light fitting and a multi-color bulb. It comes with a gasket and fixing nut.

The 55 LEDs in the bulb project a lightshow onto the shell of your spa to create various ambiances, ranging from relaxing to disco, adding charm to your hot tub experience. LED light intensity varies depending on the color, size and depth of your spa. The colors in the bulb are green, yellow, red, purple, deep blue, orange and light blue.

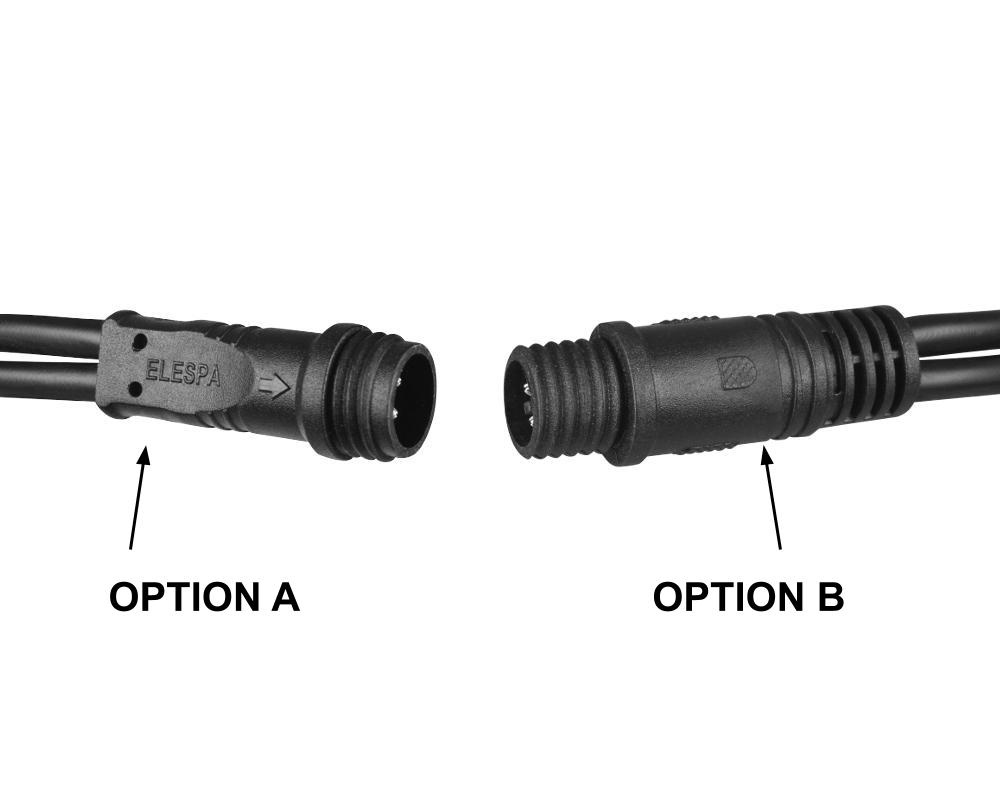

Connections (see photo 3)
LVJ has modified the wiring of its DIN sockets, check your current socket if it is a replacement!

• Option A: DIN socket with flat end, to be connected to an LVJ controller with 2 outputs Option A
• Option B: DIN socket with round end, to be connected to an LVJ controller with 1 output or with 2 outputs Option B. A daisy-chain connection with a 2.5" light assembly or cables with 1 LED is then possible.

Dimensions
Front panel diameter: 127 mm
Hole diameter: 92 mm

Technical data
Electrical connection: 12V DC
Maximum current: 3 A

References
LVJ: L-2301
