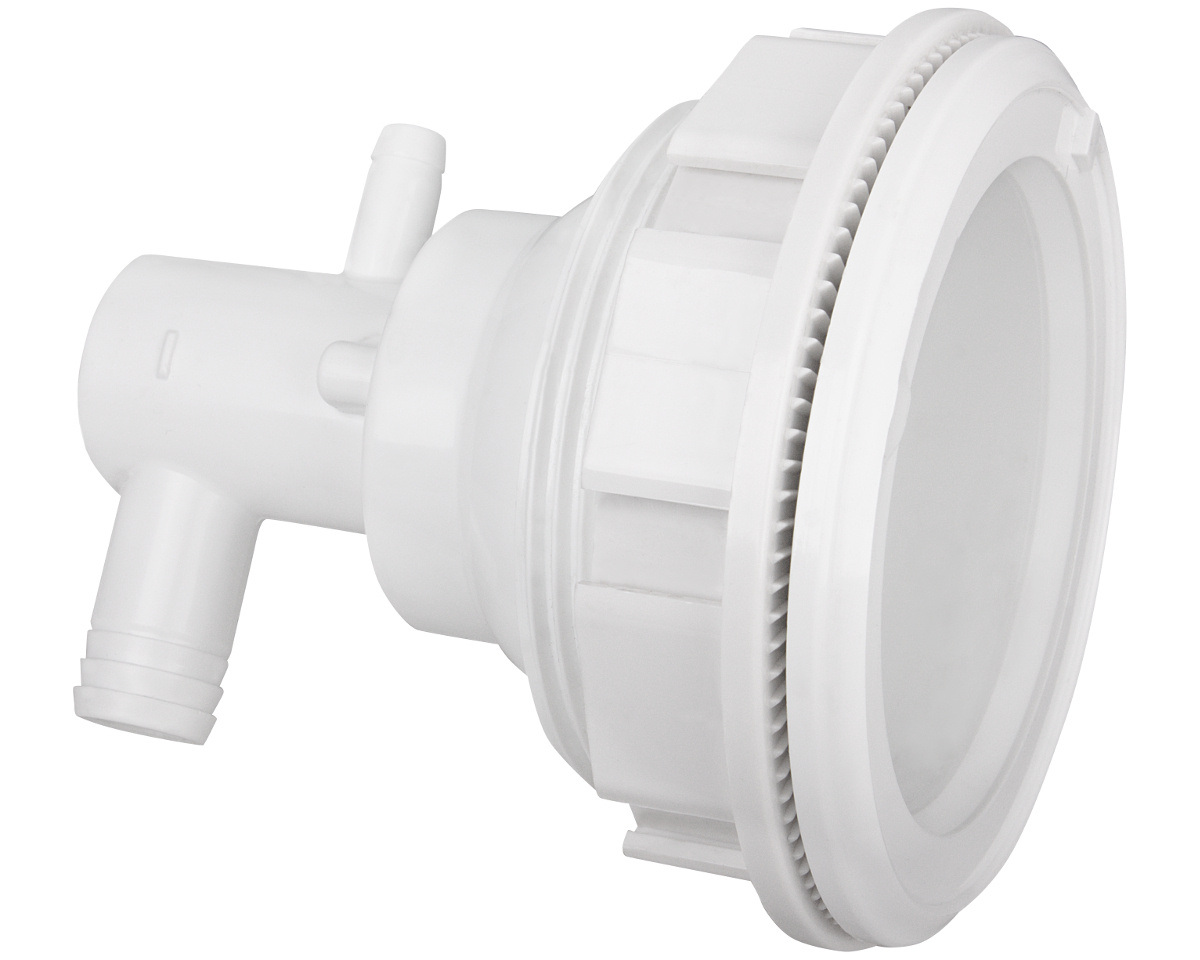

LVS 5" jet socket

All LVS 5" spa jets fit into this socket. The jet socket is the fitting attached to the spa (inside and outside of the spa wall), which holds the jet in place. The fixing nut and the gasket are included.

The threaded adaptor is available as a spare part.

The flow of water through the socket sucks in air by the Venturi effect, thereby adding bubbles to your spa jet.

In order to manage the water and the air flow through the jets, the air nozzle is connected to a normal manifold et then on to a valve. If you do not want to have bubbles through the water jets, just close the air nozzle with a 3/8" plug.

Dimensions:
Intside diameter: 85 mm
Outside diameter: 120 mm
Outside diameter of the thread: 93 mm
Length: 131 mm

Plumbing connections
Water: 3/4" flexible
Air: 3/8" flexible

Part numbers
LVS: L-1700-01
